7 Inch Rear View Camera Monitor/Screen (4 PIN Connection)

7 inch Rear View Camera Monitor/Screen (4 PIN Connection)

These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

U Bracket included. You can change the bracket to either CVC-M-BR01 or CVC-M-BR05  ball joint swivel brackets.

Product Specifications

Screen Size: 7 inch

Resolution: 800 x 480

Screen Luminance: 450CD

Contrast: 500:1

View angle range: U:50/ D:60/ L/R: 70

Video/Audio: Supports 3 CH video input, 2 Channels aviation plug supports video/audio, 1 Channel RCA Input

Video format: CVBS/ PAL/ AUTO NTSC

Working Voltage: DC 10.8-36V

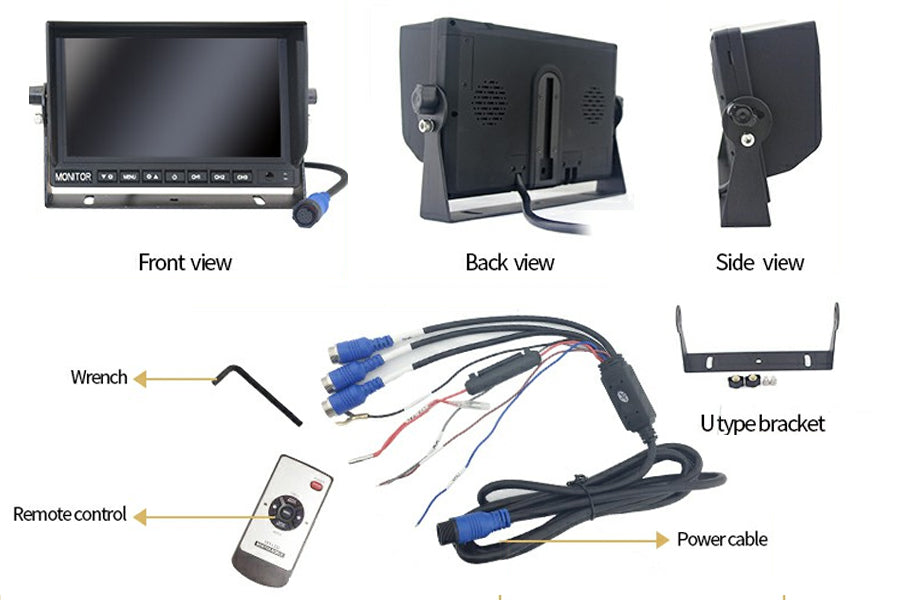

Bracket: U shaped bracket

Wire Plug: 2 X RCA Plug

OSD menu features: Switch parking guide lines, Mirror/ Non-mirror image view switch, Reverse time delay 0-10 Seconds, Different language options, Adjust video effects, Adjust volume
