Add a Camera to OEM Ford Mondeo (2014-2022) With Sync 2.5 Tablet (Sync3 light/R5) Version or Sync Connected Radio 4"

Suitable for select Ford vehicles 2018 on with 32 pin SQUARE CONNECTOR.

with Sync Connect  4inch or Sync 2.5 (Sync3 light /R5) Tablet version.  6.5/7/8 inch

Normally not for vehicles with Navigation ( these have Sync 3 full version)

PLEASE CHECK LONG DESCRIPTION FOR FURTHER DETAILS

Sync3 light  is sometimes referred to as SYNC 2.5 although this is not recognized by Ford. The best way to find out if it is SYNC is to look up the Software version in the settings menu.

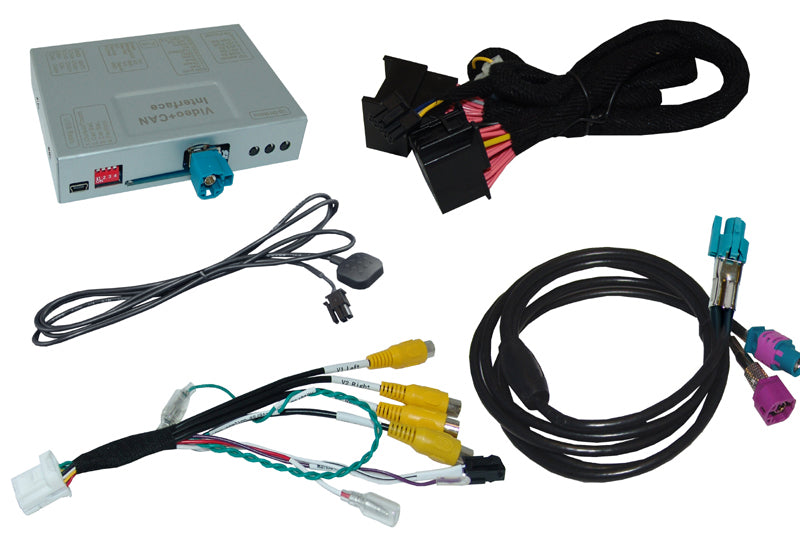

Interface Features

• Video-inserter for factory-infotainment systems
• 1 CVBS Input for rear-view camera
• 1 CVBS Input for front camera
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Activatable parking guide lines for rear-view camera (not available for all vehicles)
• Activatable PDC (not available for all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible

What is SYNC and  SYNC 2.5

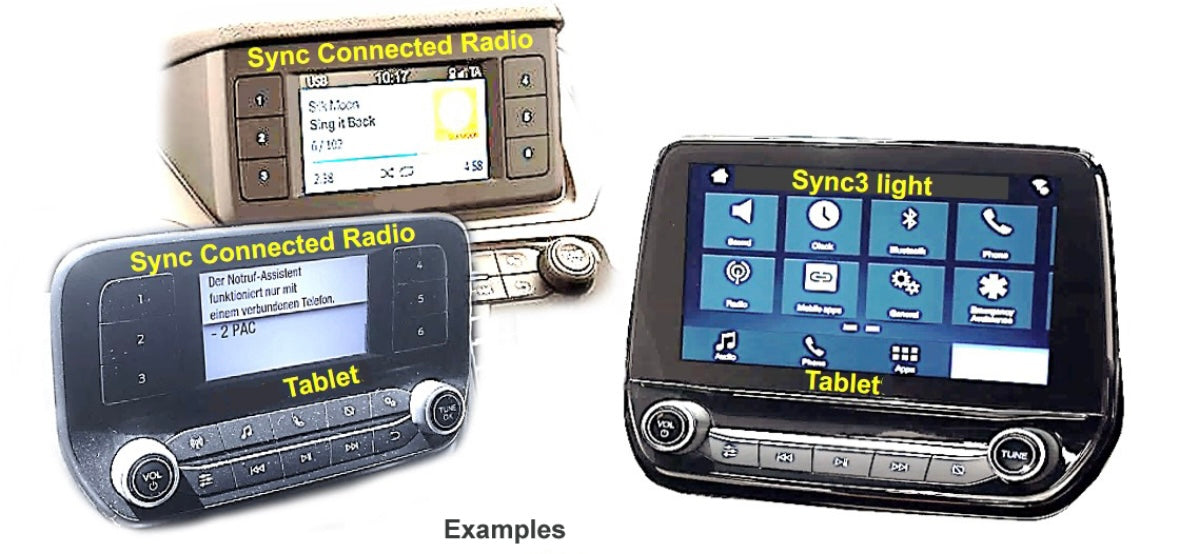

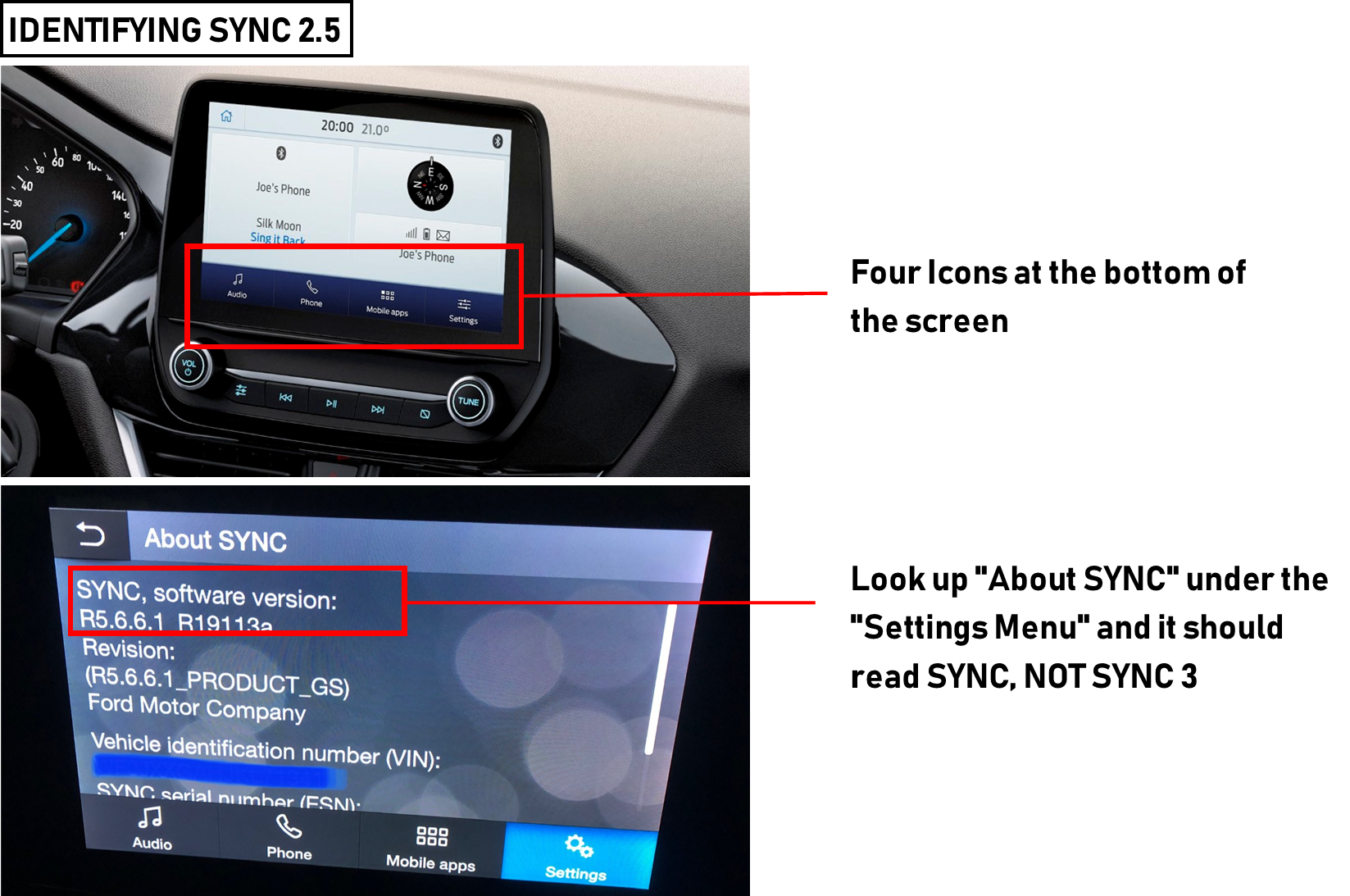

SYNC 2.5  ( Sync 3 light R5 )can usually be identified by the "Four icons" at the bottom of the touch screen (See image below).  Another way to identify is via accessing the vehicles settings menu.

Look up "About SYNC" under the "Settings Menu" and it should read SYNC (Also pictured below)

This interface can be used to hard wire into the full Sync3 version if needed.
