Add a Camera to OEM Abarth 500 (2016-2022) With Uconnect LIVE + Nav LIVE HD 7-Inch Monitor

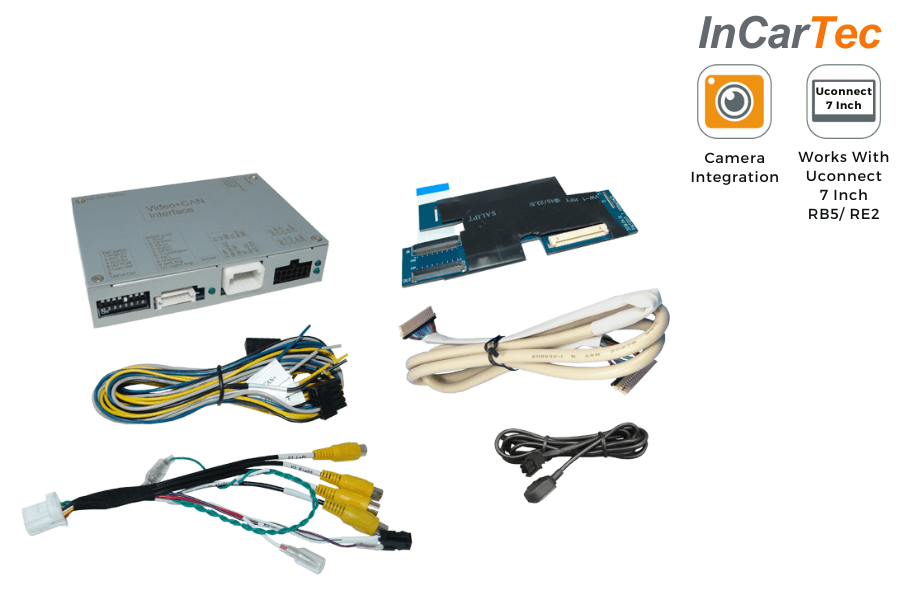

Front/ Rear view camera and video input interface suitable for various Fiat 500, 500L and 500X car models with Uconnect LIVE HD + Nav LIVE HD with 7 inch monitor (VP2-312-7in + VP2-334-7in) . This interface allows you to connect a rear-view camera and two additional video-sources to a factory-infotainment system.

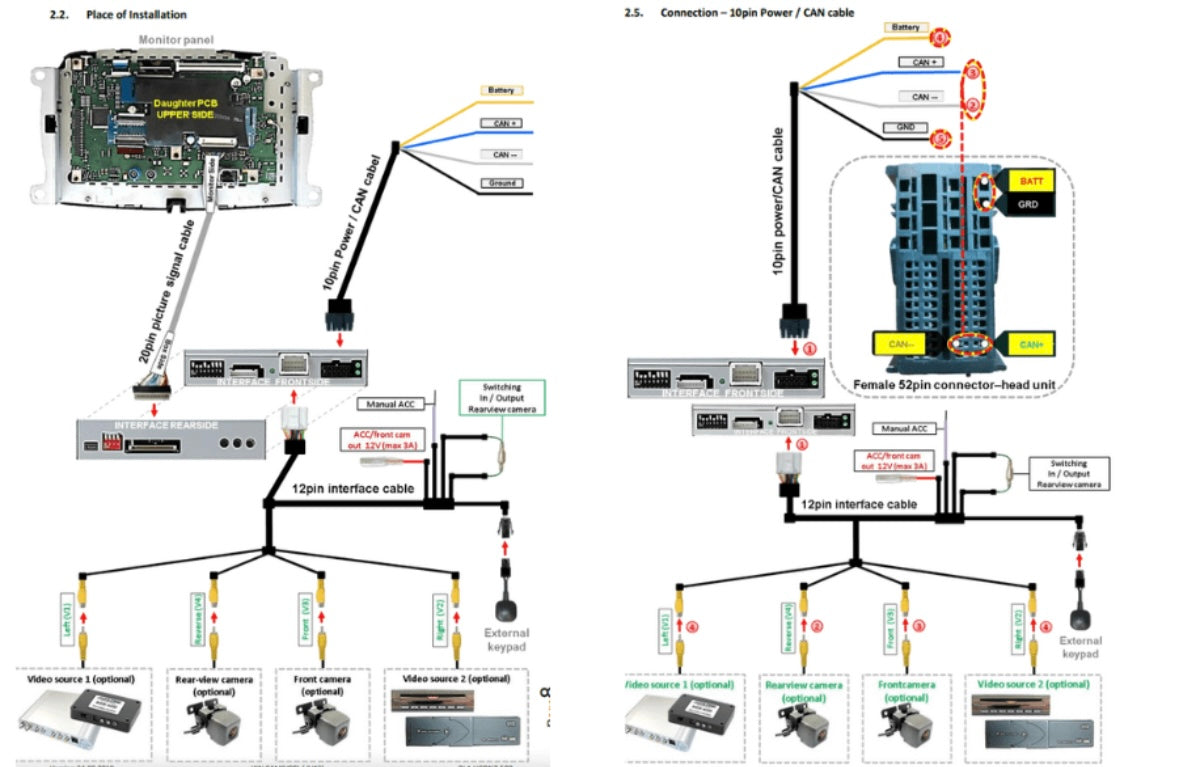

PLEASE NOTE: NOTE: The interface is built into the monitor board (the monitor must be opened for this)

THIS IS A SPECIAL ORDER ITEM AND MAY HAVE A DELAY IN RECEIVING THE PRODUCT

Product Features

• video feeder for factory infotainment systems
• 1 FBAS rear view camera video input
• 1 FBAS front camera video input
• 2 FBAS video inputs for retrofit devices (e.g. USB player, DVB-T2 tuner)
• Automatic switching to rear view camera input when engaging reverse gear
• Automatic front camera switching after reversing for 10 seconds
• Image release while driving (ONLY for input video)
• video inputs NTSC compatible

Suitable for the following car models

• 500 from 07/2016 (from model year 2017),

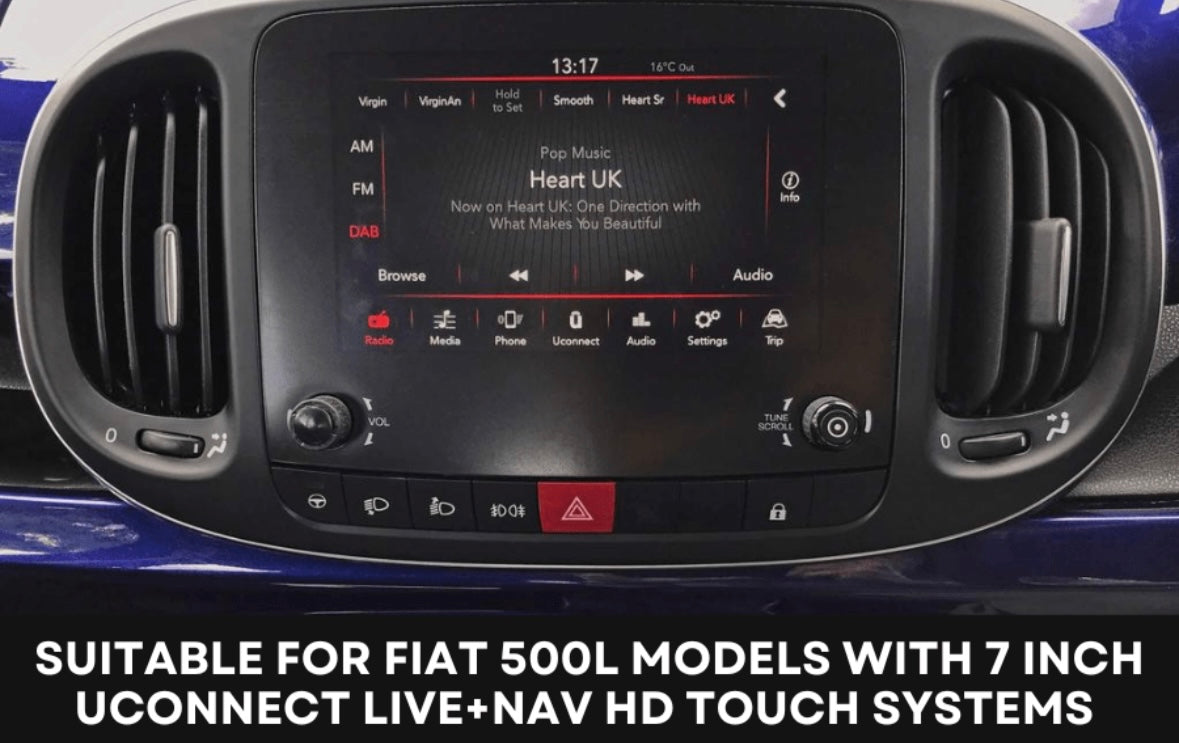

• 500L from 06/2017 (from model year 2018),

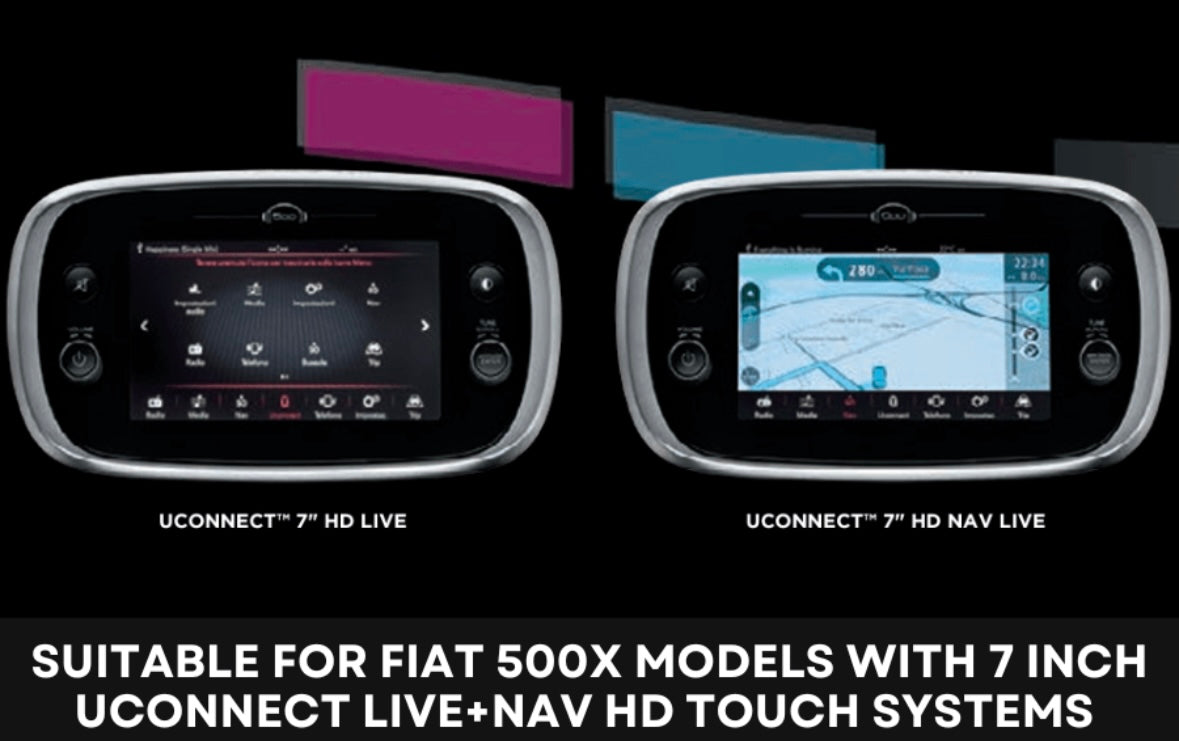

• 500X from 11/2017 (from model year 2018)

Compatibility notes

• The interface ONLY feeds video signals into the infotainment system. To feed in audio signals, a factory audio AUX input or an FM modulator can be used. If 2 AV sources are connected, additional electronics are required for audio switching.
• Automatic switching to RVC only as long as reverse gear is engaged. Additional electronics are required to delay the downshift.
• Switching to the front camera occurs automatically after disengaging reverse gear for 10 seconds. Manual switching to the front camera is also possible using the button.
• Only NTSC video sources compatible.
