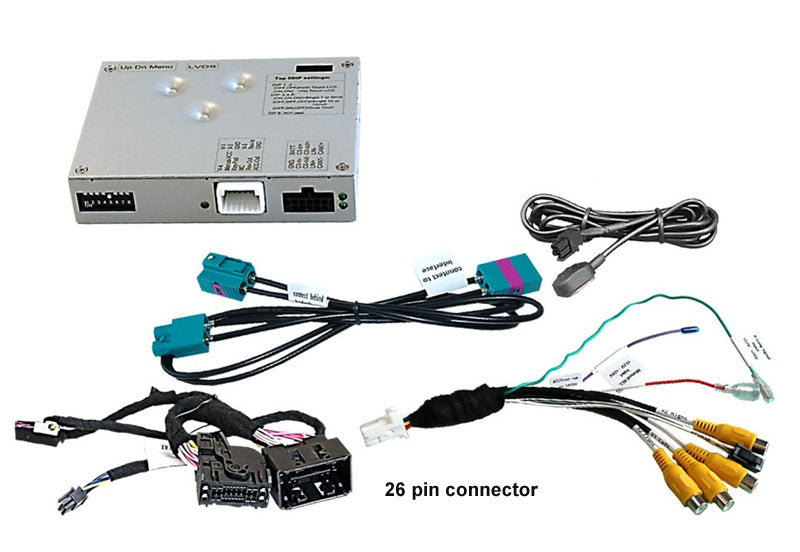

Add a Camera to OEM Mercedes Actros 5 (2018 Onwards) With Multimedia Cockpit (26pin Radio Connector)
Add a Camera to OEM Mercedes Actros 5 (2018 Onwards) With Multimedia Cockpit (26pin Radio Connector)
Couldn't load pickup availability
Suitable for Actros 2018 and Arocs 2020 vehicles 10.25 inch Monitor 26 pin radio connector without Navigation.

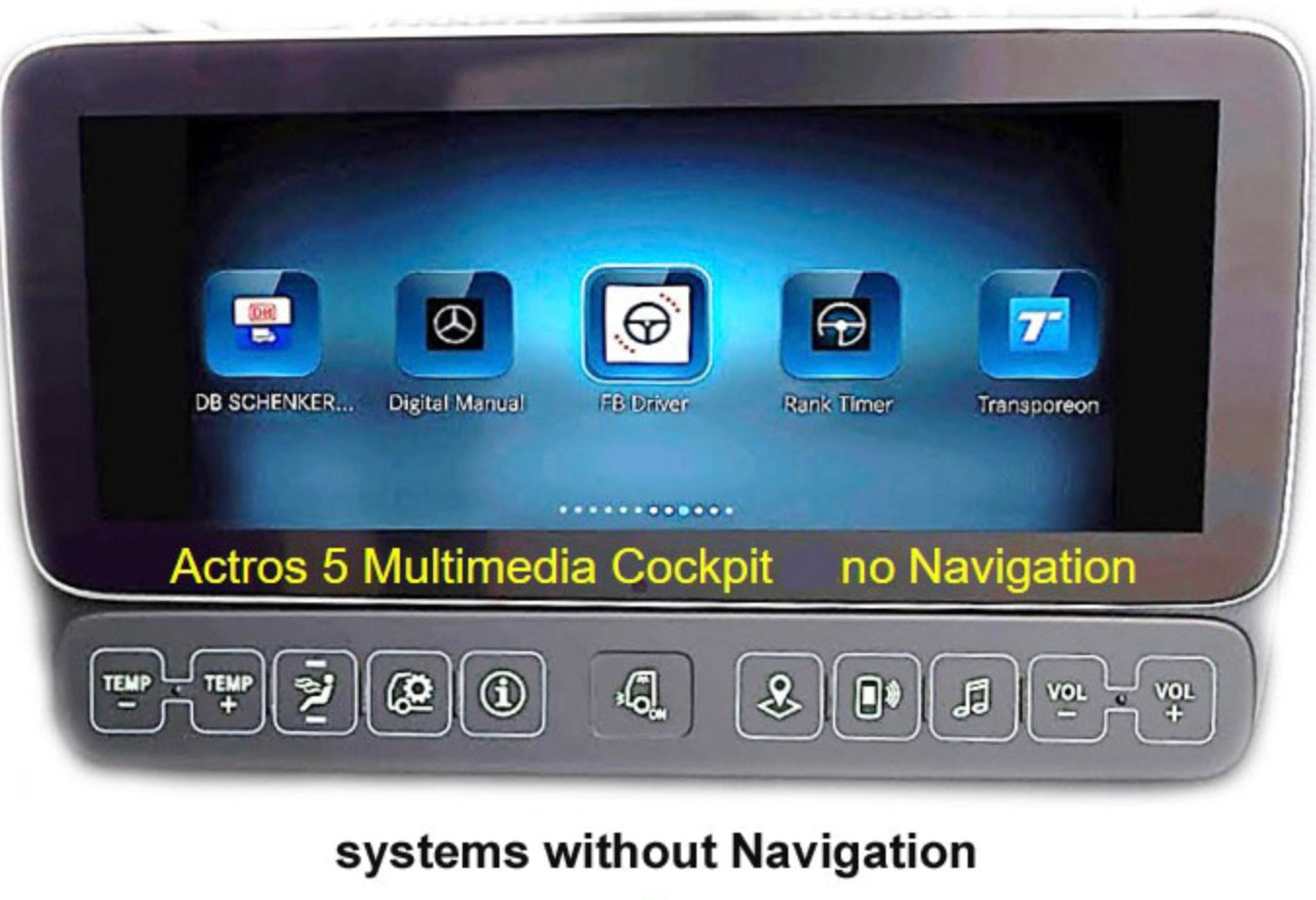

The multimedia cockpit with 10.25inch monitor is available with and without navigation. With navigation always has the 31pin radio connector, without navigation has either the 31pin or a 26pin radio connector. For the version with 31pin radio connector, the interface with the item number 27-588 ( RL4-MBMC) is available including a 31pin plug & play harness.
1 CVBS rear-view camera video-input
1 CVBS front camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Mercedes - Actros 5 (2018 Onwards)
Mercedes - Arocs (2020 Onwards)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera |
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
|
Video input signal
|
NTSC video sources compatible only. |
