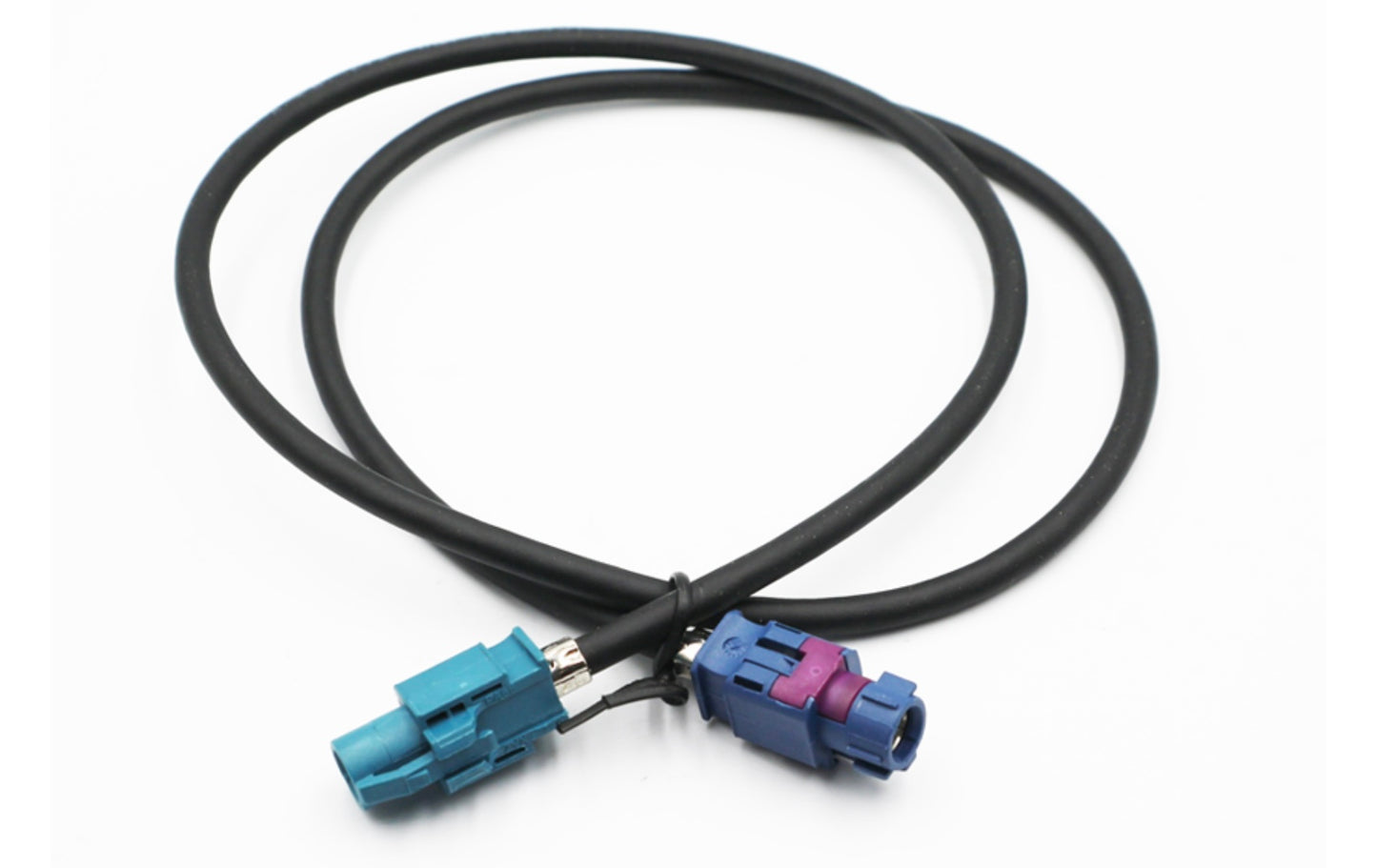

Add Camera to OEM Audi A8 (2010-2018) Camera Interface For MMI 3G+ High

Add rear and front cameras to the OEM monitor of  select Audi group cars with MMI 3G+ High

NOT suitable for MMI3G low/ basic

For Audi A6L/A7/A8L 2012-2016,  VW Touareg 8" Navigation screen

Harness is fitted at the front behind the  head-unit and in the rear boot area to the parking control module.

No special coding is needed as the interface integrates with the LVDS cable behind the vehicle head unit.

The rear camera will activate as soon as reverse gear is engaged. The front camera will only activate if reverse gear is selected and then immediately afterwards drive forward gear is selected.

3 x RCA video inputs   Front camera, Rear camera & DVR

NTSC video format only.

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Audi - A6 4th Gen (C7/4G)* (2011 - 2015)
Audi - A7 1st Gen (Type 4G8)* (2010 - 2015)
Audi - A8 (D4)* (2010 - 2017)
Volkswagen - Touareg II (2010 - 2018)
