Add Camera to OEM Landrover Freelander II (2006-2014) With Bosch 8" Touch Screen Navigation

CAN BUS reverse switching is ONLY FOR VEHICLES WITH AUTOMATIC GEAR SHIFT

Suitable for Land Rover/ Jaguar models with factory fitted Bosch head units with 8 inch touch screen display. 2012 to 2015.

Jaguar F Type (13-15) Jaguar XF X250 (12-15) Jaguar XJ X351 (10-15)

Landrover Discovery4 L319 (12-14), Freelander 2 L359 (2013 only) Range Rover Vogue L322 ,Sport L320 (facelift)  Evoque L358

This interface transforms composite video signal into the RGB video necessary for the reverse camera connection. Reverse image is activated via the CANbus

- CVBS input for rear view camera  NTSC format only

-Automatic switching to rear view when reverse gear selected ( only for cars with Automatic gearbox)

- Output connection to OEM monitor

- Model selection by DIP switches

Compatibility

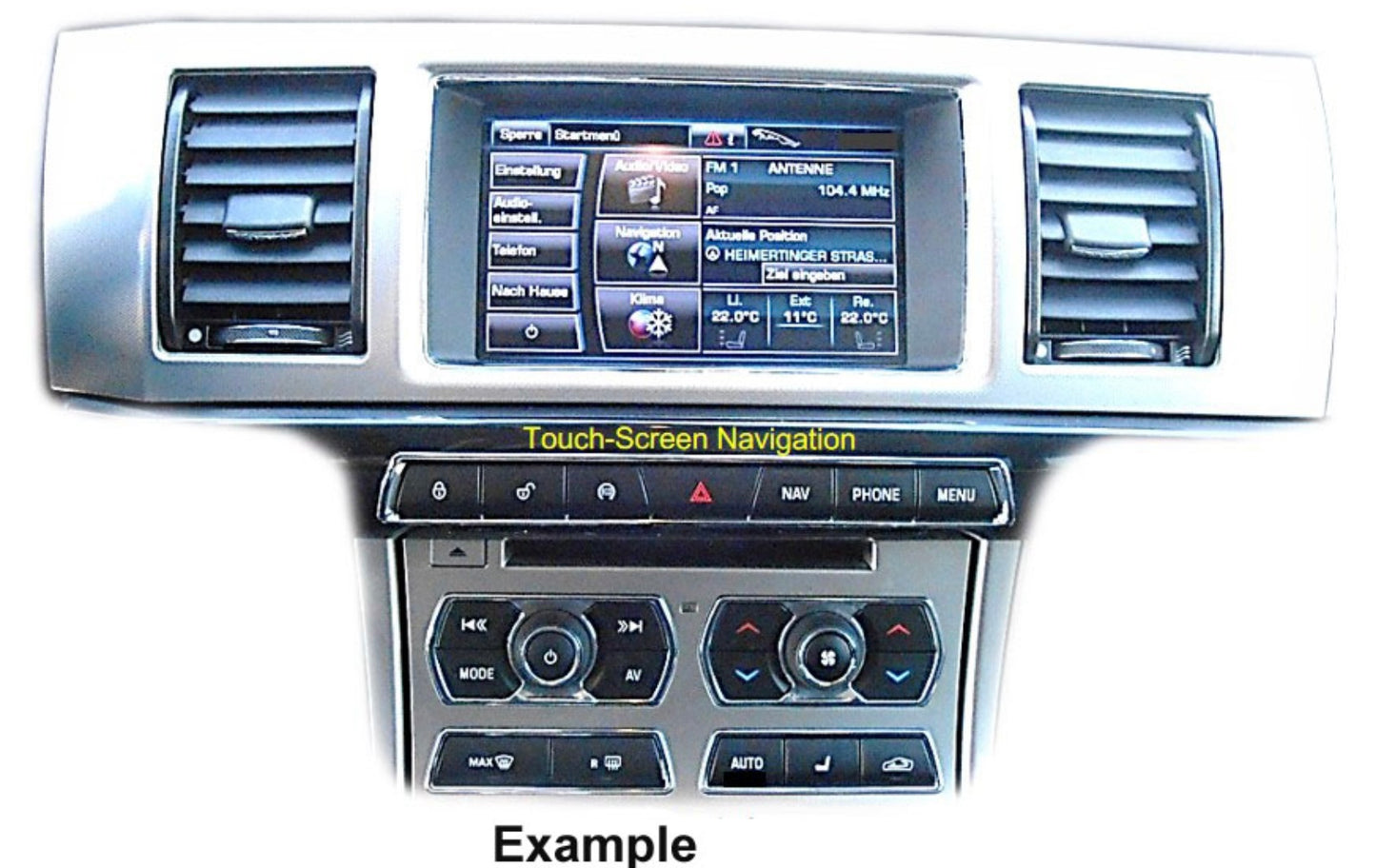

To be compatible the vehicle must have the MFD dual screen view system with a 7-8-inch Bosch display. There are 2 ways to check, either measure the screen diagonally across such as in picture below. Alternatively remove the OEM monitor carefully and check behind. The BOSCH logo and number 7 (highlighted below) should be displayed on the back of the monitor.

PLEASE NOTE: Only suitable for Land Rover/ Jaguar models with factory fitted Bosch head unit with 8 inch display.

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Jaguar - XF (X250) (2008 - 2015)
Jaguar - XJ (X351) (2010 - 2015)
Landrover - Discovery IV (LR4) (2009 - 2016)
Landrover - Freelander II (L359) (2006 - 2014)
Landrover - Range Rover Evoque 1st Gen (L538) (2011 - 2018)
Landrover - Range Rover III (L322/Vogue) facelift (2011 - 2012)
Landrover - Range Rover Sport (L320 Facelift) (2010 - 2013)
