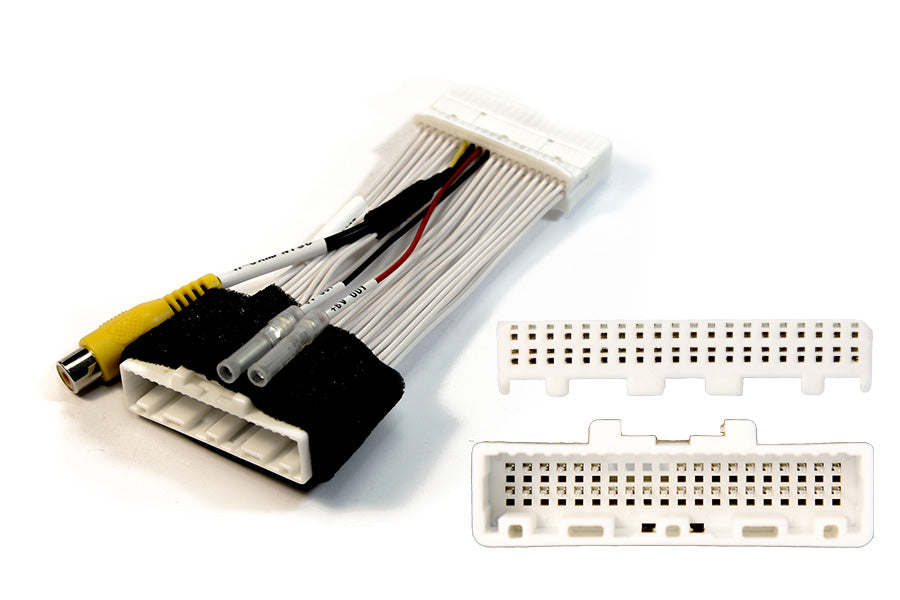

Add Camera to OEM Toyota Prius (2004-2009) With MFD GEN5 Multi-Display 40 Pin Connector

This cable allows you to connect rear view cameras in Toyota / Lexus cars with OEM multimedia system of 5th generation 5GEN. The cable offers Plug & Play installation of aftermarket cameras without damaging the OEM wiring.

Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 40 pin socket (as shown in the connection diagram). After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection.

PLEASE NOTE

Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.

PLEASE NOTE

In some cases the head unit may not have a REVERSE wire. If that's the case, you need to extend the wire from the +12 V tailgate lamp as the cable will not work otherwise.

Compatible with:

- Lexus RX350 (2007-2009)

- Lexus RX400H (2007-2008)

- Toyota Prius (2006-2009)

- Toyota Prius Touring (2006-2009)

PLEASE NOTE: ONLY FOR SYSTEMS WITH MFD GEN5 MULTI-DISPLAY
