Car Technology and Performance

Add Camera To OEM Screen Ford S-Max (2019-2022) Sync 2.5 (32 Pin connection) (CODING REQUIRED)

Add Camera To OEM Screen Ford S-Max (2019-2022) Sync 2.5 (32 Pin connection) (CODING REQUIRED)

Regular price £30.99 GBP
Regular price Sale price £30.99 GBP
Sale Sold out
Shipping calculated at checkout.

Ford S-Max compatibility: check before ordering

Add a reversing camera input to your compatible Ford S-Max factory screen while retaining the original system settings.

  • Model years: Ford S-Max 2019–2022 is listed in the compatibility information for this adaptor.
  • Factory head unit: Ford SYNC 2.5. The listed software versions are 3.0, 3.2 and 3.3.
  • Screen and connection: A 7-inch or 8-inch factory screen with the newer 32-pin Ford connector is required. Model year alone does not confirm fitment.
  • Camera signal: Compatible with NTSC video cameras only.
  • Coding required: The reversing camera function must be enabled using FORScan. Connecting the harness alone does not activate the camera input.

What this adaptor does

This reversing camera interface adaptor lets you add a back-up camera input to a supported factory Ford system in a vehicle that did not come with an OEM reversing camera. It uses an inline T-harness and retains the factory settings.

What the 32-pin connection means

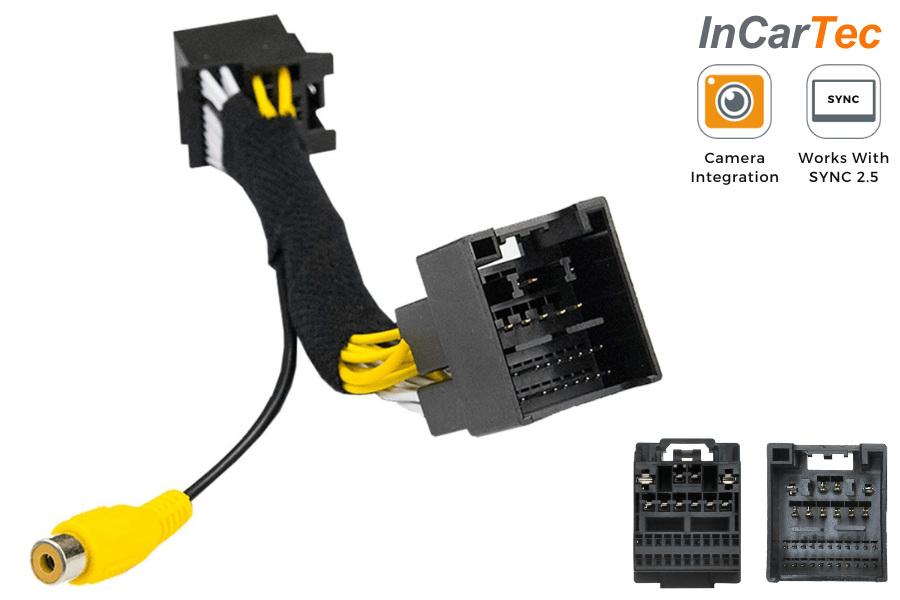

The adaptor has matching 32-pin male and female connectors, plus an RCA phono camera input. Disconnect the factory connector and fit the T-harness between the original connector and the factory unit. The harness plugs inline without cutting or interrupting the existing cables.

Your vehicle must have the newer 32-pin Ford connection type. Check the connector as well as the SYNC system before ordering.

Why coding is needed

The wiring connection is plug-and-play, but the camera function is not automatically enabled. FORScan coding is required to switch on the reversing camera, also called the RVC function, in the SYNC system. Plan for this coding as part of the installation.

How to check your SYNC system

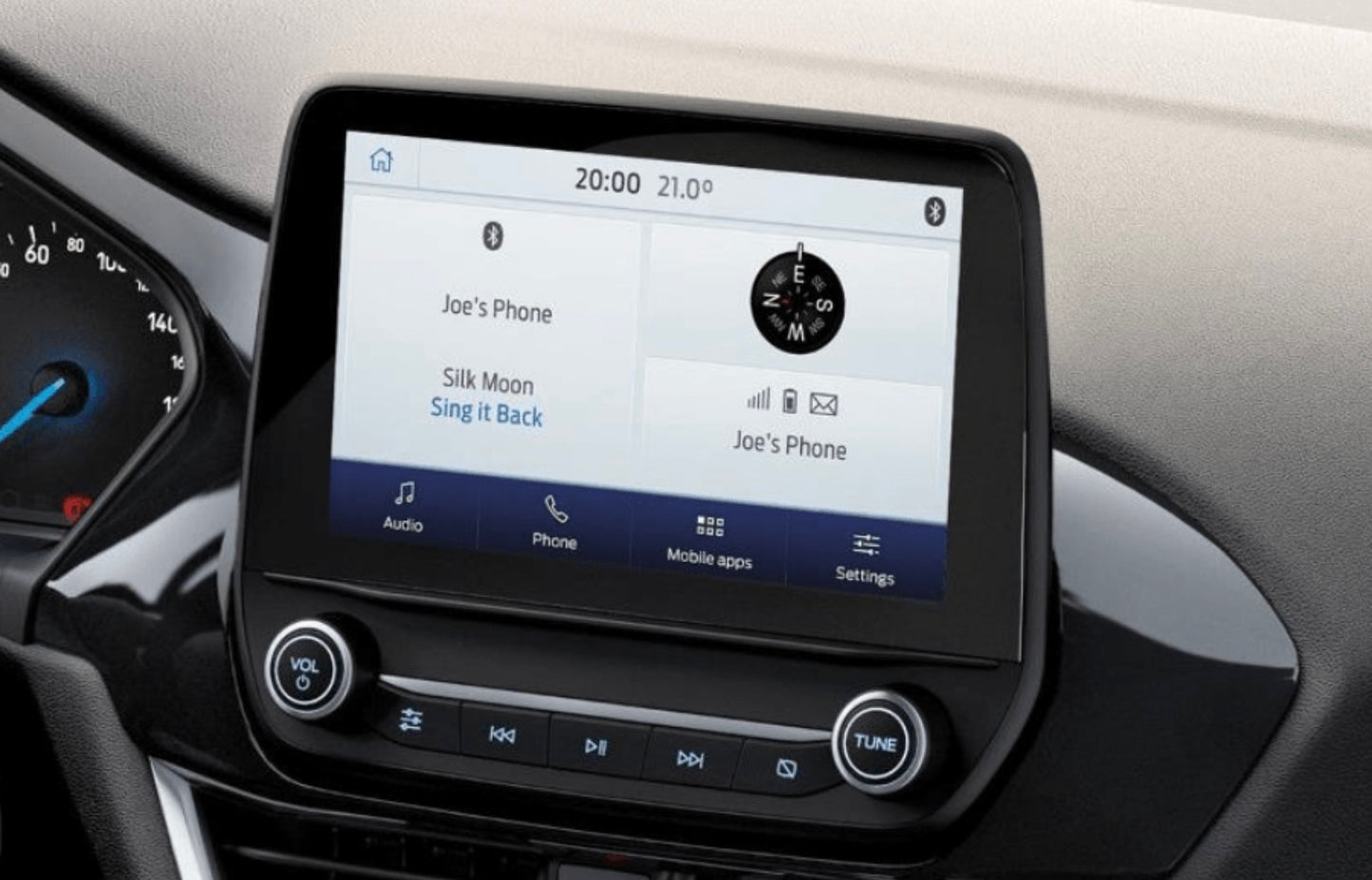

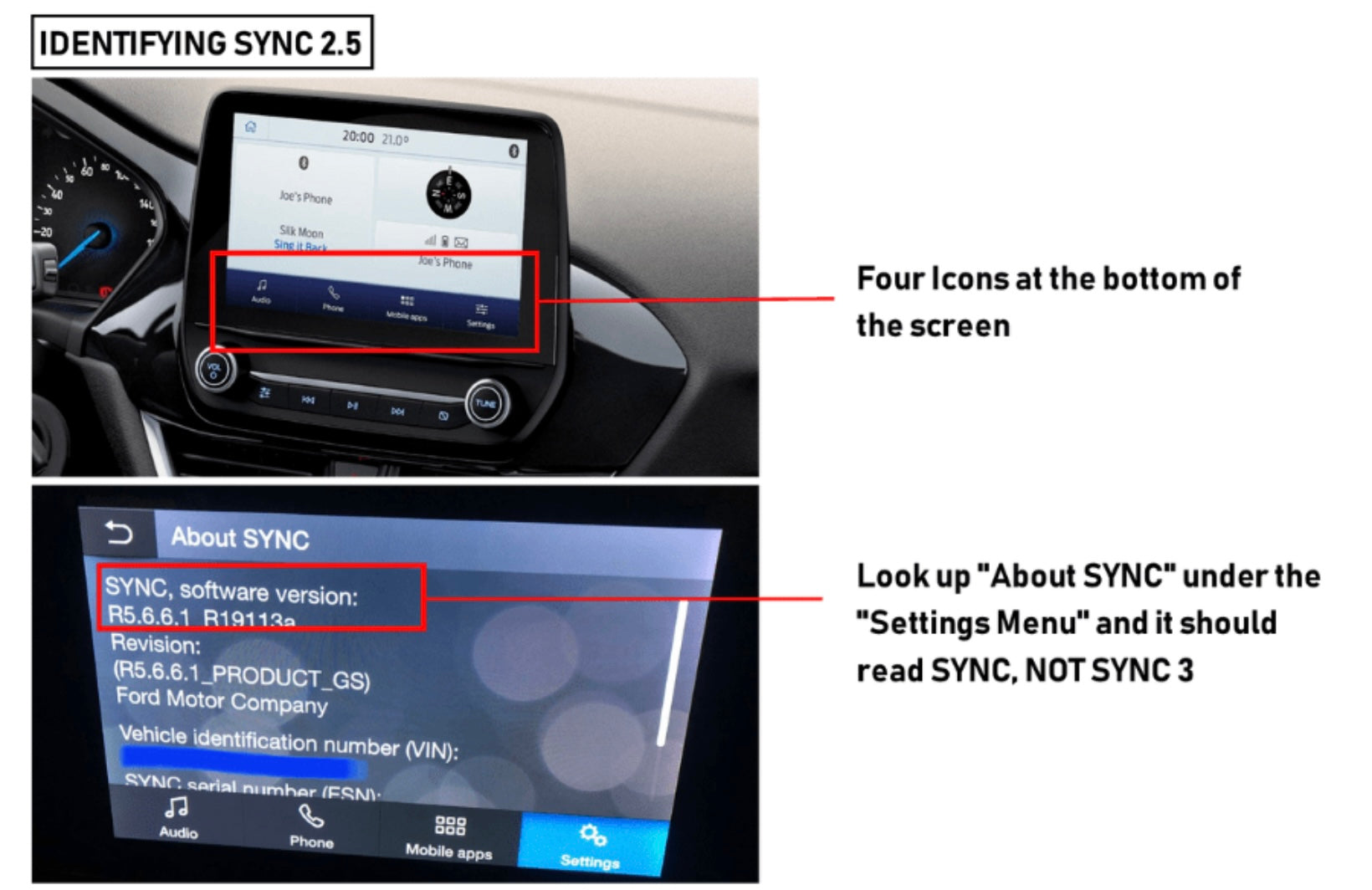

SYNC 2.5 can usually be identified by four icons along the bottom of the touchscreen. You can also open the vehicle's Settings menu and look for About SYNC; the existing identification guidance notes that this should read SYNC. Check the system information alongside the screen size and 32-pin connector rather than relying on the model year alone.

If you are unsure which SYNC version you have, please see our guide to identifying SYNC and choosing the correct camera interface, or contact us before ordering.

Technical specifications

  • Interface type: inline reversing camera T-harness adaptor.
  • Supported factory systems: Ford SYNC 2.5 / SYNC 3, with listed SYNC 3 versions 3.0 / 3.2 / 3.3.
  • Factory screen size: 7 or 8 inches.
  • Vehicle connection: newer Ford 32-pin male and female connectors.
  • Camera input: RCA phono.
  • Camera video format: NTSC only.
  • Activation: FORScan coding required to enable the RVC function.

Other vehicles listed for this adaptor

The existing compatibility list also includes the following Ford models. The same SYNC system, screen and newer 32-pin connector requirements apply.

  • Ford C-Max (2019–2022)
  • Ford EcoSport (2019–2022)
  • Ford Fiesta (2017–2022)
  • Ford Focus (2018–2022)
  • Ford Galaxy (2019–2022)
  • Ford Kuga (2019–2022)
  • Ford Mondeo (2019–2022)
  • Ford Mustang (2019–2022)
  • Ford Puma II (2019–2022)
  • Ford Ranger (2019–2022)
  • Ford Tourneo Custom (2019–2022)
  • Ford Transit Connect MK2 (2019–2022)
  • Ford Transit Custom (2018–2022)
  • Ford Transit MK8 Facelift (2018–2022)
