Add Camera to OEM Volkswagen Sharan II (2010-2022) With Composition Media/Discover Media (MIB STD2 PQ/+NAV)

Add a reverse view NTSC camera to select Volkswagen vehicle models with Composition Media/Discover Media (MIB STD2 PQ/+NAV) systems.

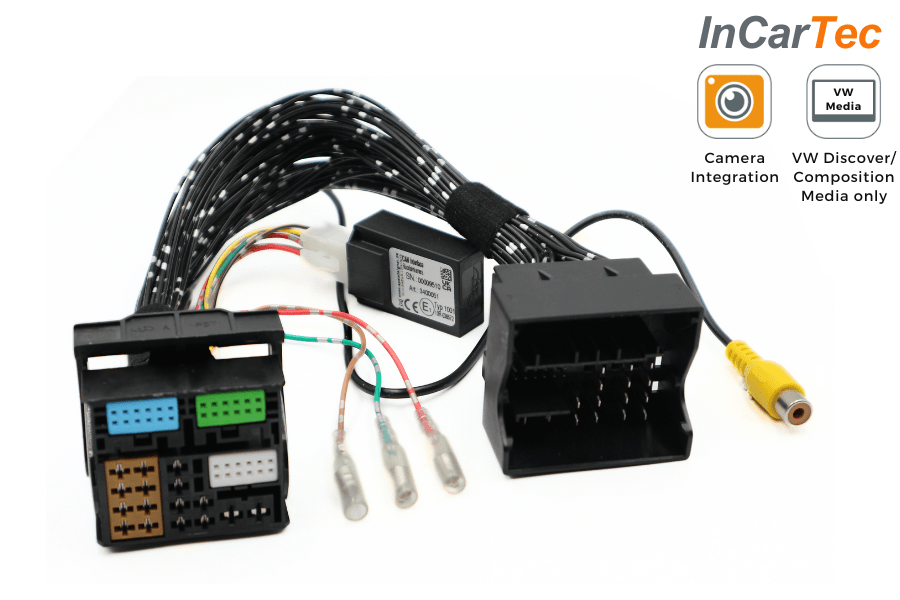

This interface is a camera add on kit which allows you to add an aftermarket rear view camera whilst retaining the use of your factory head unit. This harness has a built in interface to give ignition power and a reverse feed to the camera.
PLEASE NOTE: The camera input function needs to be CODED to the car by either a VW dealer or a specialist engineer with VCDS.

Suitable for the following Volkswagen vehicle models with factory OPS, MIB STD2 PQ/+NAV, Composition Media/Discover Media, 1x SD Slot vertically left or 1x SD slot each vertically left and right and CD drive above the 6.33 inch monitor:

PLEASE NOTE: Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions . Please check that the connections and specifications match the vehicle it is to be fitted to.

Compatibility notes
NOT compatible with 1K8035150_ head unit models. The head unit model number can be found by accessing the info/about menu on the head unit. 27-300 will work with most Composition Media head units, but there are some that do not accept a camera input at all. NOT compatible with the following model numbers XXX035820A, XXX035820, XXX035819A, XXX035819 or XXX035812. The head unit model number can be found by accessing the info/about menu on the head unit to check before purchase.

Below are example images of the VW Composition Media and Discover Media radios from VW T6 and Caddy vans that this interface is compatible with.

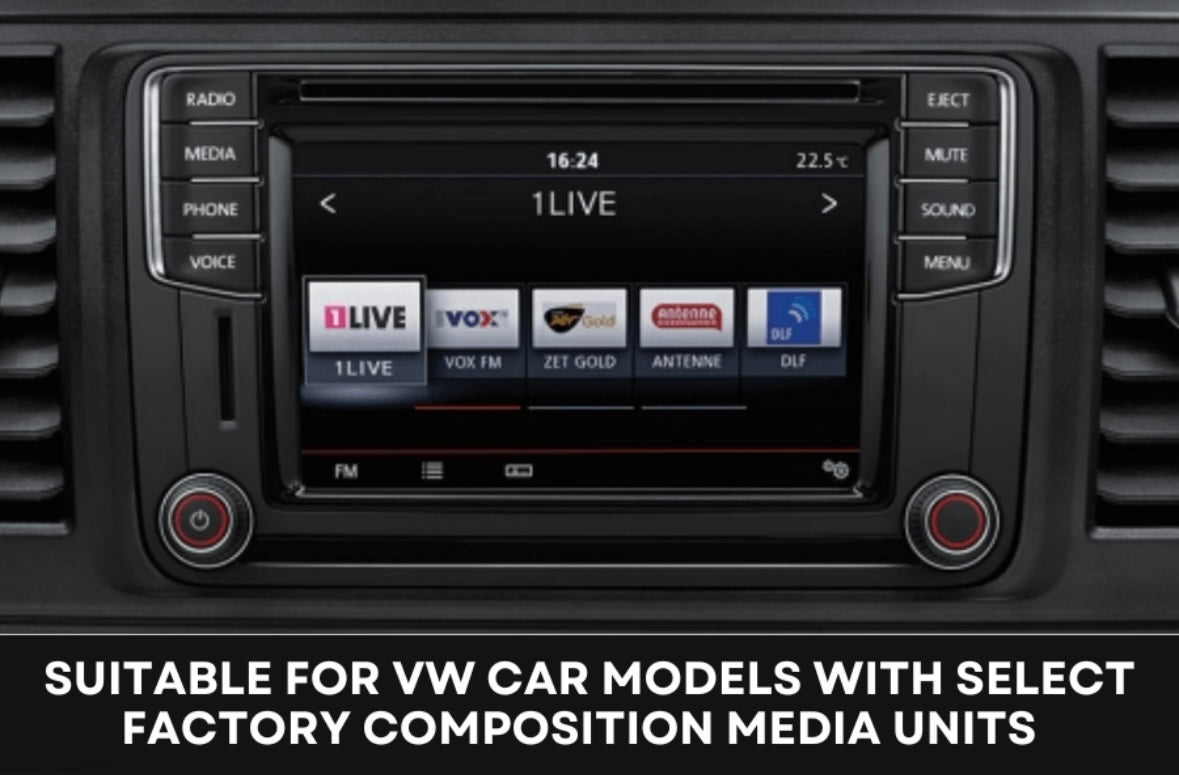

VW Composition Media

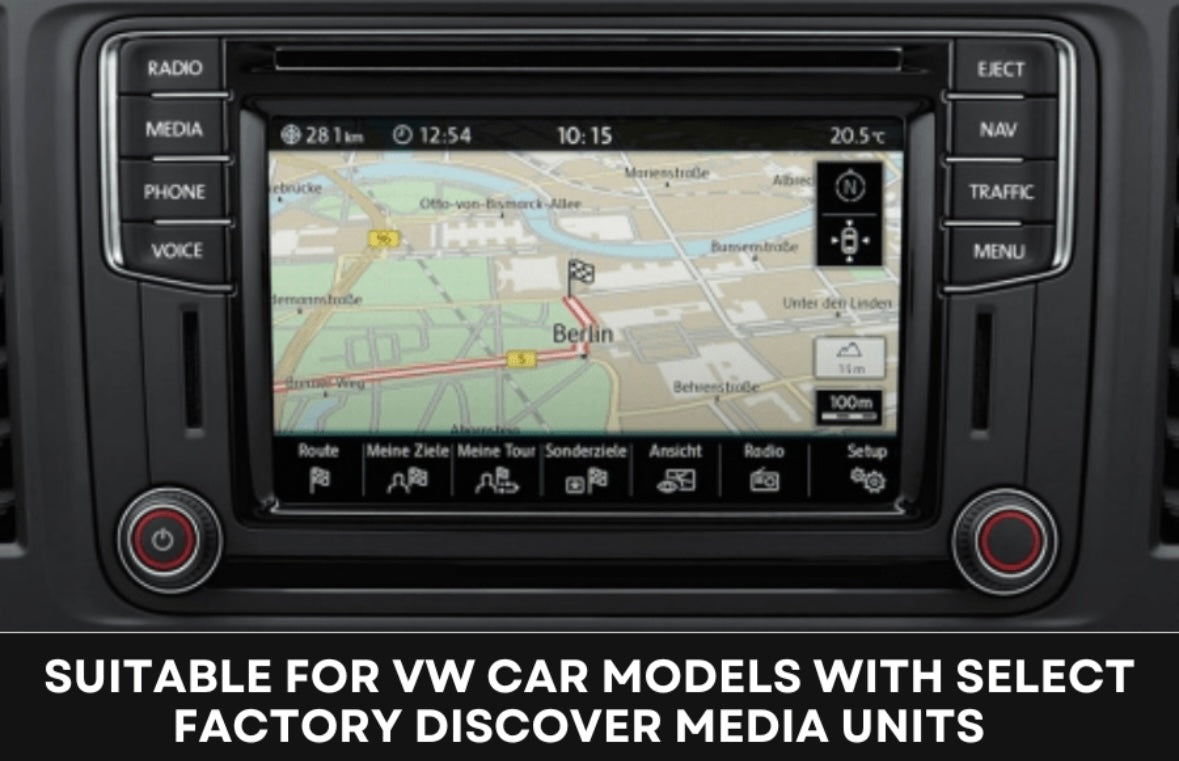

VW Discover Media

Not compatible with the following radios.

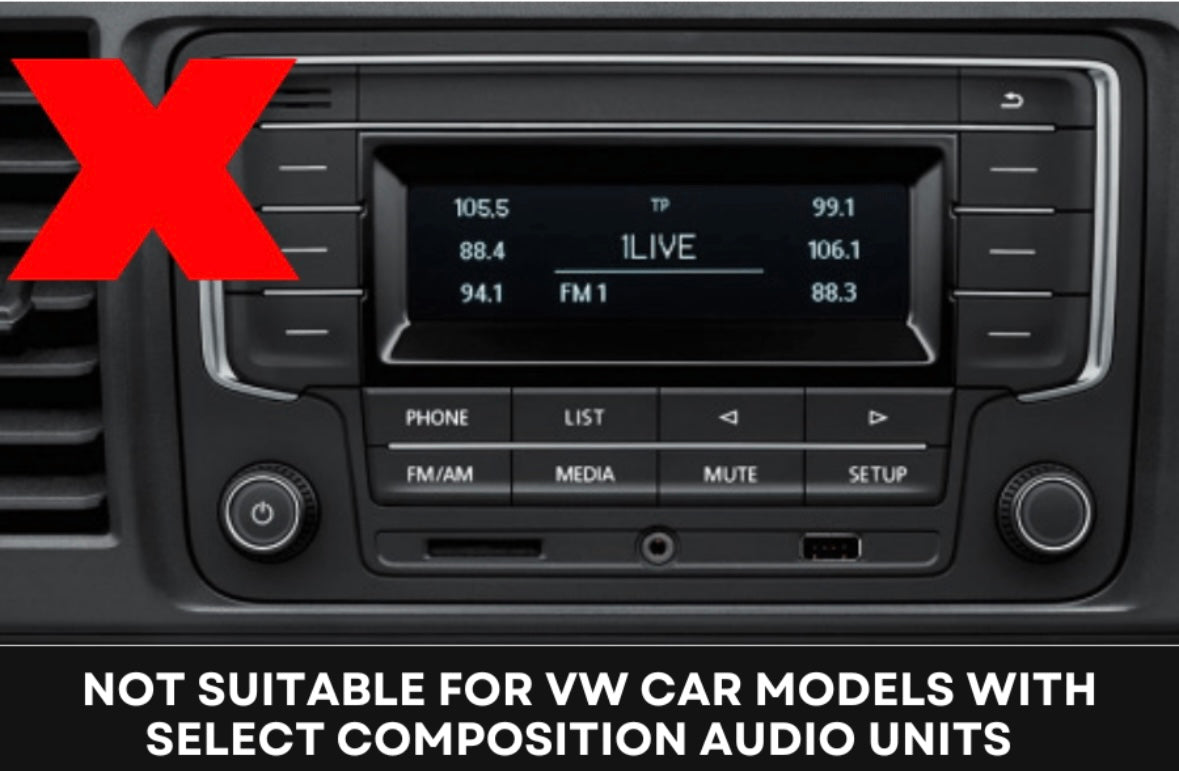

VW Composition Audio

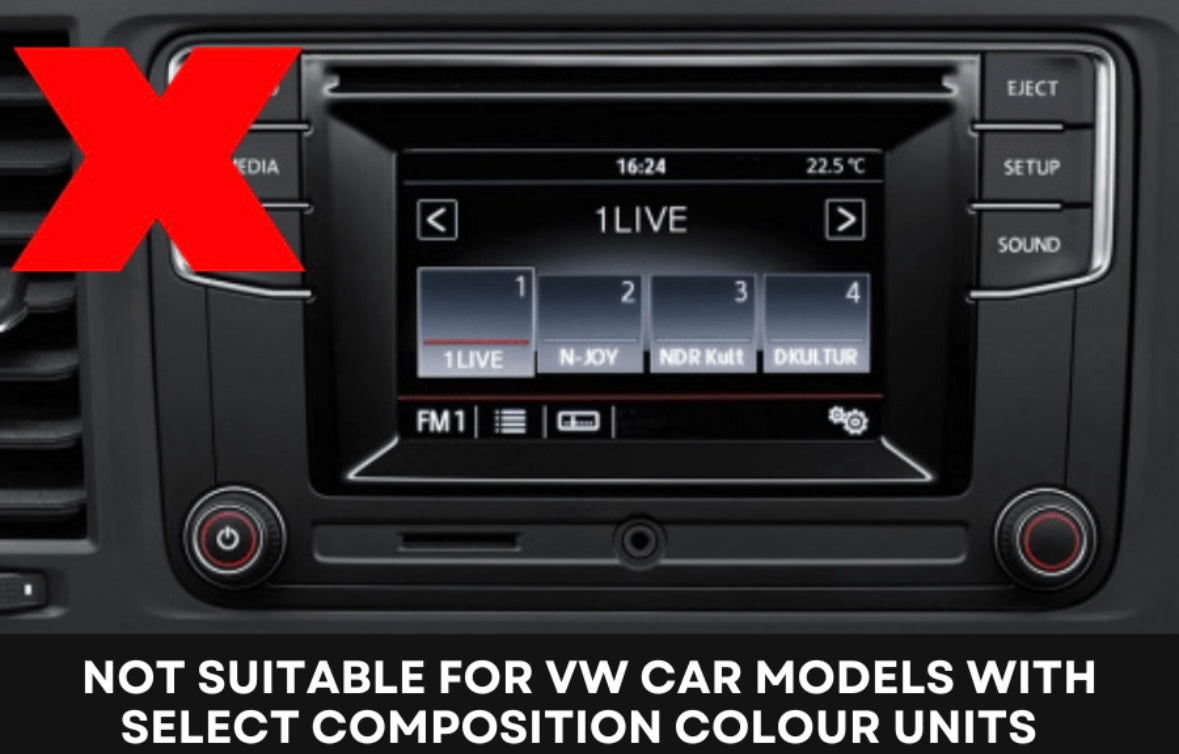

VW Composition Colour
