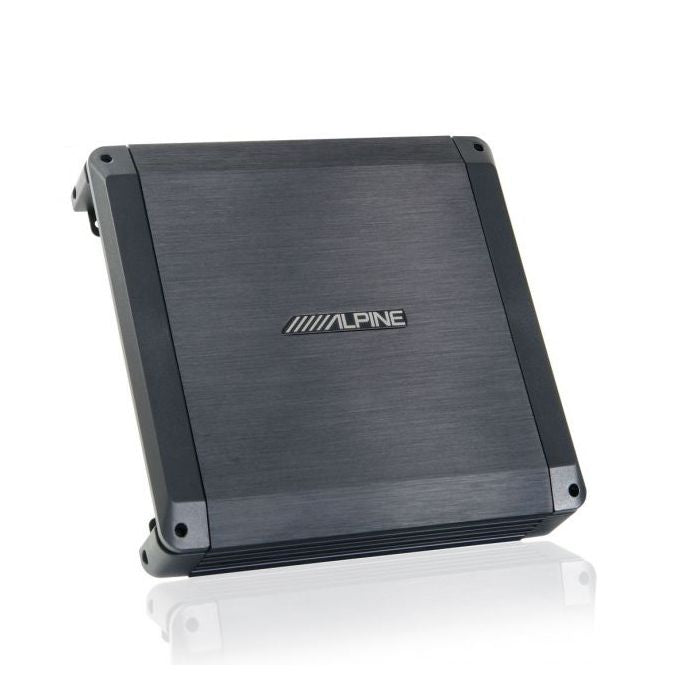

Alpine BBX-T600 - 2/1 Channel Class A/B Amplifier

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Per Channel into 4ohms (≤1%THD+N): 2 x 50W Per Channel into 2ohms (≤1%THD+N): 2 x 70W Bridged into 4ohms (≤1%THD+N): 1 x 130W

Install

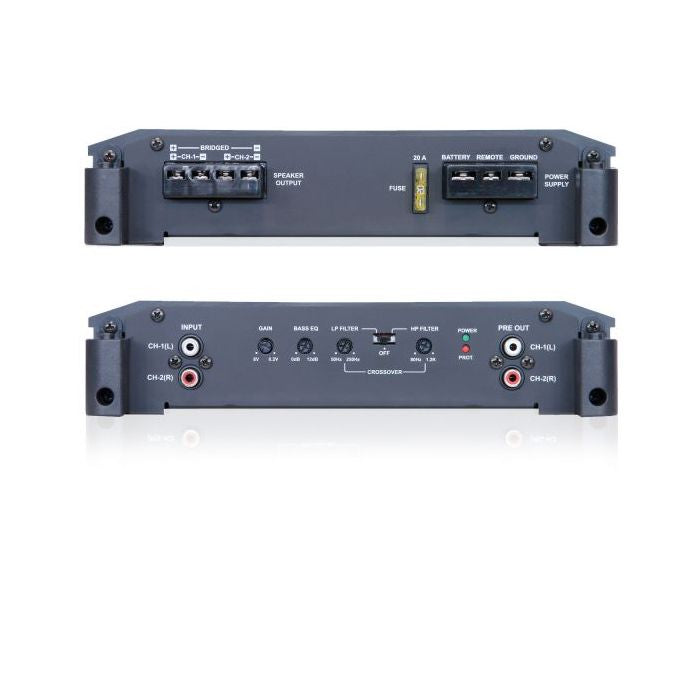

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-A/B
• Channel Design: 2/1 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red Status LED
• 1 pair RCA pre-inputs
• 1 pair RCA pre-outputs

SPECIFICATIONS

• Max Power Output Ratings
• Total Max Power: 300W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 2 x 50W
• Per Channel into 2ohms (≤1%THD+N): 2 x 70W
• Bridged into 4ohms (≤1%THD+N): 1 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP: 50Hz – 250Hz   HP: 80Hz  – 1.2kHz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB

Dimensions

• Footprint: 250 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
• Weight: 1.9 Kg
