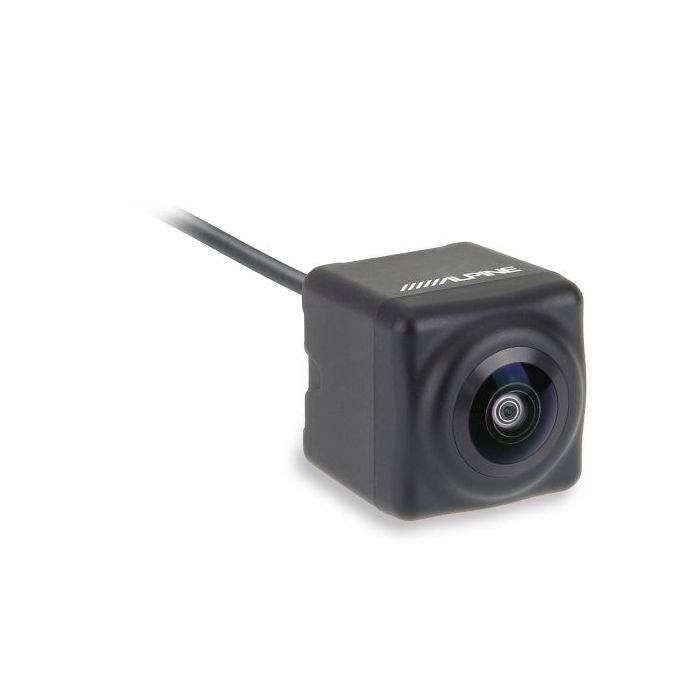

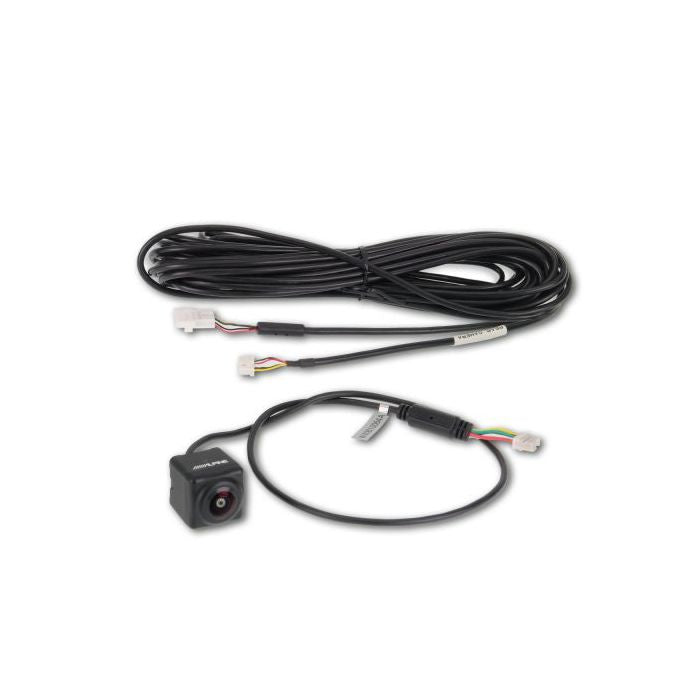

Alpine HCE-C2100RD - HDR Multi View Rear Camera
Alpine HCE-C2100RD - HDR Multi View Rear Camera
Couldn't load pickup availability
PANORAMA VIEW [PANORAMA]
Panorama View displays a wide view in front of the car. Use this when you want to view a wider than normal area before the car.
CONNECT UP TO 3 CAMERAS
The optional KCX-C250MC enables connection of up to three Alpine direct connection cameras. You can switch between cameras via touch operation on your Alpine screen and select different viewing modes.
HIGH DYNAMIC RANGE (HDR) MULTI VIEW FRONT CAMERA
This all-new front-view HDR camera system provides parking safety with cutting-edge camera technology and full touch-screen operation. Thanks to HDR technology, the picture quality is much better compared to regular camera systems - for easier maneuvering and greater safety. A wide viewing range provides better visibility when coming out of ‘blind’ alleys or around obstructed corners. Especially useful for reducing blind spots with SUVs, minivans or trucks. There is a choice of three viewing modes.
SPECIFICATIONS
Dimensions
- Chassis Size (W x H x D) mm : 23.6 mm x 23.6mm x 25.8mm
General
- Power Requirement: 6.0V DC (5.4 – 9.0V DC allowed)
- Power Consumption: 0.8W (6.0V)
- Output Image: Mirror image, CVBS (NTSC video signal)
- Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
- Output Drive Capacity: 1 Vp-p (75 ohms)
- Effective Number of Pixels: 1280(horizontal) x 720(vertical) approximately 0.93 Mega pixels
- Lens Section: Focal Length: f=0.9mm
- Lens: Brightness: Brightness: F=1.8
- Approximate Angle of Field: Horizontal: 180°, Vertical: 142°
- Automatic Image Adjusting Function: Automatic exposure adjustment, Automatic white balance adjustment
- Synch-System: Internal synchronization
- S/N ration: 41dB or more
- Resolution (horizontal, center area): 330 TV lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: 1.5Lx to 100kLx
- Weight: 33g
