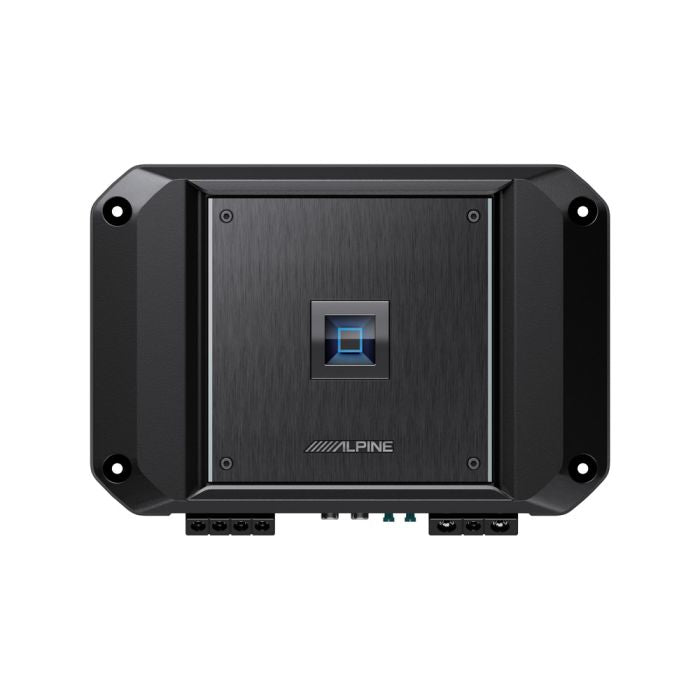

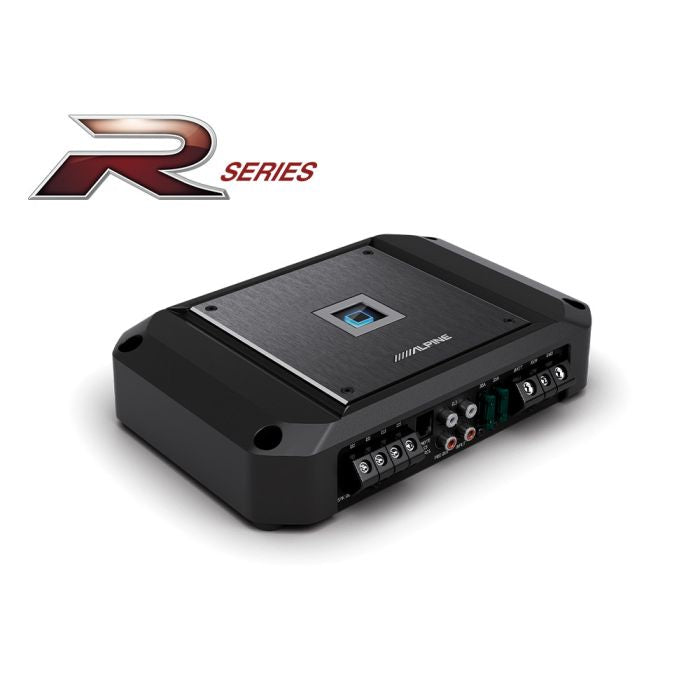

Alpine R2-A60F - R-Series 4-Channel Power Amplifier 1200W
Alpine R2-A60F - R-Series 4-Channel Power Amplifier 1200W
Couldn't load pickup availability
REDUCED FOOTPRINT
The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications, while still getting the same powerhouse performance.
EXTENSIVE TUNING OPTIONS
The high-pass filters remove extreme low bass from your full-range speakers, so they'll play more efficiently. If you plan to use your R2-A60F to run subwoofers, you can adjust the low-pass filters to get just the right bass tone. Best of all, you can set up the filters for band-pass operation, so you can use this amp to power tweeters and midrange drivers, and use a separate amp like a matching Alpine R2-A75M 750 Watt or an R2-A150M 1500 Watt mono amp to power your subwoofer.
HI-RES AUDIO CERTIFIED
The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source, while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
FEATURES
- Install
- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
General
- Class-D Amplification (Digital)
- Channel Design: 4/3/2 Channel
- Top panel controls
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF), High-Pass Filter (HPF), High-Pass Hi Filter (HPF-HI) and Band-Pass Filter
- Adjustable Gain Control
- Bass EQ
- Remote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)
SPECIFICATIONS
- Max Power Output Ratings
- Total Max Power: 1200W
- RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 150W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 100W
- Bridged, 4 Ohms, 14.4V: 2 x 300W
- Sound Tuning
- Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
- Crossover: Variable HPF-H: 400Hz-6kHz
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 8
- Frequency Response: 10Hz – 45kHz
- THD+N (@ 10W into 4 Ohms): <0.03%
- Damping Factor: >100
- Weight: 3.3kg
- Dimensions
- Heat Sink (WxHxD) mm: 282 x 55 x 165
