Alpine R2-W12D2 - 12" Type R Series Dual 2Ohm Car Subwoofer 2250W
Alpine R2-W12D2 - 12" Type R Series Dual 2Ohm Car Subwoofer 2250W
Couldn't load pickup availability
INCREASED ACCURACY
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for additional protection to the cone.
FLEXIBLE APPLICATION
These subwoofers feature Alpine’s High Amplitude Multi-Roll (HAMR) Surround technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
THE NEW 2022 R-SERIES SUBWOOFERS
The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.
- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Large Double-Stacked Magnets
What's in the Box
- 12” R2-Series DVC Subwoofer with Cosmetic Trim Ring
- 2 Jumper Wires for DVC Configuration
- Owner’s Manual
Specifications
- 750W RMS
- 2250W Peak Power Handling
- Frequency Response: 24Hz-200Hz
- Sensitivity (1W/1m): 84.5dB
- Nominal Impedance: 2Ω + 2Ω
- Voice Coil: 65mm
- X-Max: 20mm
- Magnet Weight: 144oz

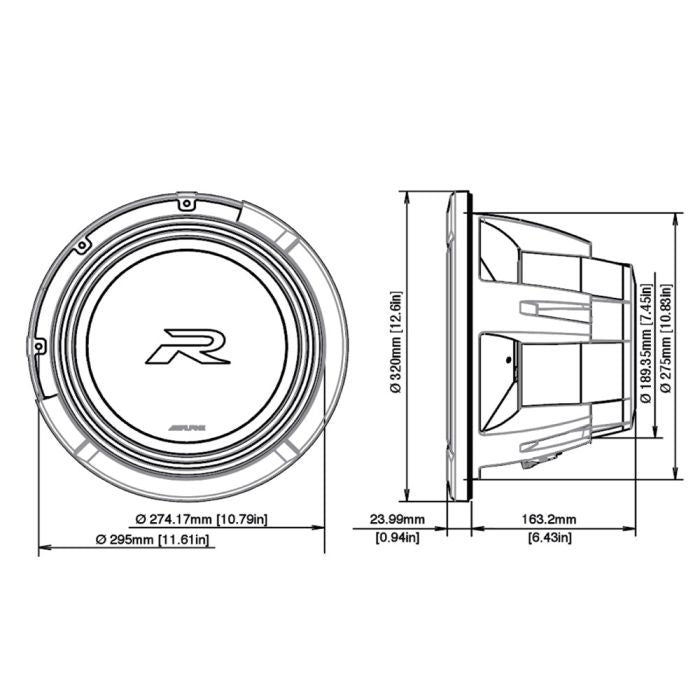

- Mounting Depth: 6-1/2” (152mm)
- Cutout Size: 10-7/8” (231mm)
- CTA-2031 Compliant
