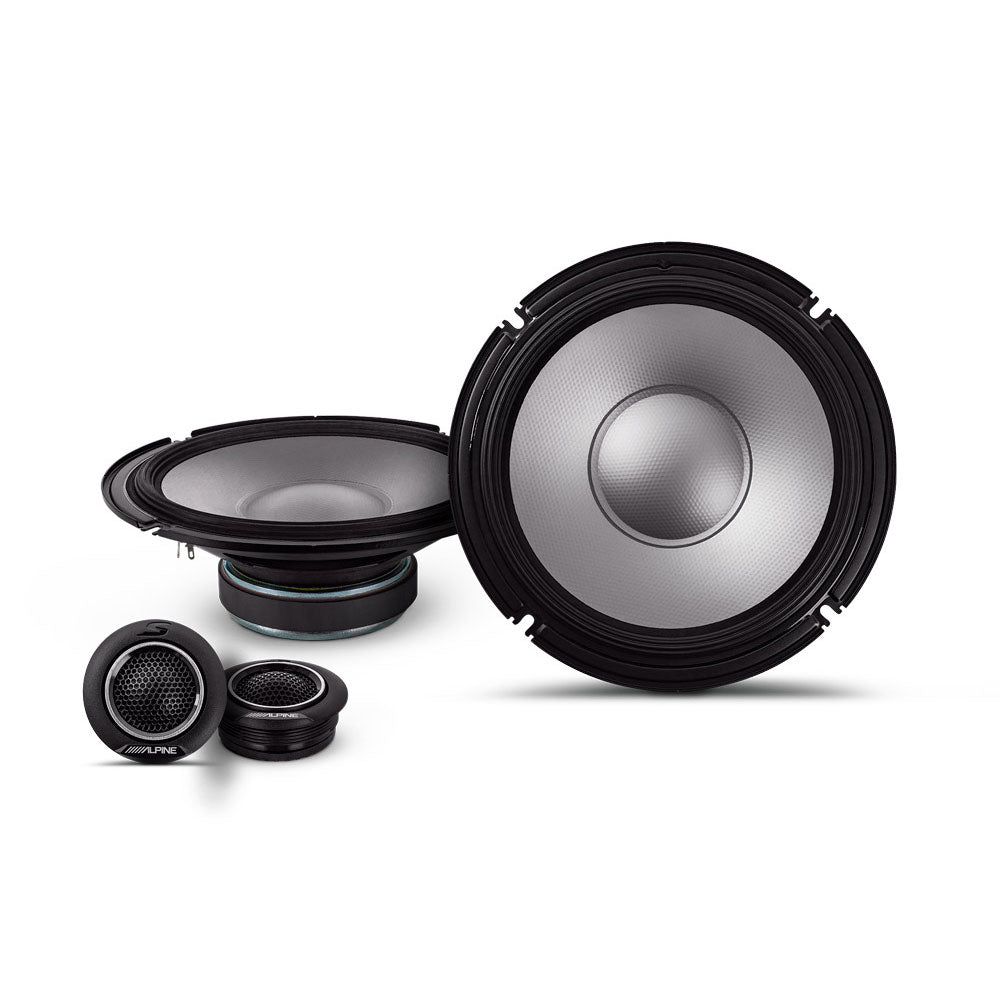

Alpine S2-S80C - S-Series 8" 2-Way Car Component Speakers 260 Watts
Alpine S2-S80C - S-Series 8" 2-Way Car Component Speakers 260 Watts
Couldn't load pickup availability
HI-RES AUDIO CERTIFICATION
Using "filtering" technology, inspired design, and performance cues from the AlpineF#1Status Ultra Hi-Res system, the next-generation Alpine S-Series loudspeakers are now Hi-Res Audio Certified and can reproduce frequencies up to 40kHz. answer. This new benchmark in sound quality elevates the S-Series speakers, resulting in more accurate, natural sound at an entry-level price.
CLEAN AND ACCURATE AUDIO

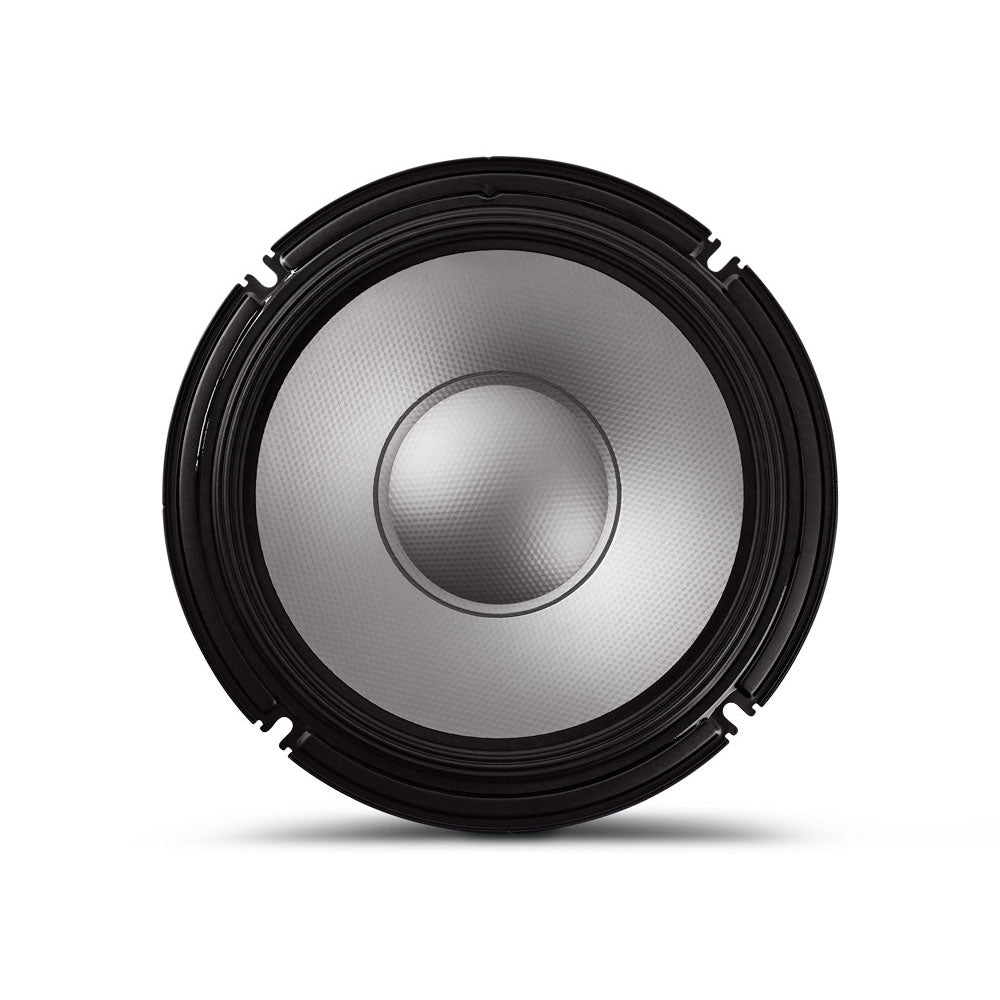

Made from a unique blend of polypropylene, fiberglass, and mica cone materials, the S2-S80C is designed for lightweight construction, high output, and low distortion, delivering a clean, accurate audio experience.

NEW LINE OF 2023 S-SERIES LOUDSPEAKERS
The S-Series line of sound systems is truly the starter package for music lovers, delivering incredible sound quality, thumping bass, and even Hi-Res in-vehicle audio playback at a very affordable price. S Series loudspeakers are available in 9 different configurations.

Specifications:
- Woofer Size: 20cm (8”)
- 2.5cm (1“) Tweeters with Swivel Housing
- Hi-Res Audio Certified (up to 40kHz)
- Poly Propylene, Glass Fiber, and Mica Cone Material
- Lightweight Design with High Output and Low Distortion
- High-Amplitude Multi-Roll (HAMR) Surround
Power Handling
-
Peak Power: 260 Watts
-
RMS Power: 85 Watts

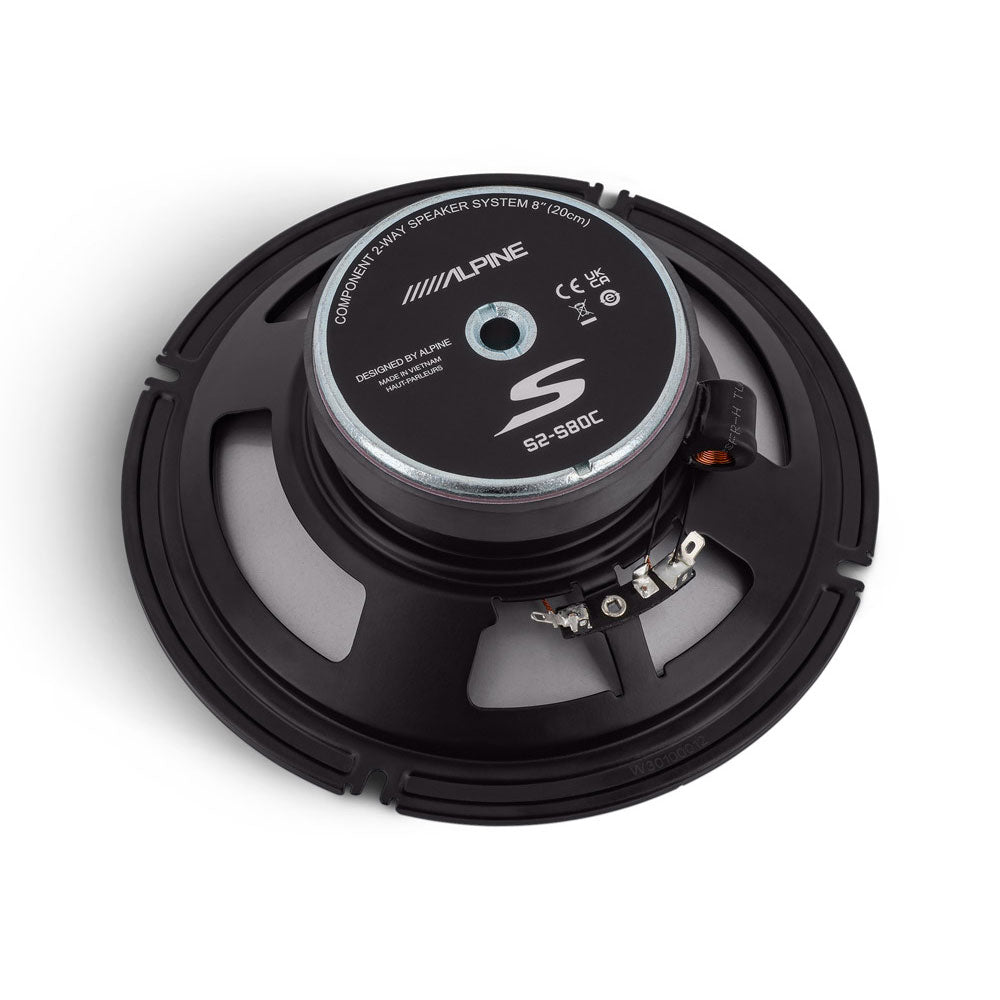

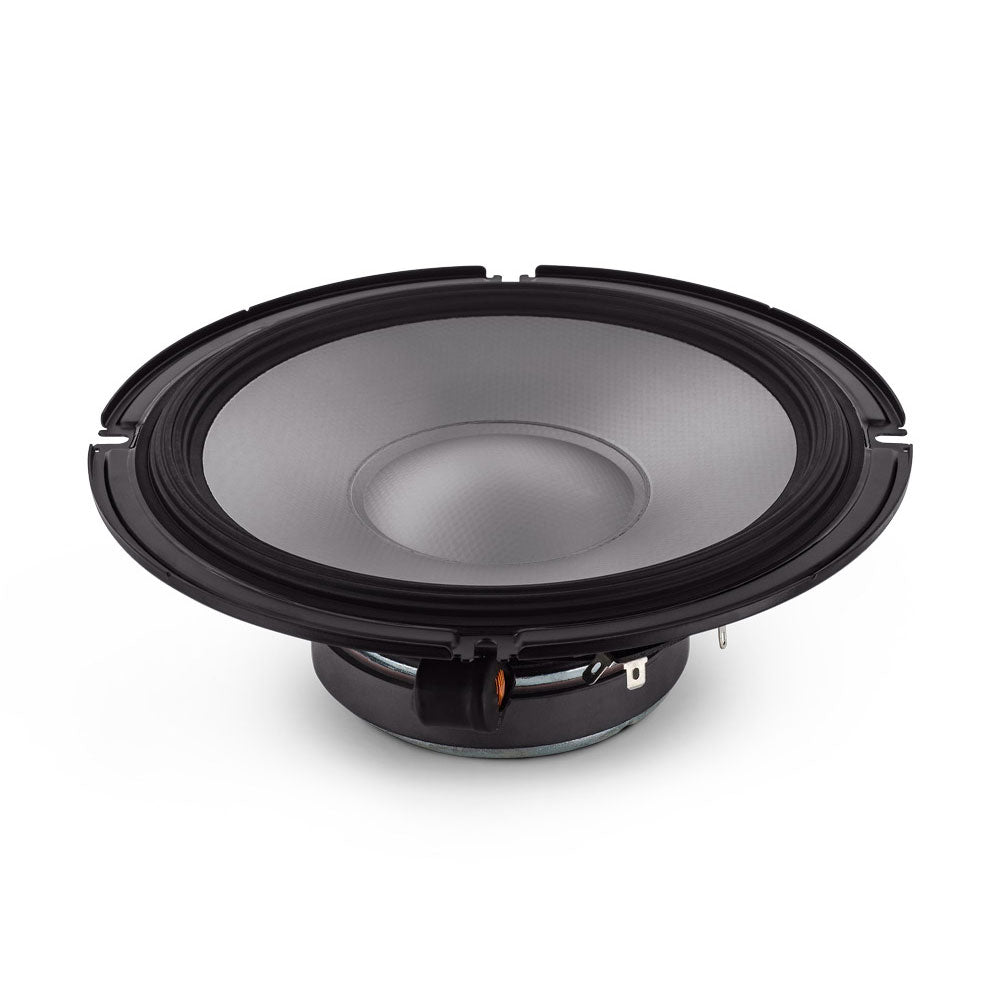

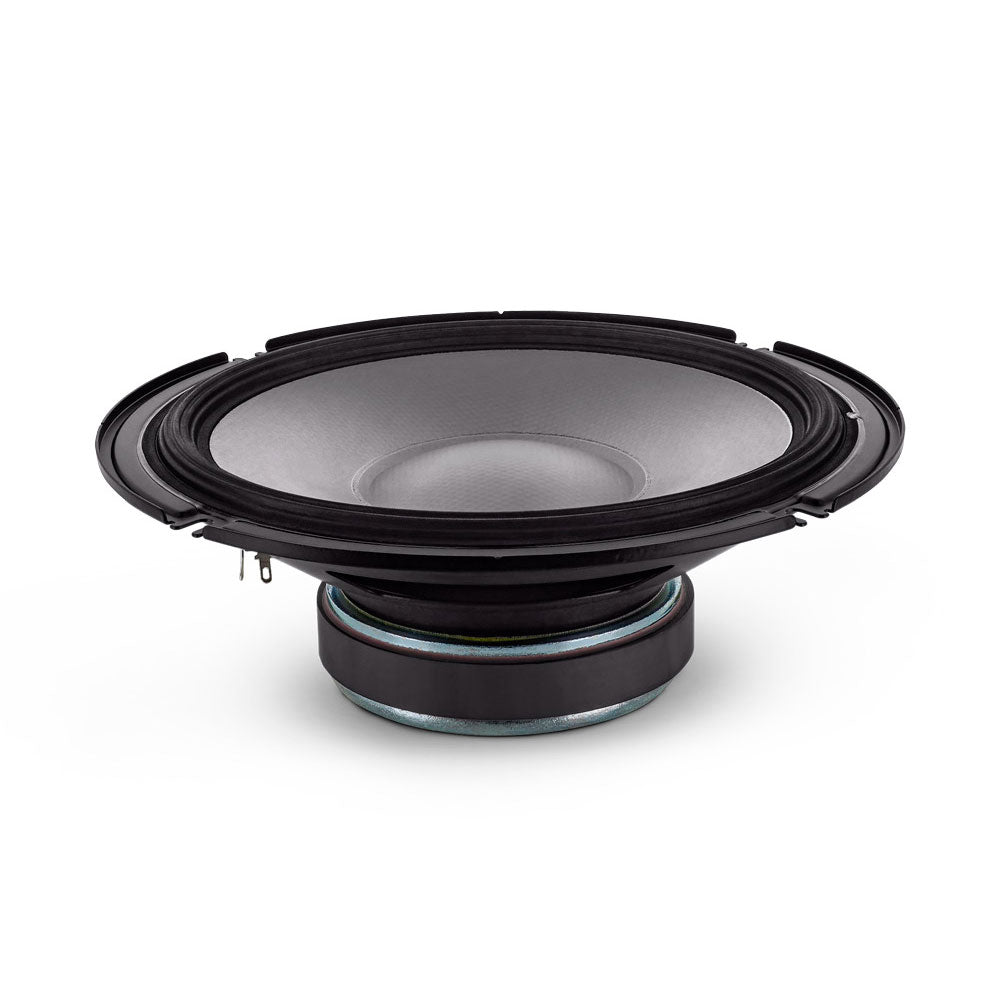

Dimensions Woofer
-
Cutout Diameter: 178.4mm circle
-
Mounting Depth: 66.4mm
-
Mounting Height: 7.4mm
-
Magnet: 100.0mm

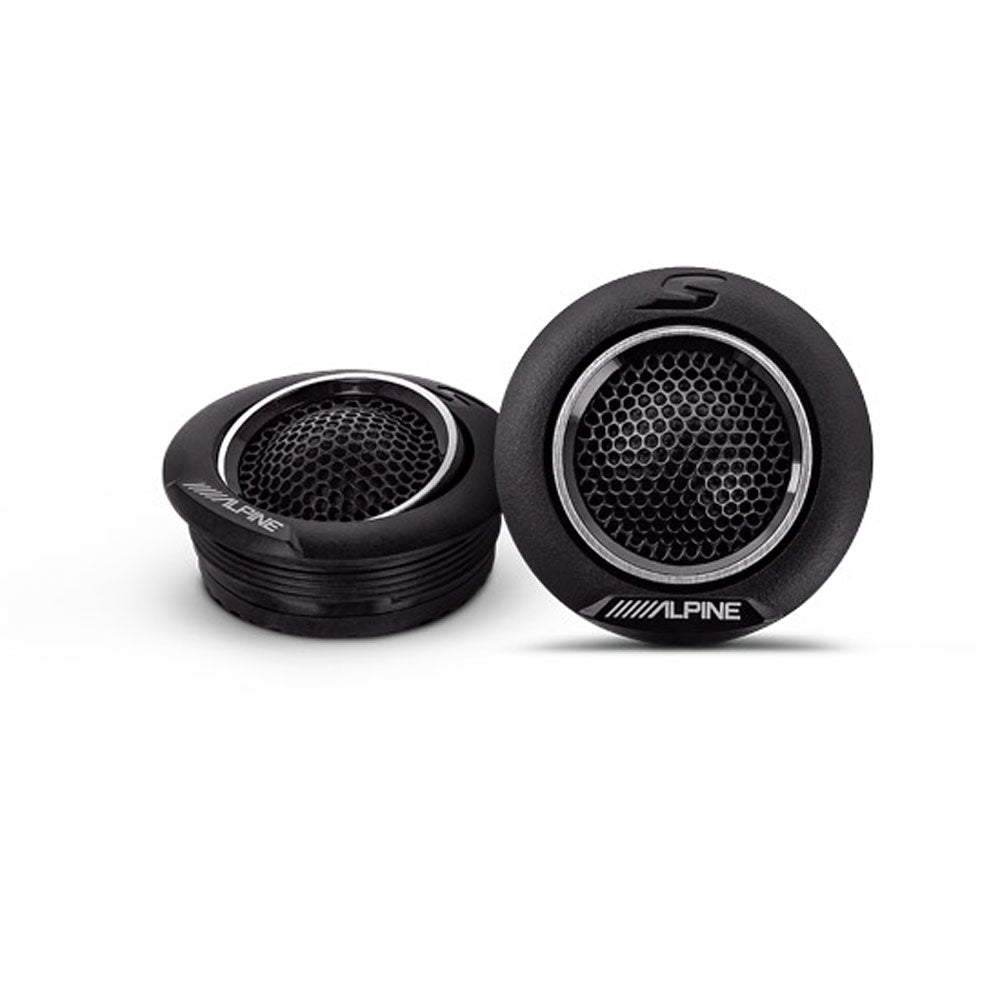

Dimensions Tweeter
-
Cutout Diameter (flush-mount): 51mm
-
Mounting Depth: 17.6mm
-
Mounting Height: 8mm
General
-
Frequency Range: 55 Hz - 40 kHz (Hi-Res Audio Certified)
-
Impedance: 4 Ohms
-
Sensitivity: 89 dB/W
- Grilles are not included
