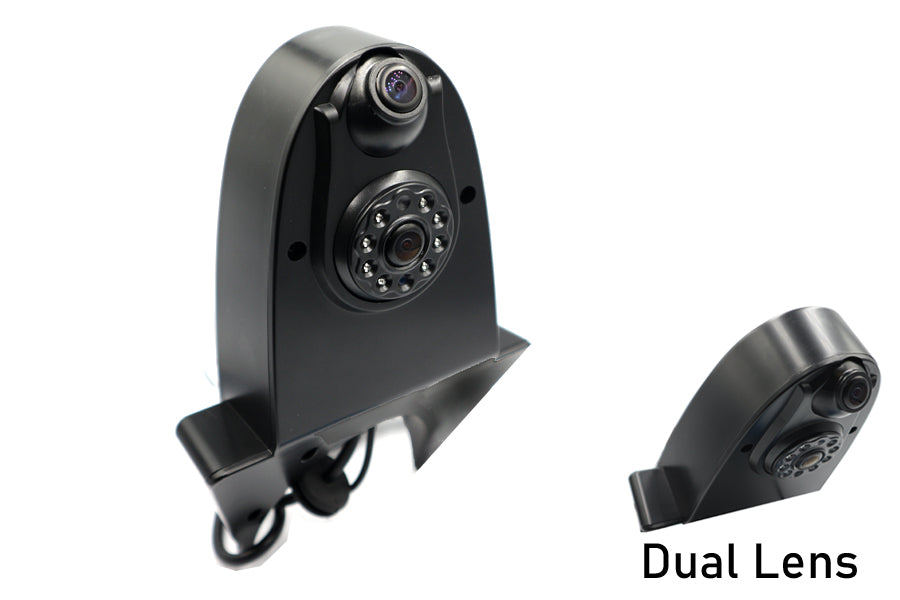

Black Universal Fit Van Extended Roof Top (DUAL LENS) Reverse View Camera (NTSC)

Universal fit Van extended roof top (DUAL LENS) reverse view camera.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

Driving Camera with backward vision

• Image Sensor: 1/3" CMOS4089 / SONY CCD
• Ball camera design can be adjustable 30° upward to downward
• Lens: 2.21mm (4 Layer Glass Lens)
• Effective Pixels: 756x504/1020×508 pixels
• Signal System: NTSC / PAL system optional
• Resolution: 480TVL/700TVL
• Viewing Angle: Vertical 65°/ Horizontal 80°/ Diagonal 105°
• Minimum Illumination: 0.01 Lux
• White Balance: Auto
• Exposure Control: Auto
• Gain Control: Auto
• Frame Rate(fps): 60
• Gamma value: 0.45
• S/N Ratio: 46.5dB
• Waterproof Resistance: IP68K
• Connectors: RCA / 4PIN optional
• Operating Temperature: -20℃~+75℃ RH95% Max.
• Storage Temperature: -30℃~+85℃ RH95% Max.
• Power Consumption: <50mA@12V
• Voltage Input: DC9V/12V

Backup Camera

• Image Sensor: 1/3" CMOS4089 / SONY CCD
• Ball camera design can be adjustable 20° upward to downward
• Lens: Ultra-Wide Viewing Angle 1.9mm
• Effective Pixels: 756x504/1020×508 pixels
• Signal System: NTSC / PAL System optional
• Resolution: 480TVL/700TVL
• Viewing Angle: Vertical 115°/ Horizontal 150°/ Diagonal 195°
• Night Vision: 8pcs infrared LEDs
• Minimum Illumination: 0Lux (LED ON)
• White Balance: Auto
• Exposure Control: Auto
• Gain Control: Auto
• S/N Ratio: ≧48dB
• Video output: 1Vp.p 75ohm
• Waterproof Resistance: IP68K
• Vibration Rate: 10G
• Built-in Microphone: Support
• Connectors: RCA / 4PIN optional
• Parking line Off/On Switching: Support
• Operating Temperature: -20℃~+75℃ RH95% Max.
• Storage Temperature: -30℃~+85℃ RH95% Max.
• Voltage Input: DC12V (DC12V/24V Optional)
• Voltage Input: DC9V/12V

PLEASE NOTE:

• Please check that the image of the camera and the contents match what is needed for your vehicle installation.
