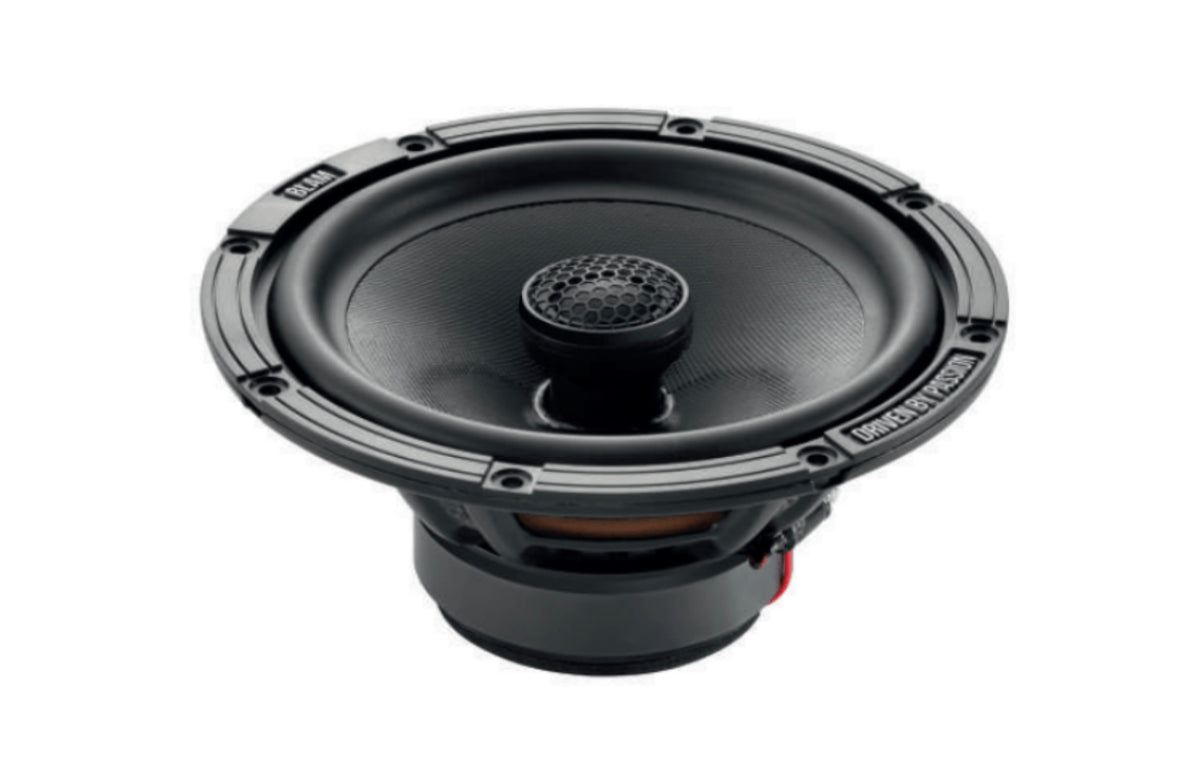

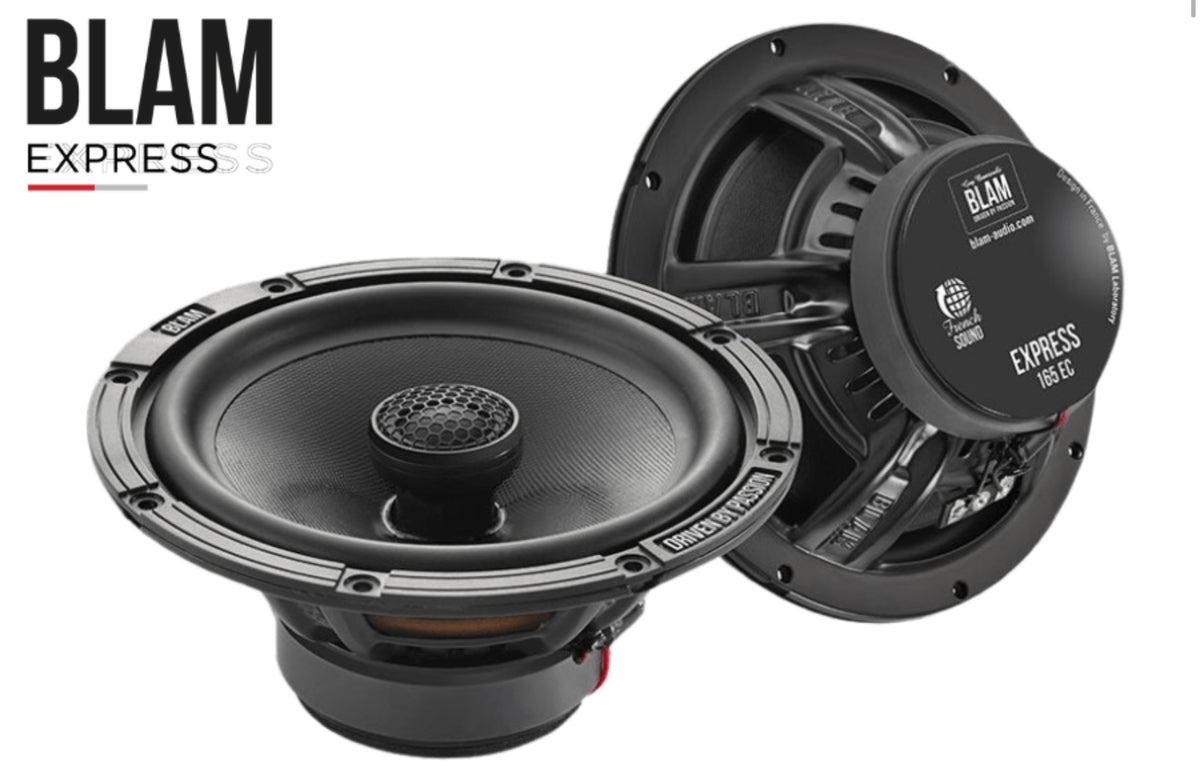

BLAM EXPRESS 165EC 165mm (6.5 Inch) 2ohm Coaxial Car Audio Speakers (PAIR)

BLAM EXPRESS 165EC 165mm (6.5 Inch) 2ohm Coaxial Car Audio Speakers (PAIR)

Regular price £77.99 GBP
Regular price Sale price £77.99 GBP
Sale Sold out
Shipping calculated at checkout.
Discover the Express 165 EC from BLAM, an efficient 6.5" (16.5cm) coaxial system with 2 Ω impedance. This high-quality set consists of two 165 mm woofers, coaxially mounted 20 mm soft dome tweeters and integrated 6 dB/octave high-pass crossovers. You will be impressed by the maximum output of 120 W and the rated output of 60 W. In addition, the system offers an impressive frequency range of 65 Hz - 31 kHz and a sensitivity of 93.5 dB. Whether woofer or tweeter, each element is carefully designed and equipped with special features to deliver the best possible acoustic performance.

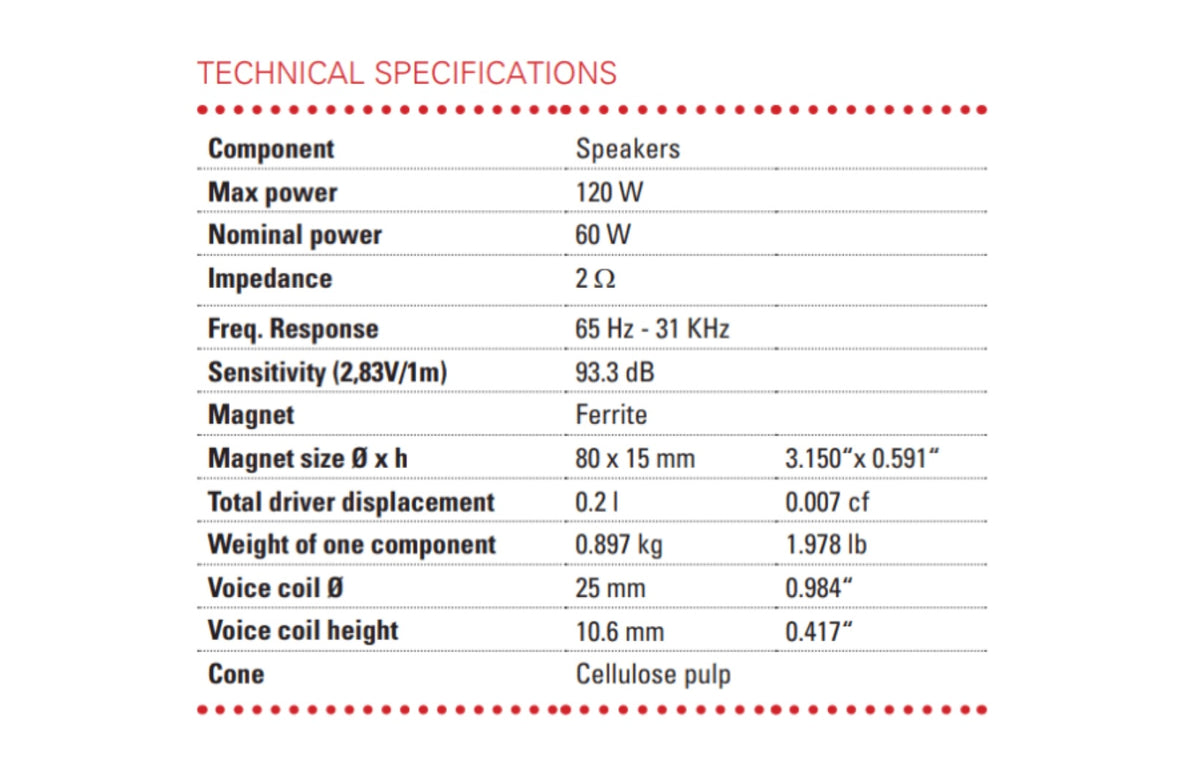

Technical features
  • 6.5" (16.5cm) coaxial system
  • Maximum power 120 W
  • Rated power 60 W

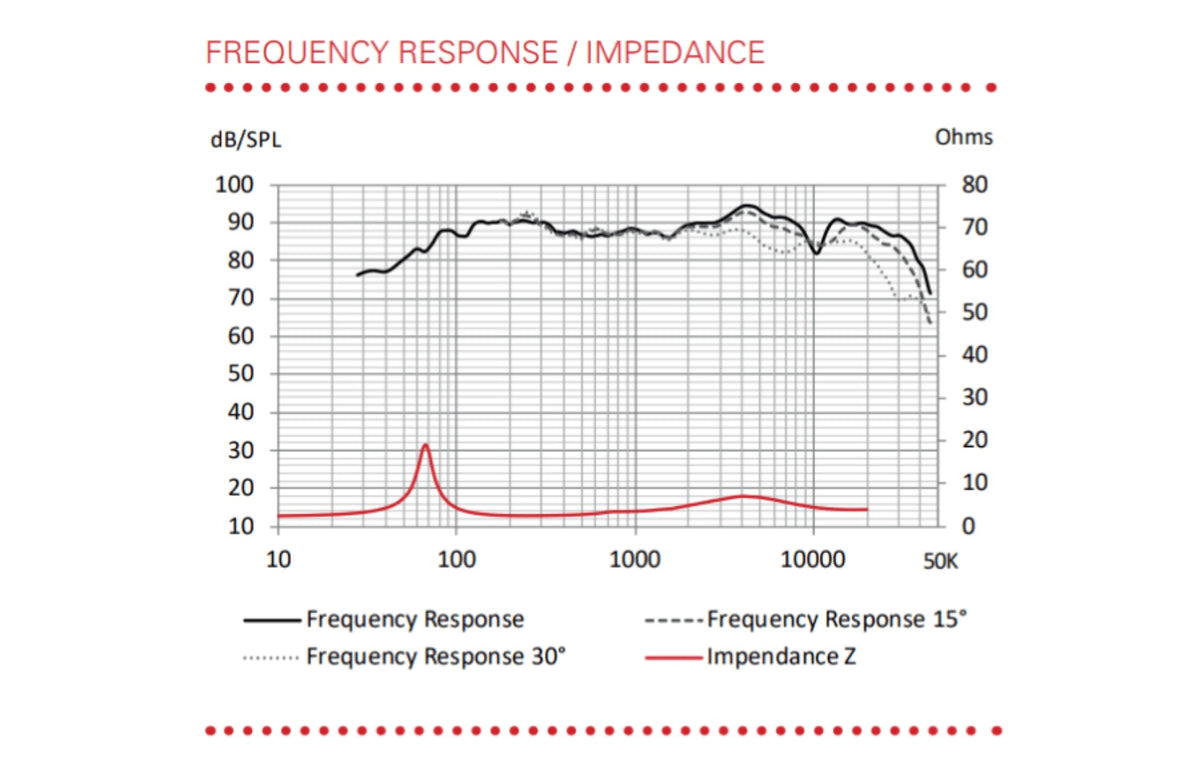

  • Frequency range 65 Hz - 31 kHz
  • Sensitivity 93.5 dB
  • Impedance 2 Ω

Characteristics


Low-midrange driver

  • Specific punched steel basket
  • Butyl rubber surround
  • 25 mm (1") voice coil with Kapton carrier
  • Oversized magnet 80mm x 15mm (3.1" x 0.6")

Tweeter

  • 20 mm (3/4") high quality soft dome tweeter
  • N 38 neodymium motor
  • 6 dB/octave high-pass integrated crossover

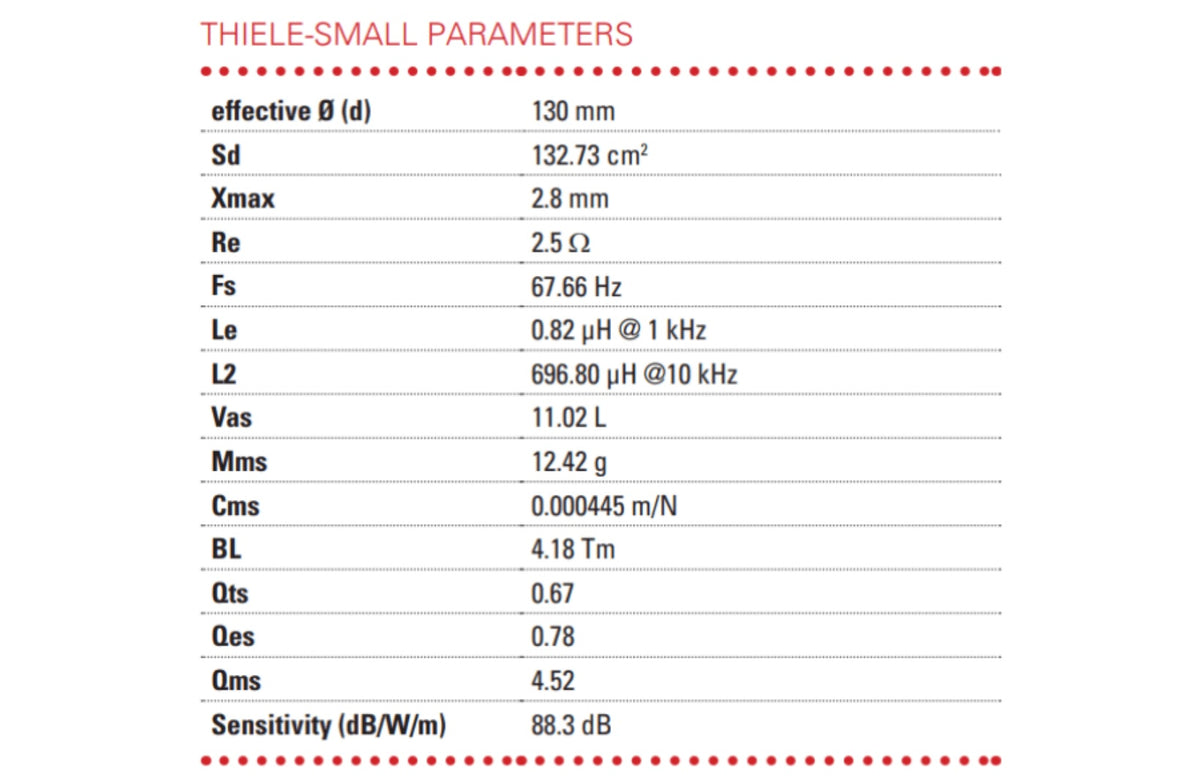

Parameters
  • effective Ø (d) 130 mm
  • Sd 132.73 cm2
  • Xmax 2.8 mm
  • Re 2.5 Ω
  • Fs 67.66 Hz
  • Le 0.82 µH @ 1 kHz
  • L2 696.80 µH @10 kHz
  • Vas 11.02 L
  • Mms 12.42 g
  • Cms 0.000445 m/N
  • BL 4.18 Tm
  • Qts 0.67
  • Qes 0.78
  • Qms 4.52
  • Sensitivity (dB/W/m) 88.3 dB
Supplied accessories:
  • Mounting screws
  • User’s manual
