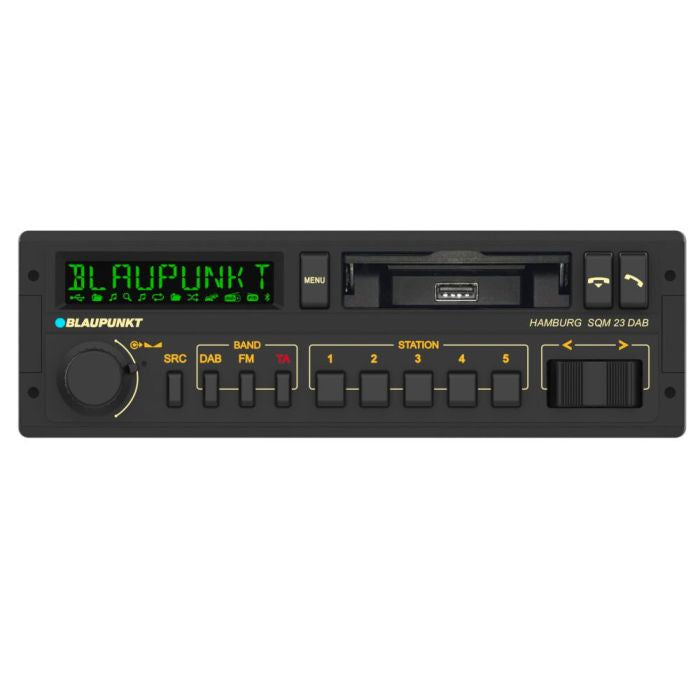

BLAUPUNKT HAMBURG SQM 23 DAB - Bluetooth DAB Media Player Retro Car Stereo

Specifications

• RADIO ANALOG / DIGITAL
• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
• World Tuner (switchable): EU, USA, South America, Thailand
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: 15x FM, 10x AM, 15x DAB
• Station memory banks: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
• Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3
• Station display (PS)
• Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
• Display DLS/ ENSEMBLE/ SERVICE
• Alternate frequency function (AF)
• Traffic Radio (TA) FM/ DAB: Yes/ Yes
• Automatic time adjustment
• Enhanced Other Networks (EON)
• Regional function (REG)
• Program type identifier (PTY)/ PTY Seek: Yes/No
• Travelstore/ Number of Presets for Travelstore: Yes/ 5x FMT, 5x AMT
• Band Scan/ Preset Scan: Yes/ No
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM)
• Hi-Cut (FM) (multi-level switchable)
• DAB-DAB Service following
• DAB-FM Service following
• Service search
• Ensemble/ Service selection: Yes/ Yes
• Ensemble/ Service browsing: No/ Yes
• Alphabetical Service list DAB
• Frequency response FM  (Hz) – 3 dB: 30 – 15.000
• Frequency response DAB (Hz) +/- 3 dB: 20 – 20.000

MEDIAPLAYER

• AUX-IN/ automatic detection/ activation: No
• USB front:  (type A, recessed jack)
• USB rear: (type A, cable)
• Memory card reader: No
• Concealed front inputs: (USB usable with flap closed)
• Compatible file system of external storage devices: FAT16, FAT32, exFAT
• Maximum storage size of external storage devices: > 128 GB
• Maximum file/folder count of external storage devices: > 30.000
• CD-/DVD-loader: No
• Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
• Hi-Res Audio playback: No
• Display options: ID3V2 (title, artist, album), folder, file, playtime
• Folder & file browsing
• iPod, iPhone control (iAP2, Lightning/ USB-C)  (USB front and rear)
• Shuffle playback folder/ media: Yes/ Yes
• Repeat Title/ Folder/ All
• Introscan: (4- 60 seconds adjustable)

BLUETOOTH®*

• Phone call
• Internal microphone
• Connectivity ext. microphone
• Answer/ reject call
• Access phonebook(max. 1000 numbers)
• Audio streaming
• Audio streaming ID3 track display: (Title, Artist, Album, Playtime)
• Voice assistant access (e.g. Siri, Google, Alexa)
• Cell phone navigation audio mix: No
• Auto wake-up on call: (when radio off + ignition on), deactivatable
• Fast pairing without PIN
• Automatic reconnection: last 5 devices
• Bluetooth version: 5.0, compatible with V4.2 and V2.1 +EDR
• Number of paired devices: last 5
• No. of devices connected at the same time: 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC
• *Availability/ support of functions depend on the phone/ app used!

SOUND

• Equalizer Number of bands/ design/ Q-filter: No
• Bass/ treble adjustment: Yes / yes (+/- 7 steps)
• Source specific bass/ treble adjustment
• Balance/ fader: Yes / yes (+/- 7 steps)
• HPF/ LPF: No
• Loudness
• Sound Presets: (Rock, Pop, Classic)
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out: 2 (RCA, gain/ frequency variable)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)

GENERAL

• Display: LCD, negative, anti-reflective, wide angle, alphanumeric/ symbols
• Scrolling text: Yes (once, repeatedly)
• Illumination color display: Green, yellow, red, violet, blue, skyblue, white
• Illumination color keys: Amber, Modelled on original light bulb lighting
• Day/ Night mode (manual/ via dimmer connection)
• Nightdesign if powerd off (buttons)
• Brightness: Multi-level, variable
• Time display
• HMI languages: English, German
• 1 hour off timer if ACC off: Yes, deactivatable
• Low standby current: (< 3,5 mA )

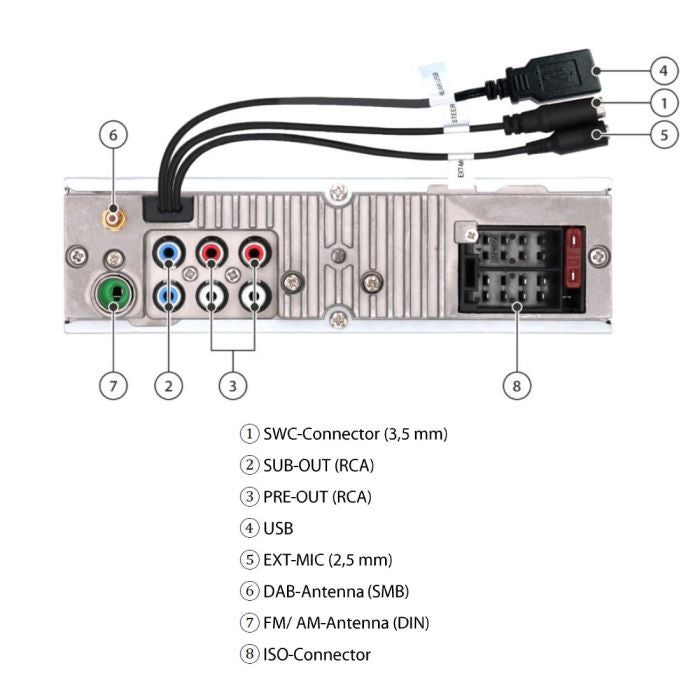

• Antenna inputs: FM DIN/ ISO (Adaptor), DAB SMB (with 12 V phantom power)
• Telephone mute
• Ext. handsfree microphone connector: 2,5mm
• Remote control: Yes (IR input for card remote and old RC-10 remote control)
• Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)
• Variable scan time: (4, 8, 12, 60s)
• Confirmation beep: (deactivatable)
• Control panel type: Fixed panel
• Color panel/ decor ring: Black/ Black
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Demo mode
• Weight: approx. 0.65 kg
• Dimensions: 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 187mm x 11mm (H x B x T , front w/o keys)
• Operating voltage/ power consumption: 10.5 – 14.4 V/ < 10A in operation, 10 sec. after ACC power off: < 3.5 mA

In the Box:

• User manual: Yes (DE, EN, DA, NL, FR, ES, PT, IT, PL, CS)
• External BT microphone
• Unlocking tool: Yes
• Connectors (ISO A, B)
• Antenna adaptor (DIN/ ISO)
