Alpine ILX-705DM - 7” Digital Media Bluetooh Apple CarPlay/Android Auto

Alpine ILX-705DM - 7” Digital Media Bluetooh Apple CarPlay/Android Auto

£699.99 GBP
£699.99 GBP
Sale Sold out

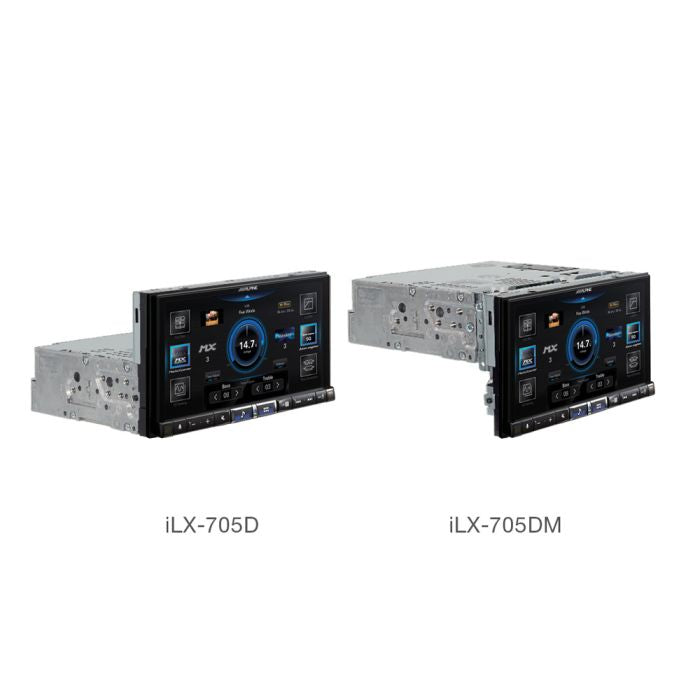

NEXT GENERATION 2DIN DIGITAL MEDIA STATION

The iLX-705DM is the official successor of the highly popular iLX-702D Digital Media Station. We further improved the product with a ton of new features, more compatibility, a HD screen and the world’s first use of a Class-D amplifier inside a Head Unit.

DRIVE-ASSIST CAMERAS

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.

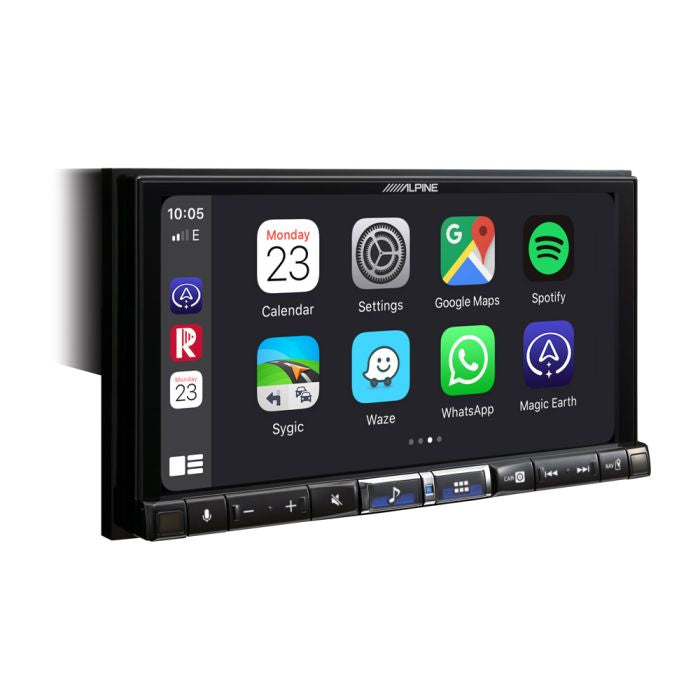

WIRELESS APPLE CARPLAY & WIRED ANDROID AUTO

The iLX-705DM “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road.

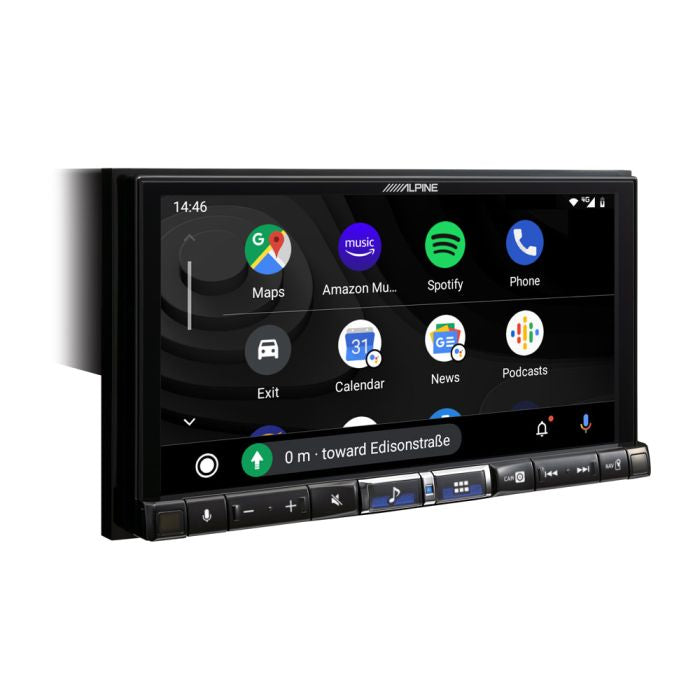

Android Auto allows you to use hundreds of useful smartphone apps with your Alpine system (wired connection). There are many popular navigation apps available, such as Google maps, Sygic, Waze, Magic Earth – just to name a few

Specifications:

  • 4x 50 Watts Class-D High Power Amplifier
  • 7-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
  • Display angle adjustable after installation
  • 3 PreOuts (4 V, Front / Rear / Subwoofer)
  • 1 A/V AUX Input (3.5 mm micro jack)
  • 1 HDMI input / 1 HDMI output
  • 2 USB Ports (1x USB data port / 1x USB charging)
  • Steering Wheel Remote Control Ready
  • Vehicle Display Interface Ready (UART connection)
  • Remote Control Ready
  • 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
  • Camera Distance Guides (adjustable)
  • Live Contrast Adjustment
  • Menu Language: 24 Languages
  • Auto Dimmer
  • Anti-theft security code
  • Engine Start-Stop unaffected

Screen

  • Screen Size: 7-inch Capacitive WXGA
  • Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Colour System: NTSC, PAL
  • Max Power Output Ratings
  • Max Power Output: 4x 50 W

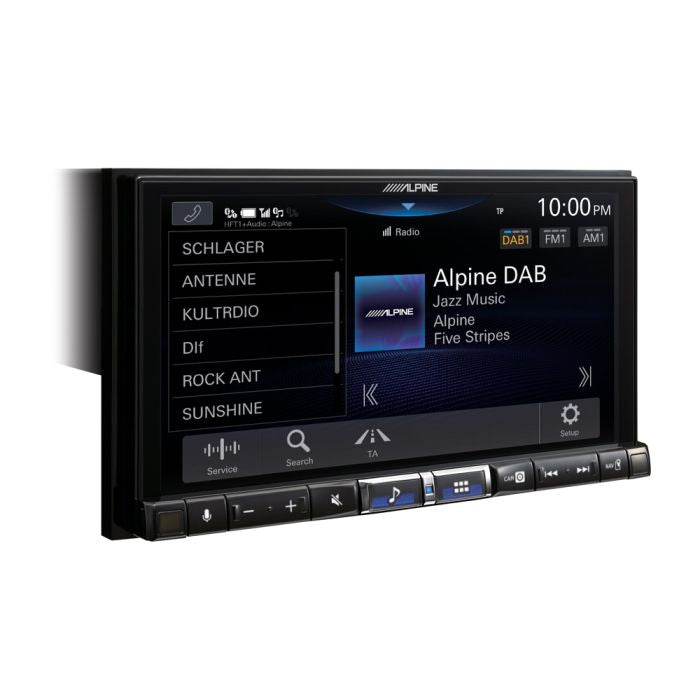

Radio / DAB Tuner

  • FM Tuning Range: 87.5 - 108.0 MHz
  • AM Tuning Range: 531 - 1,602 kHz
  • DAB band III: 174 – 240 MHz
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
  • WiFi
  • Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
  • Channels: 1 – 13 ch (2.4 GHz)
  • Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

  • USB Requirements: USB 2.0
  • USB 1: data port / 2,400 mA (Mass Storage Class)
  • USB 2: charging port / 1,500 mA (CDP support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT16 / FAT32 / exFAT
  • FLAC, MP3, WMA, AAC, WAV, APE Decoding
  • Video Playback: MP4, MOV, FLV, MKV compatible
  • Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1 kHz): 0.005%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 95 dB
  • GPS / Glonass
  • GPS / Glonass compatible navigation antenna included
  • GPS frequency: 1575.42 +/- 1.023 MHz
  • Reception sensitivity (search): - 136 dB max

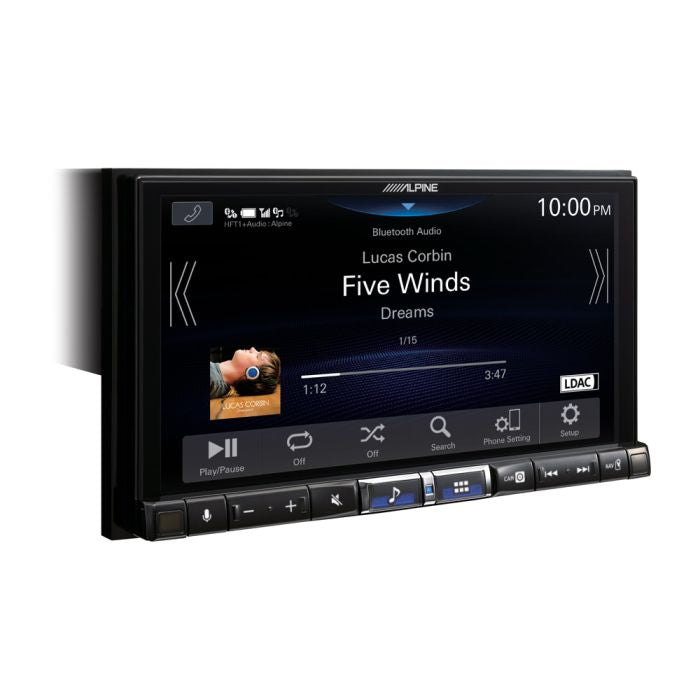

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V4.2
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)
  • SPP (Serial Port Profile)
  • Supports LDAC Audio Codec

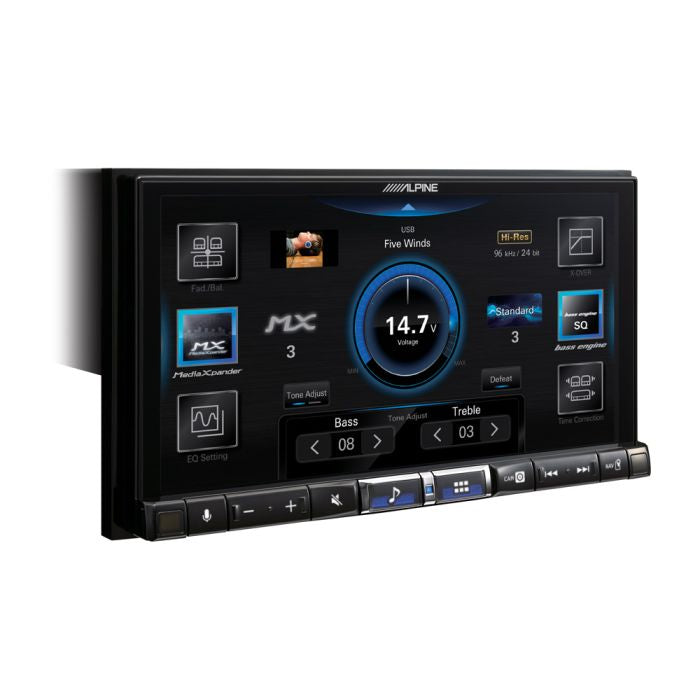

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • BASS ENGINE SQ: 5 Modes, Level 0 to +6
  • For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
  • HDMI Section
  • Input Format 720p / 480p / VGA

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10k ohms

Dimensions

  • Weight: 1.4 kg
  • Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
  • Display Size (W x H x D) mm: 171 x 96 x 18 mm
