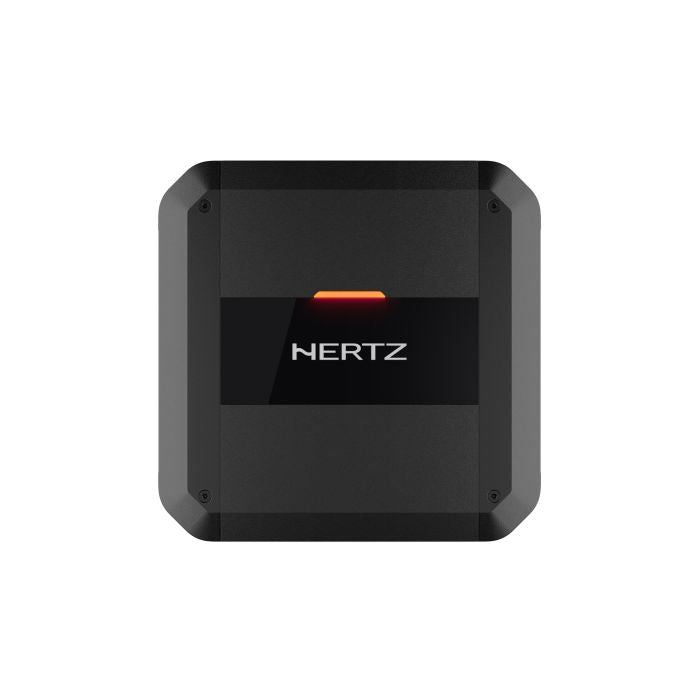

Hertz Dieci DP 1.500 - Compact Class D Monoblock Car Amplifier 1180W

A compact class D monoblock that packs a punch while delivering high-quality sub-bass. Up to 280 watts RMS into 4 ohms.

Specification

• Channels: 1
• Amp class: D
• Nominal power supply voltage (fuse): 11 - 15 VDC (1 x 30 A)
• Operating power supply voltage: 6.5 - 17.5 VDC
• Idling current: 1 A
• Standby current draw: 50 uA
• Consumption, MIN load impedance (Max Musical Power): 21 A
• Remote IN: 4 - 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
• Efficiency: 86%
• Distortion - THD @ 100 Hz, 70% Rated Power: 0.2%
• Damping factor @ 1 kHz, 1W: 180
• Bandwidth @ -3 dB: 10Hz - 500Hz
• S/N ratio (A-weighted @ 1 V Input): 99 dBA
• Minimum load impedance @ 1 Ch: 2 Ω
• Adjustable Crossovers yes
• Output Power

Output power (RMS) @ 1% THD:

• 1Ch @ 4Ω 280 W x 1
• 1Ch @ 2Ω 500 W x 1

Output Power (RMS) @ 14.4 VDC, THD 10%:

• 1Ch @ 4Ω 350 W x 1
• 1Ch @ 2Ω 590 W x 1
• Total Power 1180 W

INPUTS / FILTERS

• Inputs Pre-In / Speaker-In
• Pre Out Full Range
• Pre-In sensitivity 0.32 - 8 VRMS
• Speaker-In sensitivity 1.6 - 40 VRMS
• Lo-Pass OFF / 50- 250Hz 24dB/Oct.
• Subsonic OFF / 25 Hz @ 24 dB/Oct.
• Phase 0 / 180°
• Bass Boost 50Hz 0 - 9 dB
• SUB Remote Volume Control HRC 02 -20 - 6 dB
