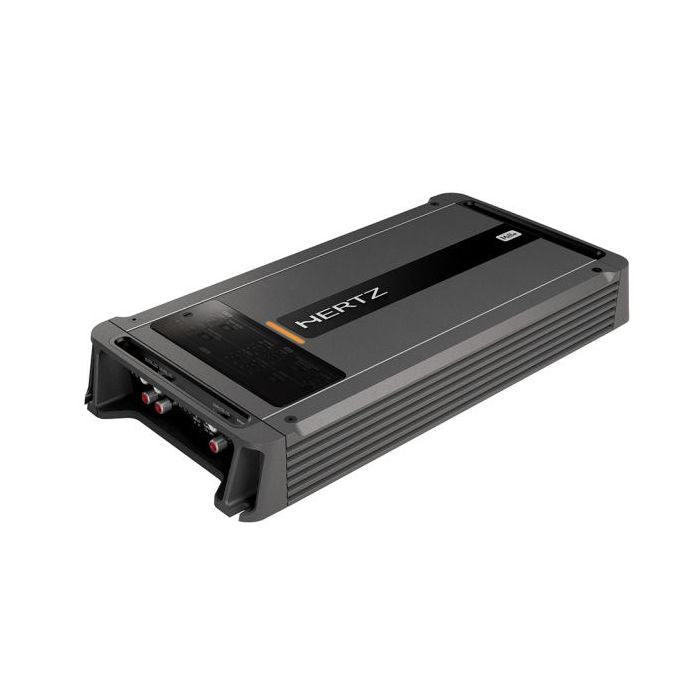

Hertz ML Power 5 - D-Class 5 Channel Car Amplifier 950 WRMS Total Power

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.  The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

General Specs

• Channels 5 - 3
• Power supply voltage: 11÷15 VDC
• Idling current: 3 A
• Idling current when off: 0.04 mA
• Consumption @ 1Ω, 14.4 VDC
• (Max Musical Power) 50 A
• Distorsion - THD (100 Hz @ 4Ω): 0.08 %
• Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz
• Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz
• S/N Ratio A & B Ch (A weighted @ 1 V) 100 dB
• S/N Ratio C Ch (A weighted @ 1 V): 106 dB
• Damping factor A & B Ch (100 Hz @ 4Ω): 50
• Damping factor C Ch (100 Hz @ 4Ω): 90
• Pre-In sensitivity: 0.2 ÷ 5 V RMS
• Pre-In impedance: 15 kΩ
• Speaker-In sensitivity: 0.8 ÷ 20 V RMS
• Speaker-In impedance: 470 Ω
• Load impedance:
• 5 Ch 4 x 2Ω + 1 x 2Ω
• 3 Ch 2 x 4Ω + 1 x 2ΩRemote In: 4 ÷ 15 VDC - 1 mA
• ART™: Automatic Remote Turn-On/Off with Speaker-In
• Fuse: 2 x 40 A
• Max size (mm/inches): 170 x 349 x 46.70 / 6.69 x 13.74 x 1.84
• Adjustable Crossovers

Output Power

• CEA 2006-A RATINGS
• RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V):
• 60 W x 4 Ch + 310 W x 1 Ch
• S/N Ratio (ref. 1 W output):
• 60 W Channel: 80 dBA
• 310 W Channel: 84 dBA
• OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
• 5 Ch - 70 W x 4 + 380 W x 1 (4Ω)
• 5 Ch - 100 W x 4 + 550 W x 1 (2Ω)
• 3 Ch - 200 W x 2 (4Ω) + 380 W x 1 (4Ω)
• 3 Ch -  200 W x 2 (4Ω) + 550 W x 1 (2Ω)
• Total Power RMS - 950 W

INPUTS / FILTERS

• Inputs: Pre IN / Speaker IN
• A Ch filters: Full / Hi-Pass / Band-Pass 40 ÷ 150 Hz (HI) 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
• B Ch filters: Full / Hi-Pass 80 ÷ 3.3k Hz @ 12 dB/Oct.
• C Ch filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct.
• Remote SUB volume: (-50 ÷ 6) dB
