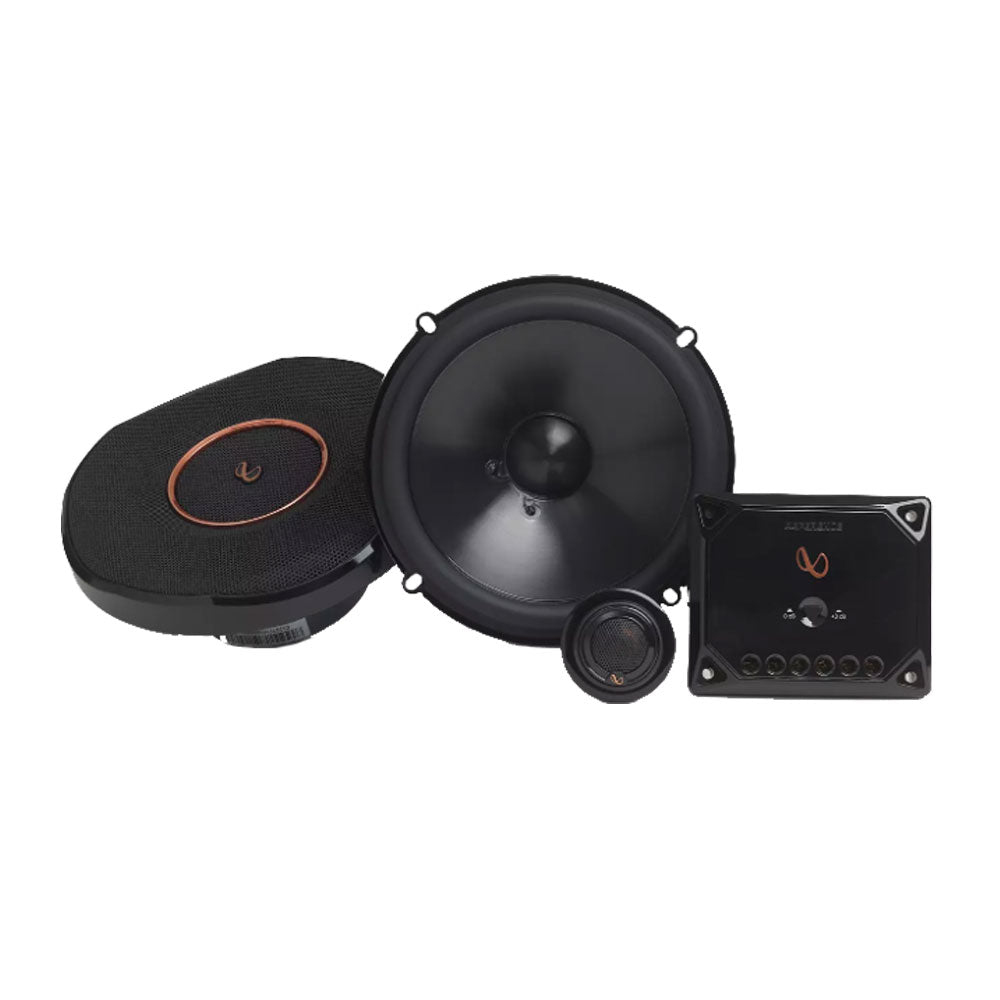

Infinity REF-6530CX 6-1/2" 2-Way Car Audio Component Car Speaker System

Accurate, High Performance Sound

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles.They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes – 3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers

Features

• Edge-driven, textile tweeters
• Adjustable tweeter output level
• Plus One™ woofer cone architecture
• Optimized Frame Size
• Competitive pricing

Features and Benefits

Edge-Driven, Textile Tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable Tweeter Output Level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.

Plus One™ Woofer Cone Architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive Pricing
Reference speakers provide step-up Infinity sound at mainstream prices.

Specifications

• Description: 6-1/2" (160mm) component speaker system
• Power Handling: 90W RMS, 270W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 53Hz – 21kHz
• Impedance: 3.0 ohms

Whats In The Box

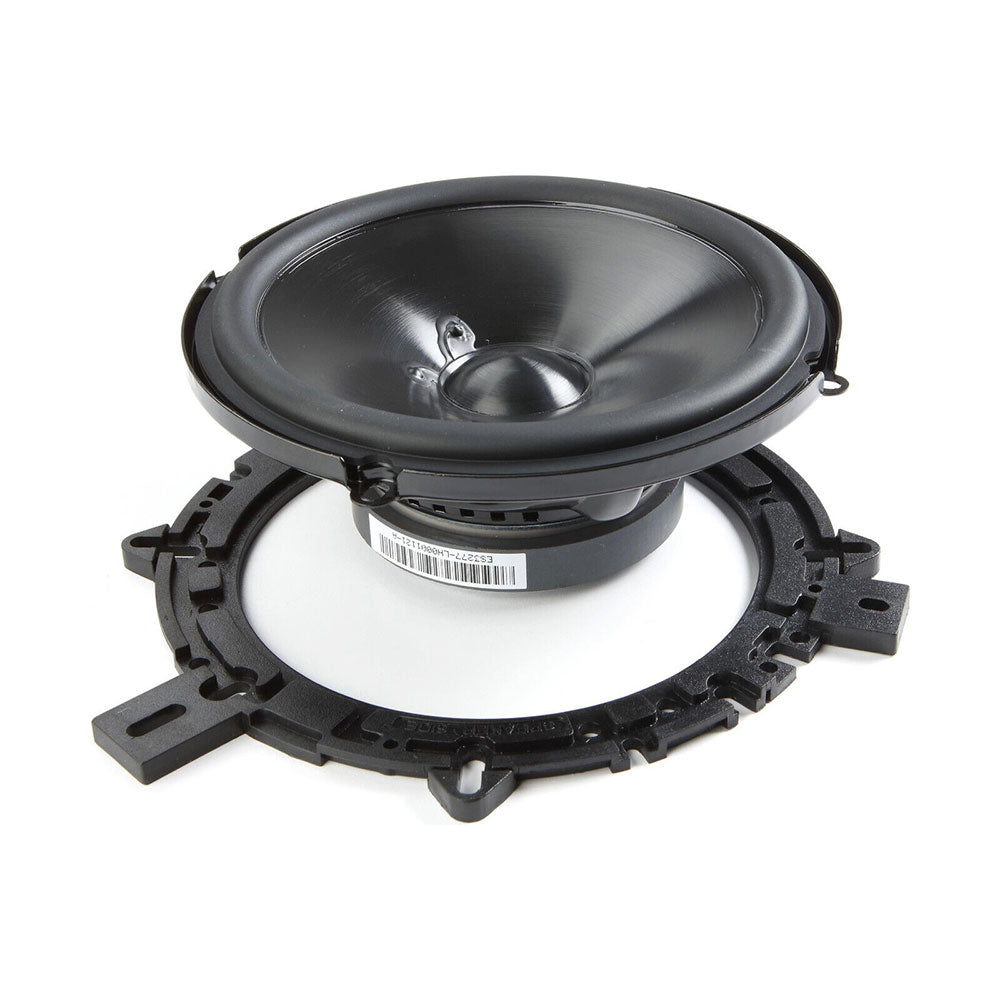

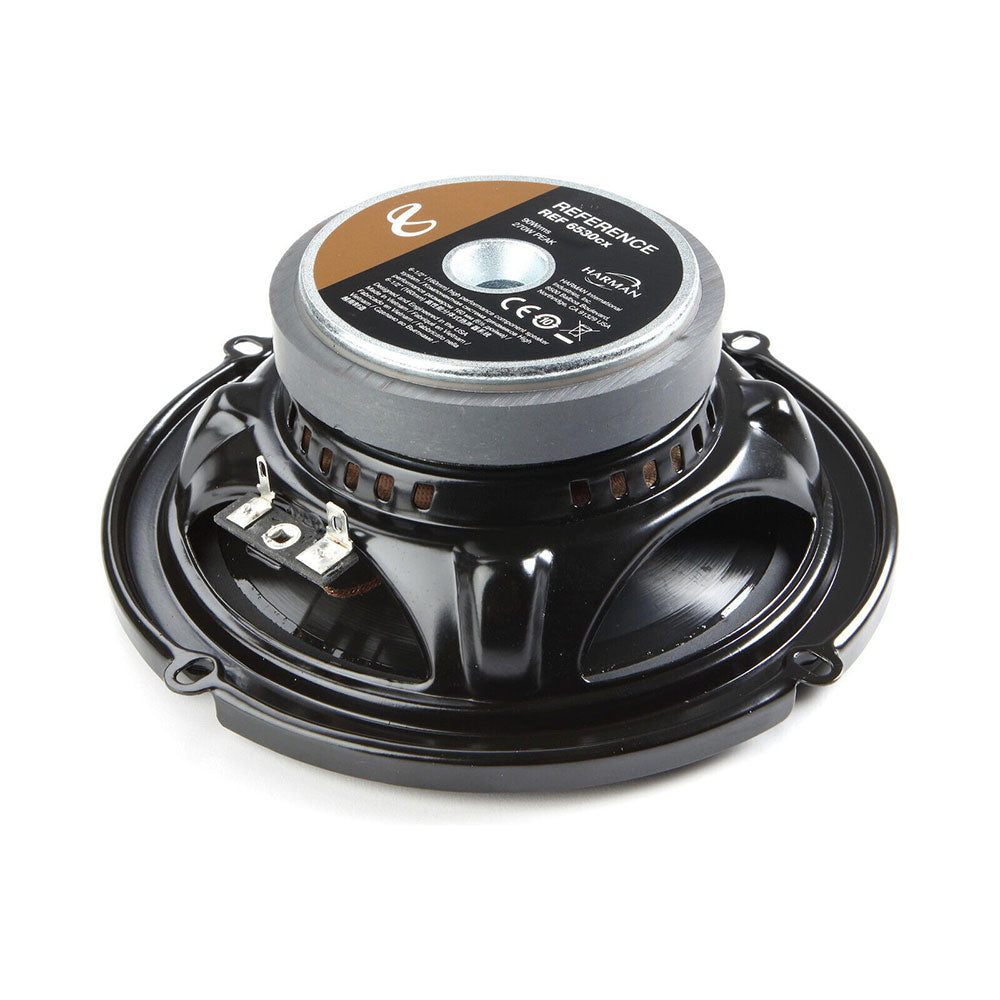

• 1 pair of woofers

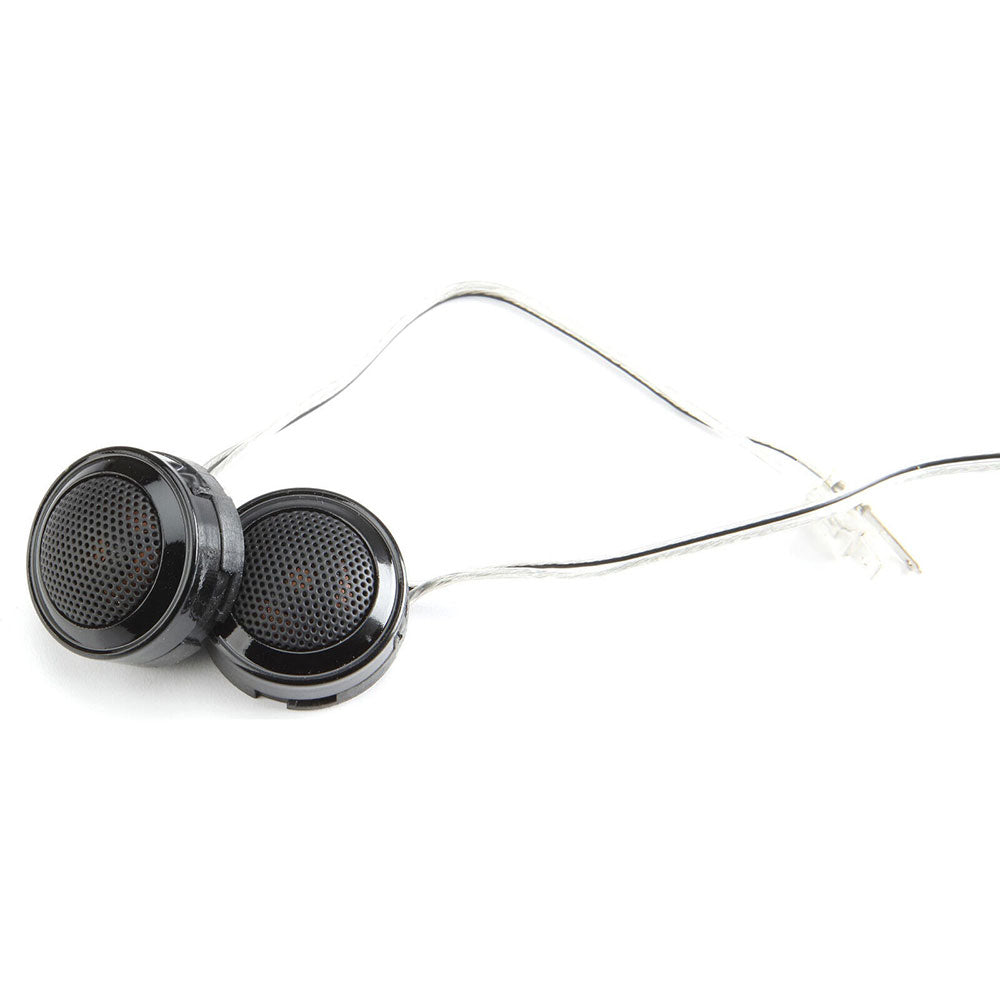

• 1 pair of tweeters
• 1 pair of speaker grilles

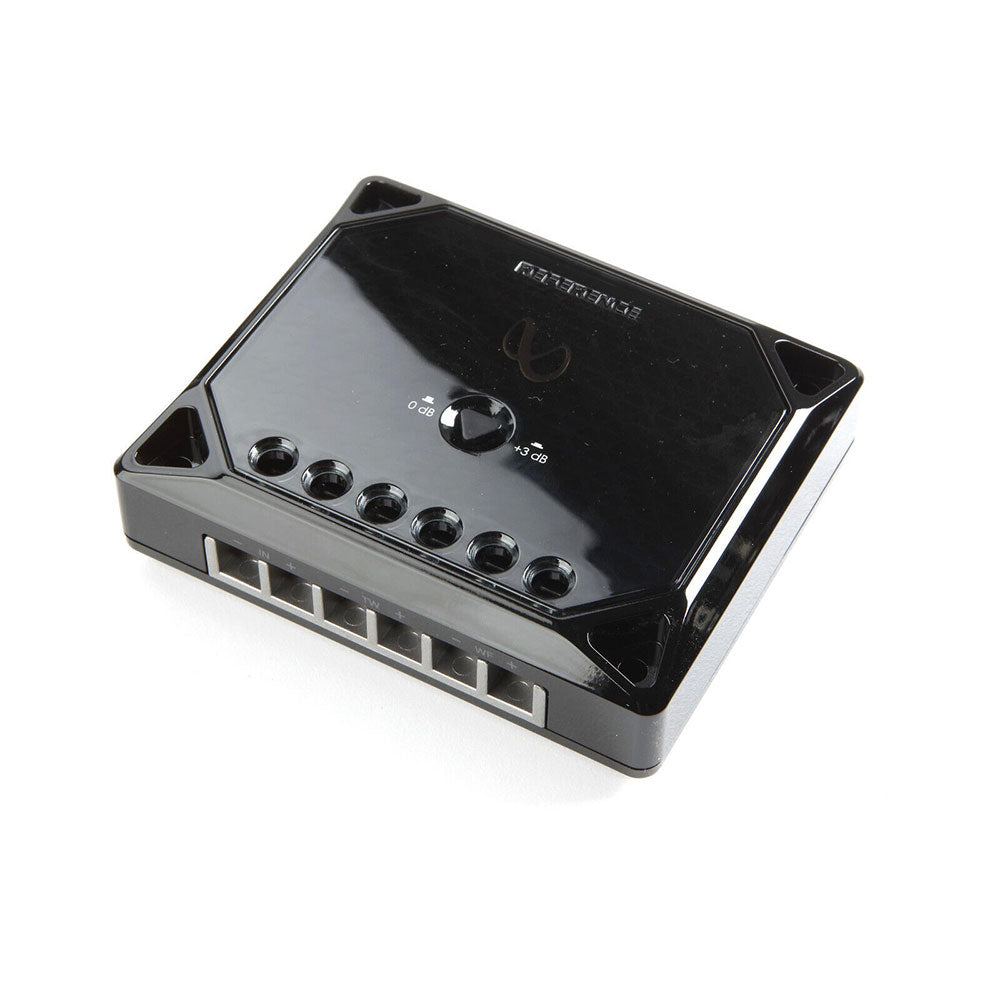

• 1 pair of crossovers
• 1 pair of woofer mounting
• brackets
• 1 pair of tweeter surface mount
• accessories
• 1 pair of tweeter flush mount
• accessories
• 1 pair of tweeter nuts
• 1 pair of tweeter flat washers
• 6 tweeter mounting screws
• 8 woofer mounting screws
• 8 crossover mounting screws
• 8 speed clips
• Foam mounting tape
• Owner’s manual
