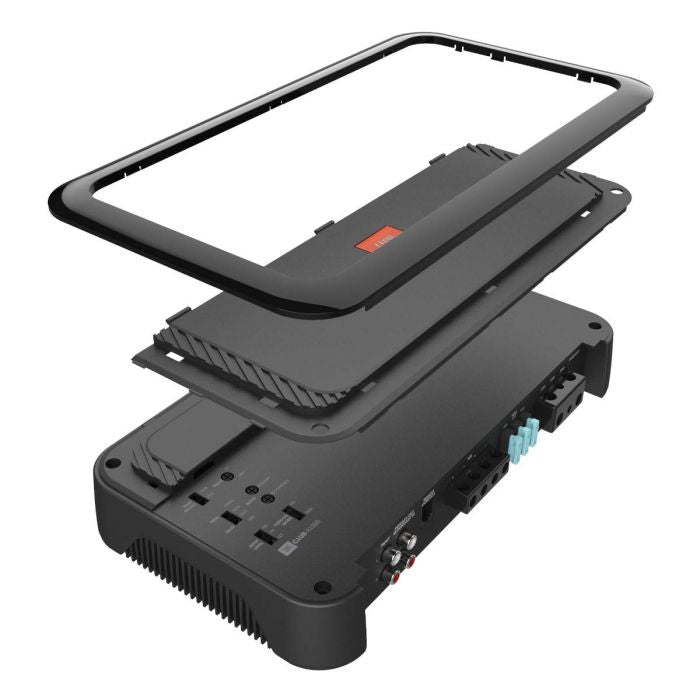

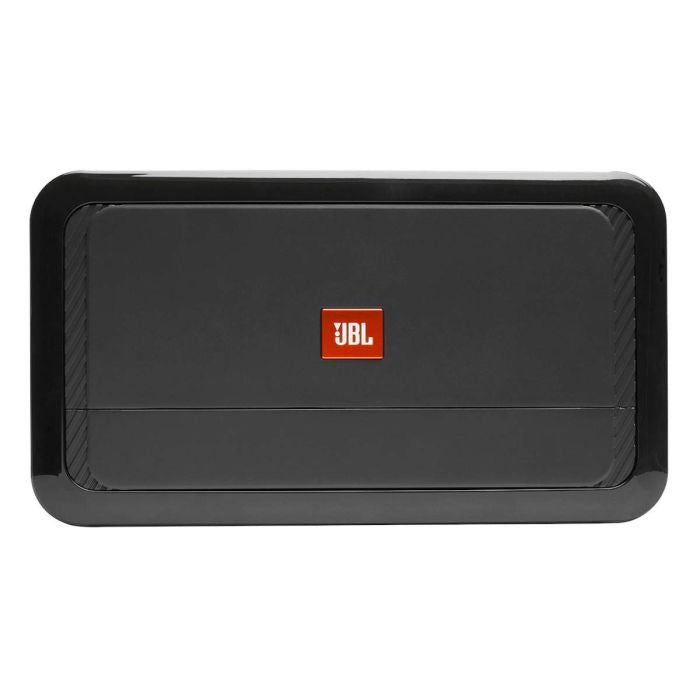

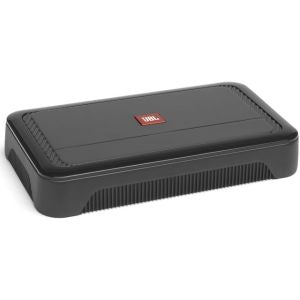

JBL CLUB-A1000 - Mono Car Amplfier D Class 1000W RMS

The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

• General Specifications
• 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)
• Class D amp technology
• frequency response 10-320 Hz
• variable low-pass filter (32-320 Hz, 12 dB/octave)
• variable bass boost (0-12dB at 45Hz)
• phase switch (0, 180 degrees)
• wired remote level control included

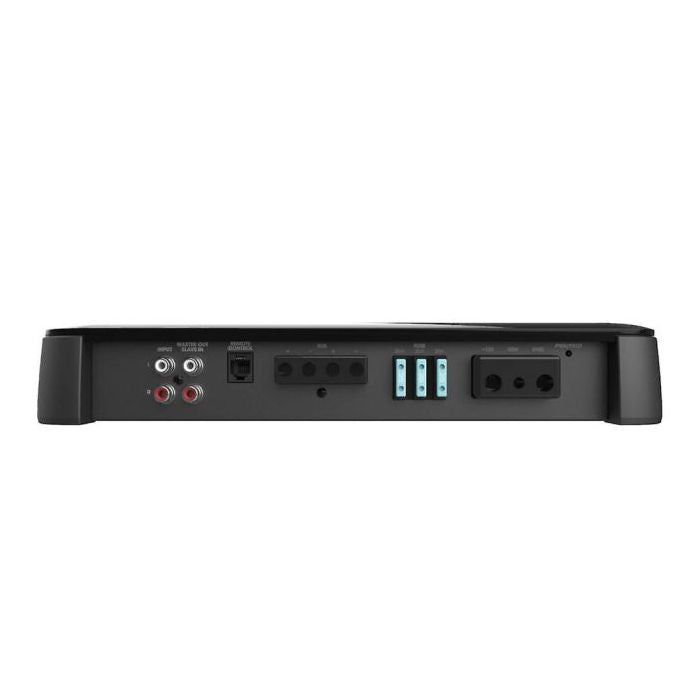

• preamp inputs and outputs
• speaker-level inputs (speaker wire-to-RCA adapters included)
• fuse rating 35A x 3
• WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8” x 2-1/16" x7-1/8”

In the Box:

• One Club A1000 mono subwoofer car amplifier
• Six 35A ATO fuses (3 installed, 3 spare)
• 2 Bare wire-to-RCA adapters
• Remote bass control module
• 16.5' Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner's Manual
• Two JBL stickers
