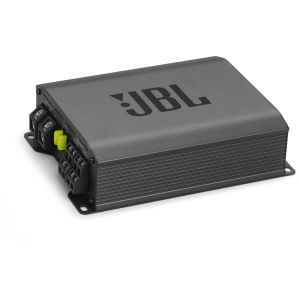

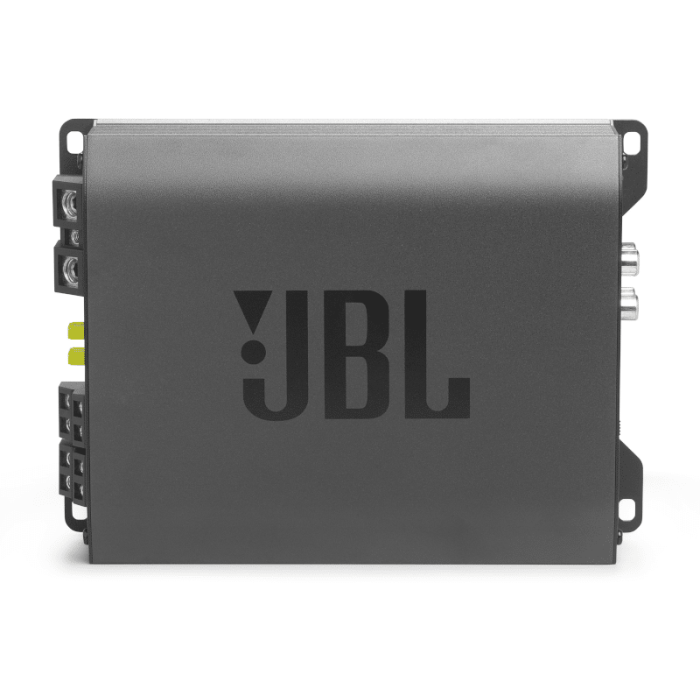

JBL STAGE GT60041 - Compact 4 Channel Car Amplifier 1240W

The JBL Stage GT 60041 is a class-D amplifier that is suitable for versatile configurations in your vehicle. Whether it is four speakers or a combination with a subwoofer: this amplifier delivers reliable power, adjustable filters and compact installation.

KEY SPECIFICATIONS

• Maximum power: 1240W peak
• RMS power: 90W x 4 @ 2 ohm / 65W x 4 @ 4 ohm / 180W x 2 @ 4 ohm (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total Harmonic Distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
• Adjustable bass EQ: 0–12dB at 45Hz

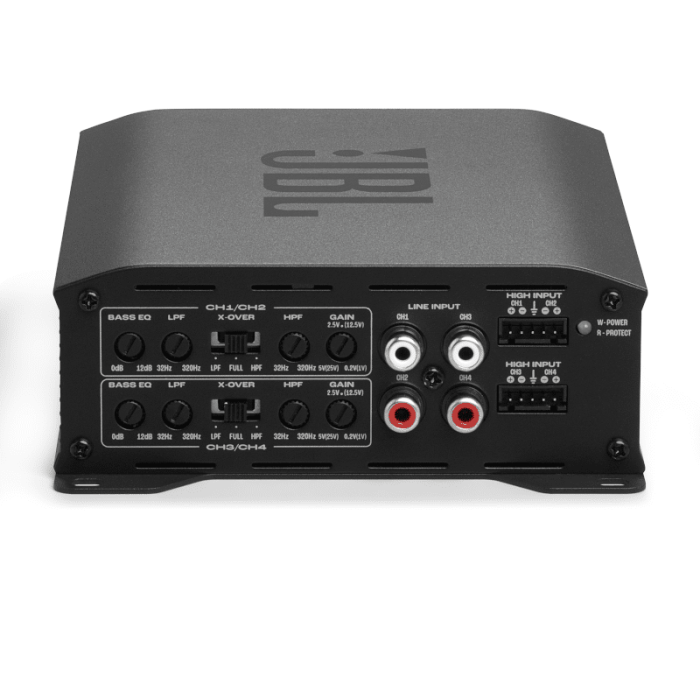

• High/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over/under voltage and overheating
• Supply voltage: 9V – 16V

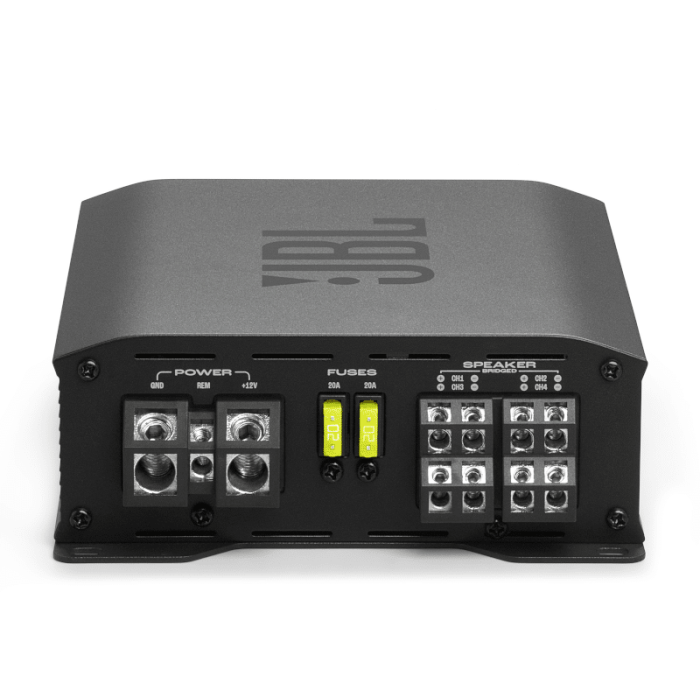

• Fuses: 2x 20A

WHAT'S IN THE BOX?

• 1x JBL Stage GT 60041 amplifier

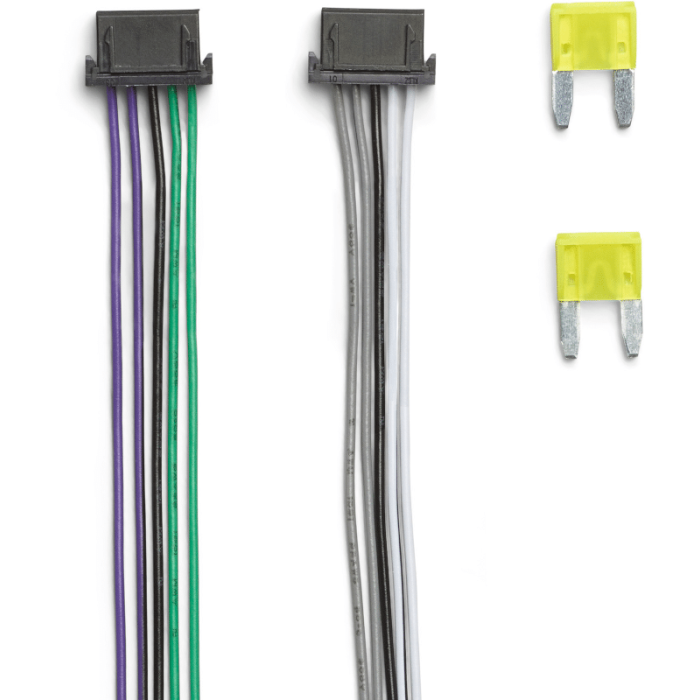

• 2x Spare fuse
• 2x High-level input cable
• 4x Mounting screw with washer
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety Instruction
