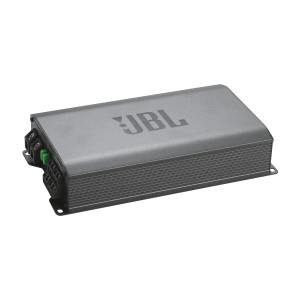

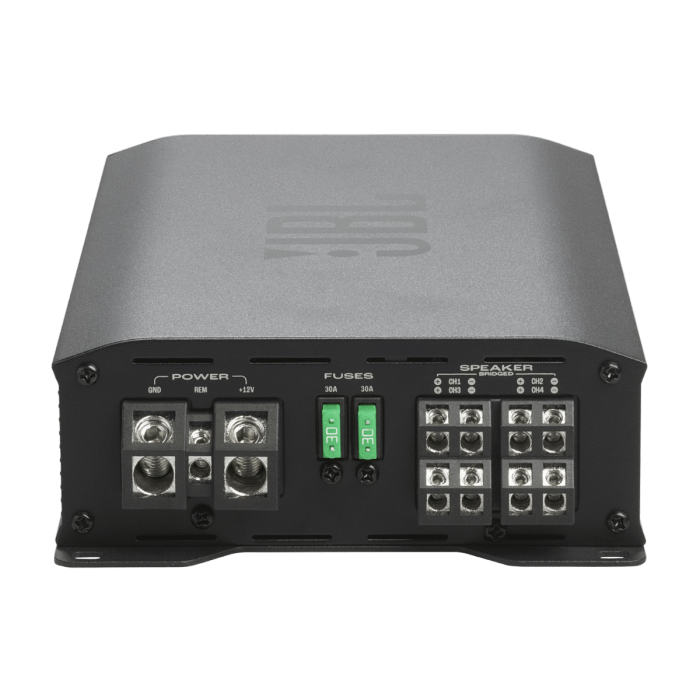

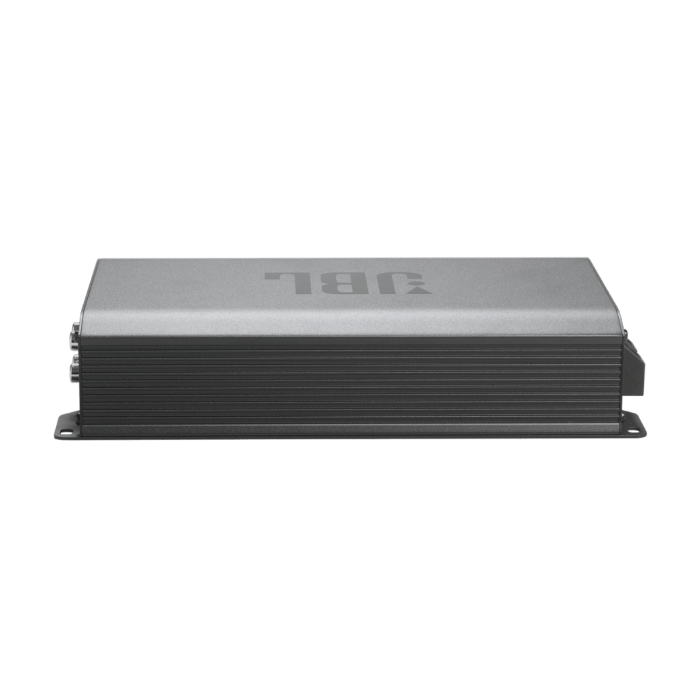

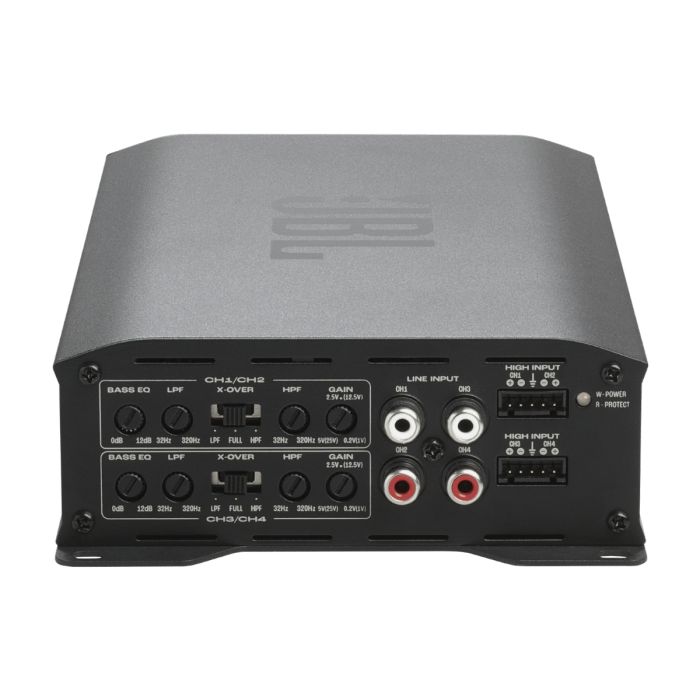

JBL STAGE GT90041 - 4-Channel Car Amplifier Speaker Amp 1480W

The JBL Stage GT 90041 is a powerful and versatile 4-channel amplifier. Thanks to its bridge options, it is suitable for both complete speaker setups and subwoofer use. You get full control over the sound via adjustable filters and bass boost. Compact, reliable and ready for any system.

KEY SPECIFICATIONS

• Maximum power: 1480W peak
• RMS power: 130W x 4 @ 2 ohm / 90W x 4 @ 4 ohm / 260W x 2 @ 4 ohm (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total Harmonic Distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
• Adjustable bass EQ: 0–12dB at 45Hz
• High/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over/under voltage and overheating
• Supply voltage: 9V – 16V
• Fuses: 2x 30A

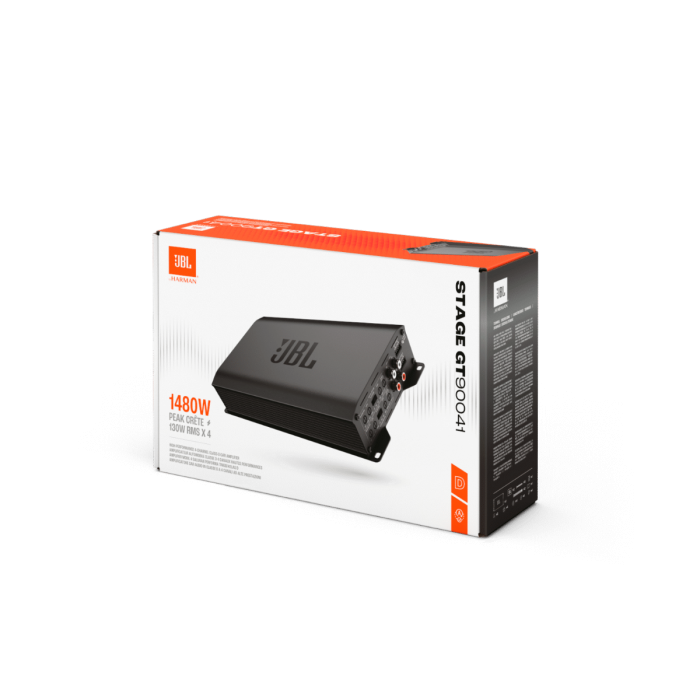

WHAT'S IN THE BOX?

• 1x JBL Stage GT 90041 amplifier
• 2x Spare fuse

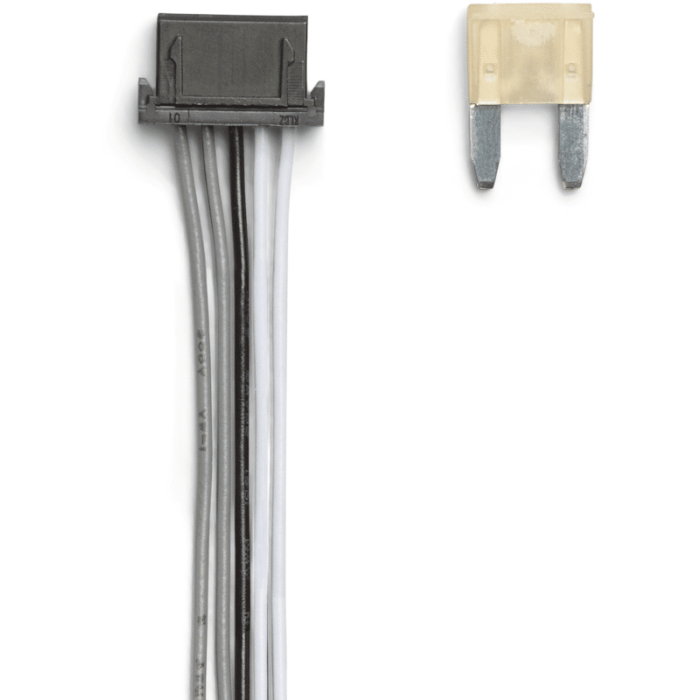

• 2x High-level input cable
• 4x Mounting screw with washer
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety Instruction
