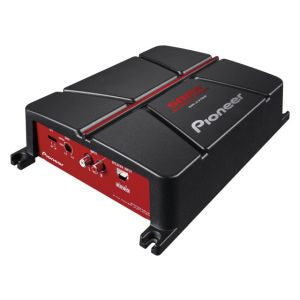

Pioneer GM-A3702 - 2/1 Channel Bridgeable Amplifier 500W

Designed to enhance your in-car audio experience, the powerful GM-A3702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.

The GM-A3702 offers support for 2 Ohm and 4 Ohm speakers, and can produce up to 500 W of power when bridged

FEATURES
Load impedance capability  2-8 ohm allowable (Stereo)
Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Distortion < 0.05 %
S/N ratio > 95 dB
LPF 80 Hz (-12 dB/oct)
Chassis size (W x H x D)238(W) x 60(H) x 180(D)
Unit weight1.4
Speaker Terminals Screw-type
Maximum power input 500W (Bridged) 2 x 170W (4 Ω) or 2 x 250 W (2 Ω)
CEA 2006 Power
Continuous power output  2 x 60W (4 Ω) or 1 x 190W (4Ω bridged) or 2 x 95 W (2 Ω)
