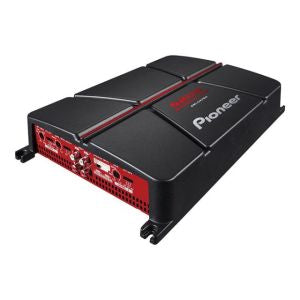

Pioneer GM-A5702 - 2-Channel Bridgeable Amplifier With Bass Boost

Specifications:

• Number of Channels 2
• Amplifer Class  Class AB
• Maximum Power Output  1000W
• Maximum Power Output at 2 Ohms  500W x 2
• Maximum Power Output at 4 Ohms  300W x 2
• Maximum Power Output - Bridged at 4 Ohms  1000W
• Nominal Power (RMS) Output at 2 Ohms 240W x 2
• Nominal Power (RMS) Output at 4 Ohms 150W x 2
• Nominal Power (RMS) Output - Bridged at 4 Ohms  480W x 1
• Frequency Response  10Hz ~ 70kHz (+0dB , -3dB)
• Total Harmonic Distortion (THD)    <0.05% ( 10W, 1kHz)
• Signal-to-Noise (SN) Ratio    > 96dB
• Fuse Rating  30Ax2
• RCA Inputs 2-CH
• Speaker Level Inputs
• Crossover Type  Adjustable LPF
• Low-Pass Crossover Frequency  40-500 Hz
• Low Pass Slope (dB/octave)  -12db/oct
• Bass Boost Frequency  50Hz
• Bass Boost Level  0/6/12dB
• Automatic Signal Sensing and Turn-On
• Hi-Volt Input Level Control 0/6/12dB
• Terminal Type  Screw
• Load Impedance Allowance (Ohm) 2 to 4
• Bridgeable
• Protection Control System
• Dimensions (WxHxD)(inches)  356(W) X 60(H) X 215(D) mm
• Warranty  1 Year
