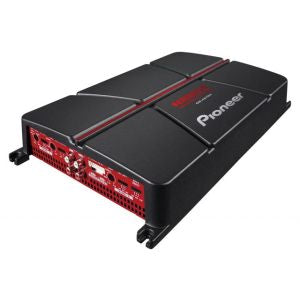

Pioneer GM-A6704 - 4-Channel Bridgeable Amplifier (1000W)

Give into your deepest desire for power. Work it out how you want with the bridgeable amps. Just consider the consequences whatever you do: pure and clean, distortion-free power.

The GM-A6704 will ignite your system, but keep the heat under wraps. These amps are techno wonders and will rumble you to the core.

• HPF 40-500Hz (-12 dB/oct)
• Speaker Terminals Screw-type
• Speaker Input Level 3 - 26 V
• Max. current consumption 31A
• Chassis size (W x H x D) 356(W) X 60(H) X 215(D)
• Unit weight 2.2
• Maximum power input 1000W (Bridged) or 4 x 170W (4 Ω) or 4 x 250 W (2 Ω)
• 4-channel
• CEA 2006 Power 4 x 60W (4 Ω)
• Continuous power output 4 x 60W (4 Ω) or 4 x 95W (2Ω) or 2 x 190 W (4Ω bridged)
• Variable LPF
• Load impedance capability  2-8 ohm allowable (stereo)
• Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
• Distortion < 0.05 %
• S/N ratio > 95 dB
• Bass Boost 50Hz; 0-12dB
• LPF  40-500Hz (-12 dB/oct)
• Connections
• High Voltage Output 300 mV - 6.5 V
• Audio
• Variable HPF
