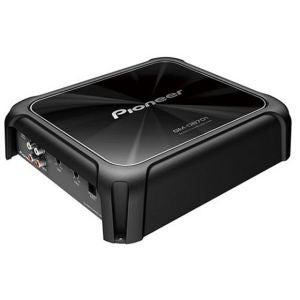

Pioneer GM-D8701 - Mono D Class Bass Car Amplifier 1600W
Pioneer GM-D8701 - Mono D Class Bass Car Amplifier 1600W
Regular price
£149.99 GBP
Regular price
Sale price
£149.99 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
COMPACT POWER
An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.
TURN UP THE BASS

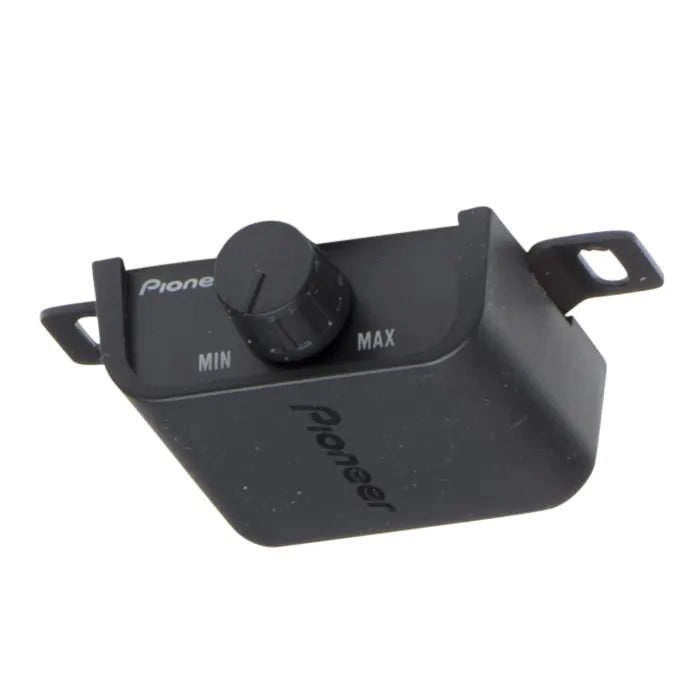

Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.
VARIABLE LPF
Adjust your low-pass filter frequency for greater audio system flexibility
Specifications
- Maximum Output Power: 1 x 600 W (4Ω) or 1 x 1000 W (2Ω) or 1 x 1600 W (1Ω)
- RMS Power: 1 x 300 W RMS (4Ω) or 1 x 500 W RMS (2Ω) or 1 x 800 W RMS (1Ω)
- Frequency response 10 - 240 Hz
- Distortion 10 W, 100 Hz ref. < 0.5 %
- S/N ratio > 100 dB
- Bass Boost: Remote Control, Frequency 50Hz, Level 0-18dB
- LPF 40 - 240 Hz (-12 dB/oct)

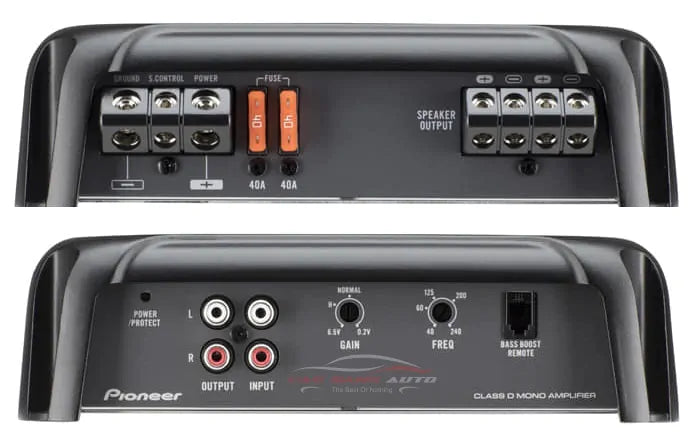

- RCA Input terminals
- Speaker Terminals Block-type
- Speaker line input sensor Turn-on sensor
- Input level control RCA (0.2V - 6.5V), SP (0.8V - 16V)
- Max. current consumption (A/4Ω) 24 A
- Chassis size (W x H x D) 265 x 60 x 200 mm
- Unit weight 2.7 kg
