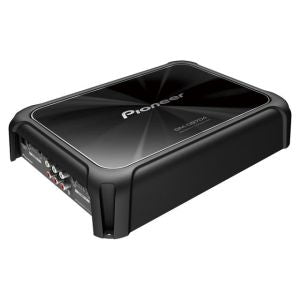

Pioneer GM-D9704 - 4 Channel Class D Bridgeable Amplifier 1600W

Specifications

• Number of channels 4
• Max. Wattage 4 x 260W (4Ω)
• Max. Wattage 4 x 400W (2Ω)
• Max. Wattage Bridged 2 x 800W (4Ω)
• Frequency Response 10Hz - 50 kHz
• Wattage RMS (4Ω <=1% THD+N) 4 x 130w
• Wattage RMS (2Ω <=1% THD+N) 4 x 200w
• Wattage RMS Bridged(4Ω) 2 x 400w
• Total Harmonic Distortion (1 kHz, 4Ω) <0.05%
• Signal-to-Noise ration (IHF-A Weighted) >95dB

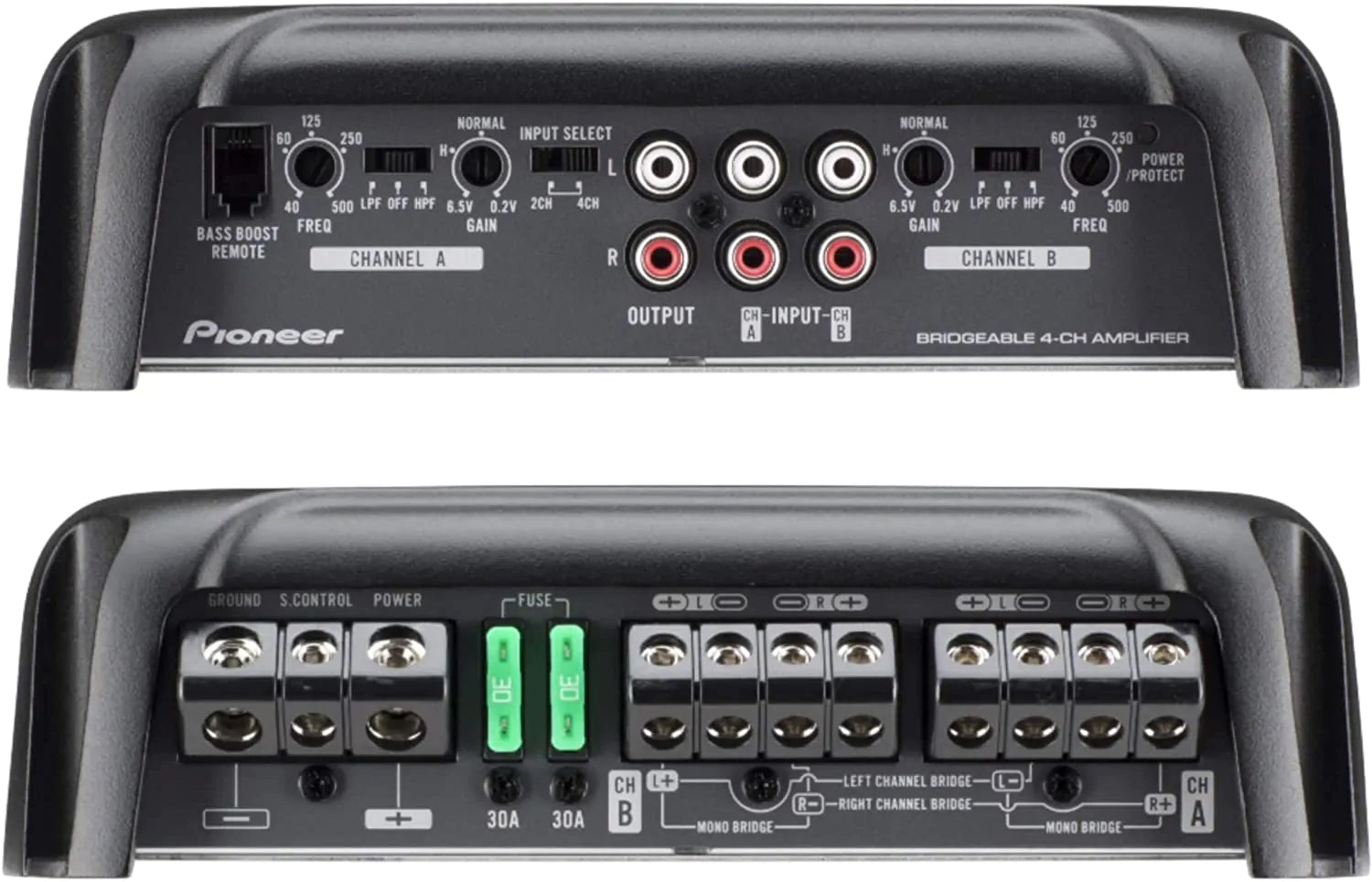

• RCA Outputs (Pass-Through) 2 Ch
• Speaker Level Input 4 Ch
• Automatic Signal Sensing & Turn On
• Crossover Type Variable HPF / Variable LPF
• Crossover Frequency 40Hz to 500 Hz
• Dimensions 302 x 215 x 60 (mm)
