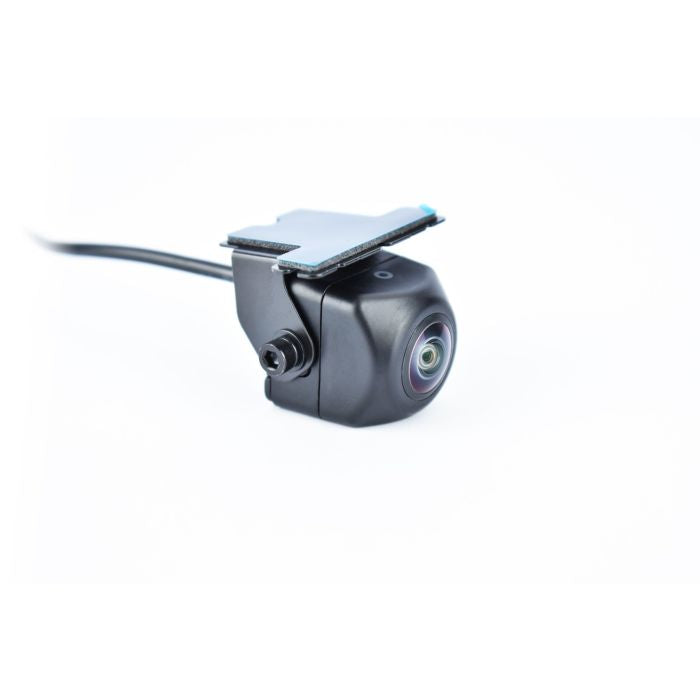

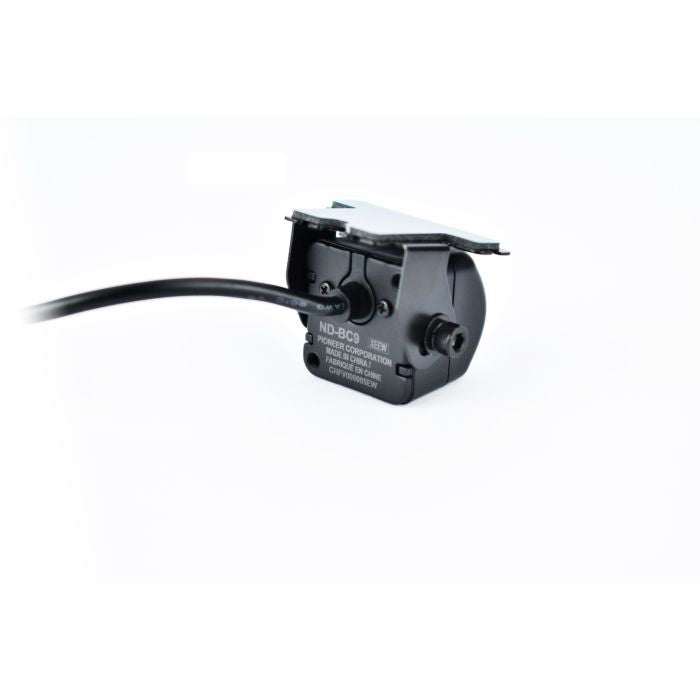

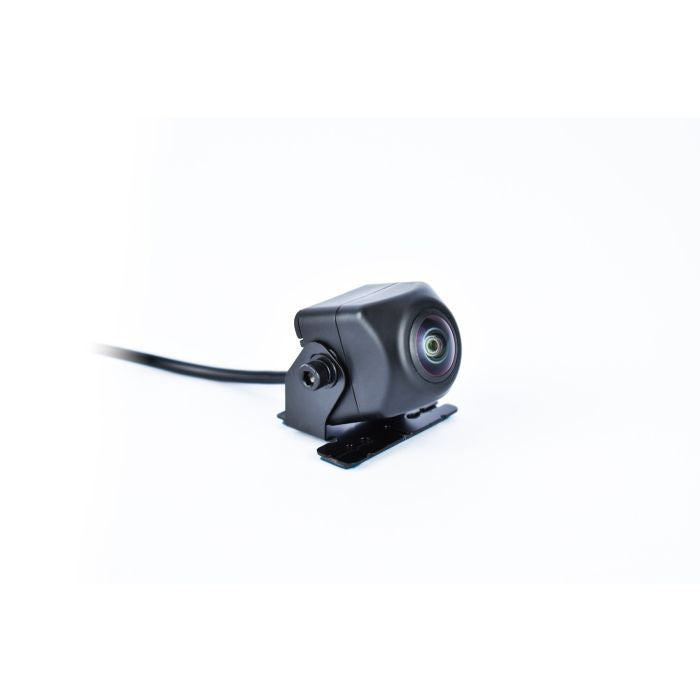

Pioneer ND-BC9 - Universal Reverse Camera

This high-precision, high-quality, NTSC universal camera giving you a full view of everything the rear-view mirror fails to show. The high-sensitivity camera has a 159° wide viewing angle and the embedded CMOS sensor automatically adjusts brightness in light or dark driving conditions. The camera even eliminates over-exposed images by removing the white streaks as direct sunlight enters the lens.

• Compatible with any CVBS rear camera input.
• A 10-metre long (3 m + 7 m) cable is included in the package.
• Pioneer's ND-BC9 in E-mark certified.

Specifications

• IP67Pioneer products that show the IP67 rating are dust and water resistant, offering protection against dust ingress and protection against short periods of immersion in water. (Maximum 30 minutes at 1 metre depth).
• Dimensions Camera: 23.8 mm x 23.8 mm x 25.5 mm
• Weight Camera: 188 g
• Sensor Type: 1/4" CMOS
• Viewing Angle: Horizontal: 159° / Vertical: 117°
• Video System: NTSC
• Pixels: 0.3 M - 310.000p 350 TV lines
• Mirrored Image: Yes
• Connection Type: RCA
• Rating: IP67
• Power Supply: 14.4 V DC (10.8 V to 15.1 V)
• Current Consumption: <100 mA " 14.4 V
• Operating Temperature: -30° to +70° Celsius
• Cable: 10 m (3 m + 7 m)
• Certification: E-Mark certified
