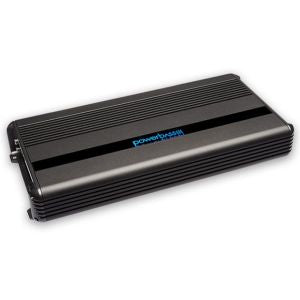

Powerbass XMA-1205D - Monoblock Class D Amplifier 1200 Watts

Name: Powerbass XMA-1205D - Monoblock Class D Amplifier 1200 Watts
Brand: Car Technology and Performance
SKU: XMA-1205D
Price: 529.99 GBP
Availability: InStock

£529.99 GBP

Sale Sold out

Shipping calculated at checkout.

Quantity

1,200 Watt High Efficiency Class D Design
1-OHM Stable Mono Block Amplifier
Ultra Low Current Draw
Double Sided Copper Plated PCB
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
Variable Subsonic Filter
High Current Voltage Ripple Rejection Circuitry
Balanced RCA Inputs
Auto Turn On/Off
Remote Soft Delay Turn On/Off Circuit
40 Click Variable Low Pass Electronic Crossover
40 Click Variable Frequency/18dB Bass Boost EQ
Variable Gain Control
Wired Secondary Remote Gain Control Included
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)
Selectable Subwoofer EQ: 0 - 18 dB @ 40 Hz - 100 Hz,
Variable Subsonic Freq: 10 Hz - 50 Hz
Inputs: RCA (speaker level compatible)
Subwoofer Frequency Range: 10Hz - 250 Hz
Power Supply: Unregulated PWM
Height: 2.0"
Width: 7.1"
Depth: 14.7"
4-ohm Mono Power: 500 watts x 1
4-ohm Power: 500 watts x 1
1-ohm Mono Power: 1200 watts x 1
2-ohm Power: 800 watts x 1
Subwoofer EQ Frequency: 40 Hz- 100 Hz
Variable Subwoofer EQ: 0 - 18 dB
Low-Pass Crossover Freq: 20 Hz - 250 Hz
High-Pass Crossover Freq: N/A
Peak Power: 2400 watts
Crossover Slope: 24 dB
Dimensions (in Inches): 14.7" x 7.1" x 2.0"
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >100 dB
Total Harmonic Distortion: 0.4% at Rated Power
Strapped Output Power @ 2ohms: 2400 watts x 1
Output Power (14.4 V) @ 4 ohm: 500 watts x 1
Output Power (14.4 V) @ 2 ohm: 800 watts x 1
Output Power (14.4 V) @ 1 ohm: 1200 watts x 1
Channels (mono): 1
Frequency Response: 10 Hz - 300 Hz
