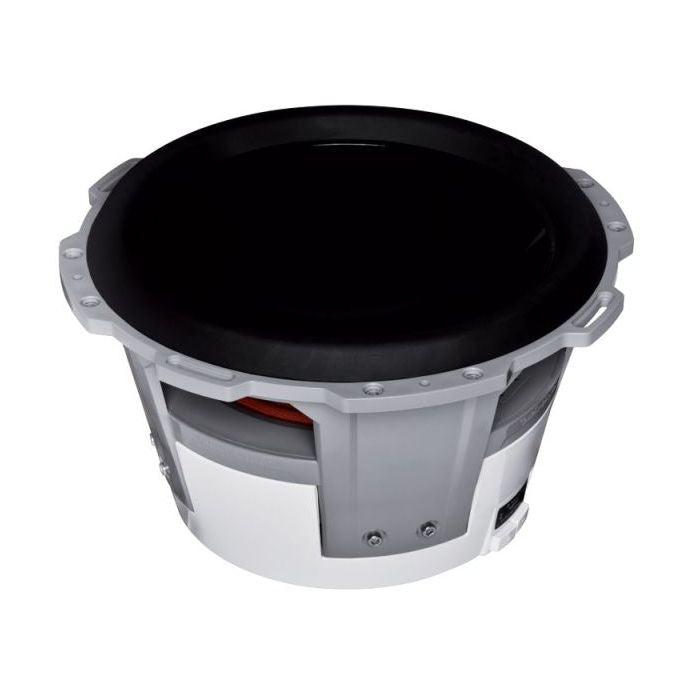

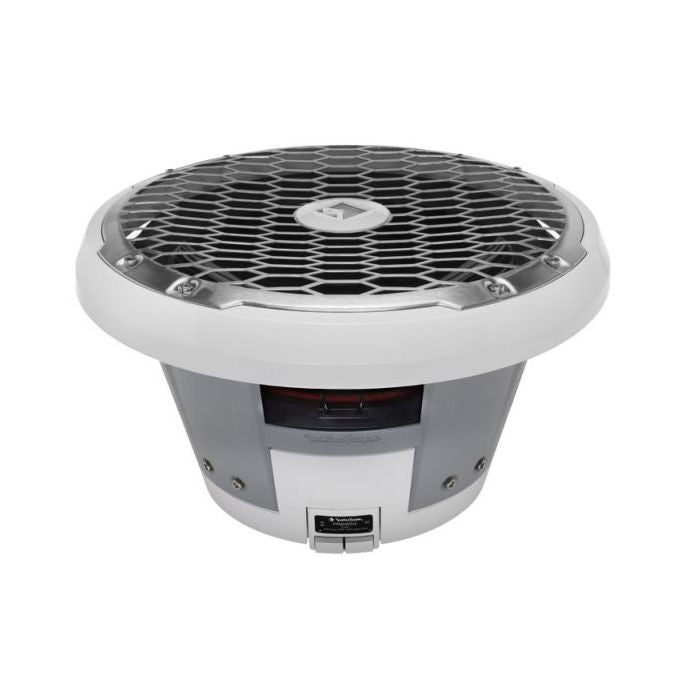

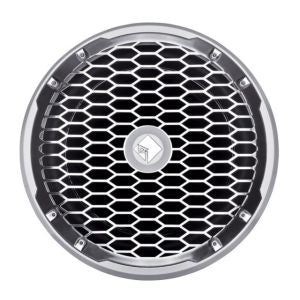

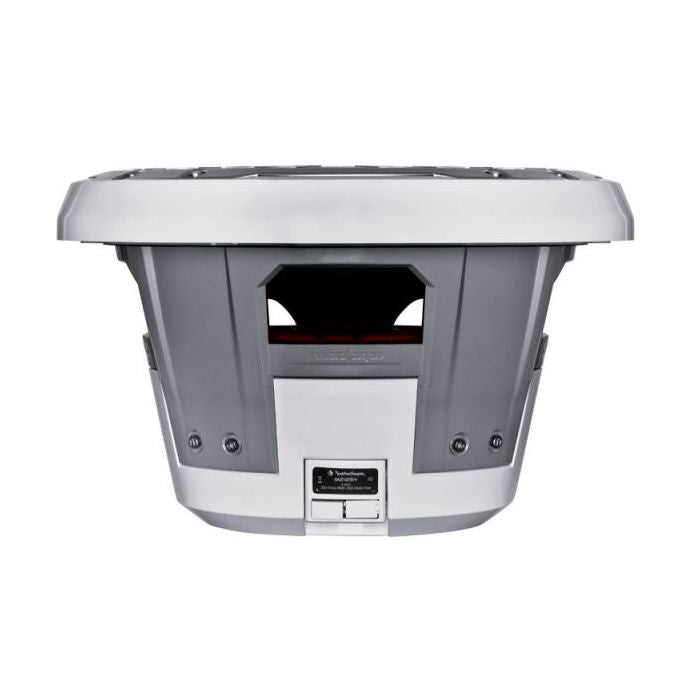

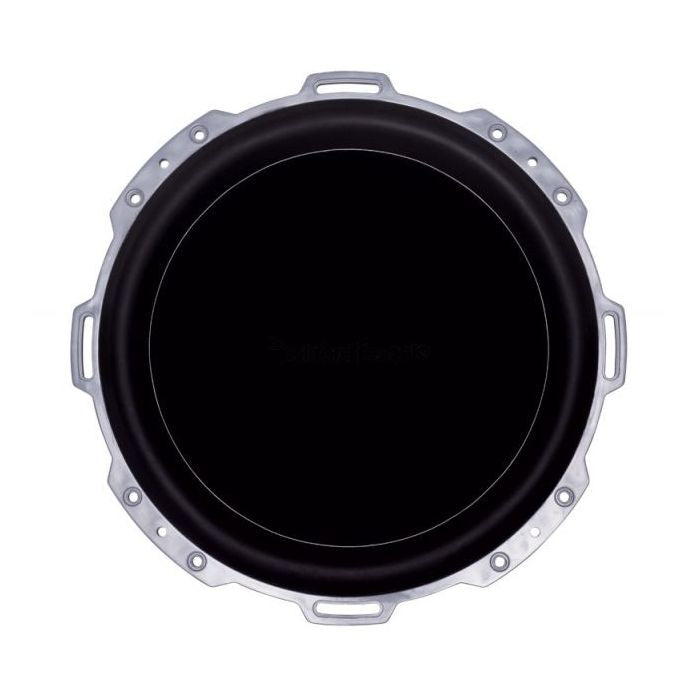

The PM212S4 is a white 12” subwoofer designed for marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.
Specifications:
CEA-2031 Compliant: CEA-2031 Guidelines
Size: 12"
Nominal Impedance: 4-Ohm
Power Handling (Watts RMS): 300 Watts RMS
600 Watts Max
Voice Coil Diameter: 2" aluminum
Magnet Weight (oz): 2.65 oz. (93.6 Kg)
Speaker Connector: Dual 8 AWG compression
Fs (Hz): 25.5
Re (Ohms): 3.10
Le (mH): 0.3
Qms: 9.00
Qes: 0.55
Qts: 0.52
Vas (Liters): 44.3
Sd (cm2): 510
SPL (dB @ 1w/1m): 87
Xmax (mm): 12
Woofer Displacement (in): 0.258 cu. ft. (7.3 Liters)
