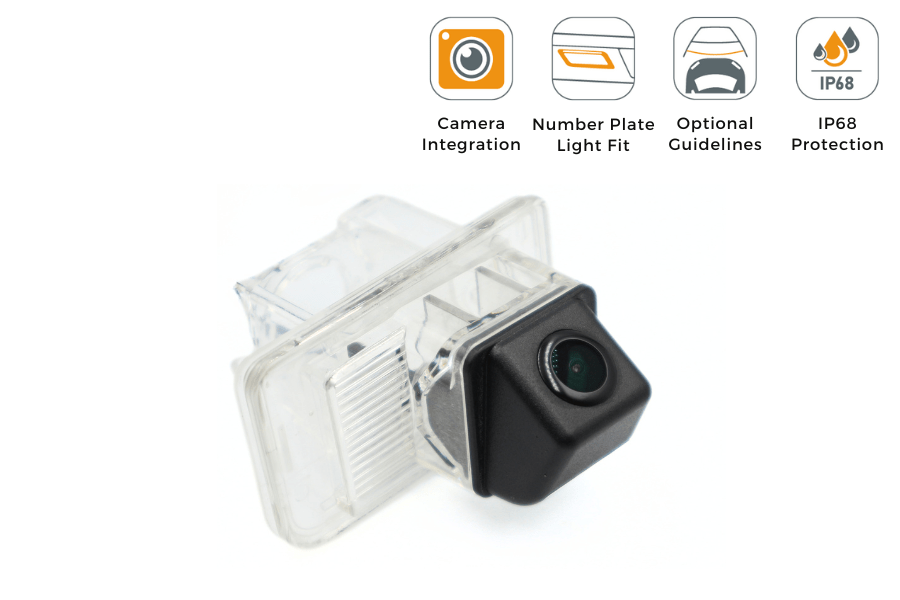

Suzuki Swift Reverse View Rear Number Plate Light Camera (NTSC)

Special rear view camera specially designed for Suzuki Swift (2015 Onwards) car models.

This camera secures into the place of the rear number plate light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

This camera is also equipped with optional dynamic parking guidelines which can be enabled or disabled.

Camera features:

• Camera for 2016 Suzuki Swift
• Sensor 1/3 PC3089, PC4089 CMOS
• Resolution: 720 x 480
• TV line 480TVL
• View angle: Horizontal 110° ( ± 5°) , Diagonal 170° ( ± 5°)
• connector 4PIN BMW connector
• Min illumination: 0.1Lux
• Waterproof IP67
• Power voltage: 12V
• Power Consumption max. 60mA
• Operation Temp.: -30℃~+80℃
• White Balance AUTO
• BLC AUTO
• Day/Night AUTO

Installation Notes

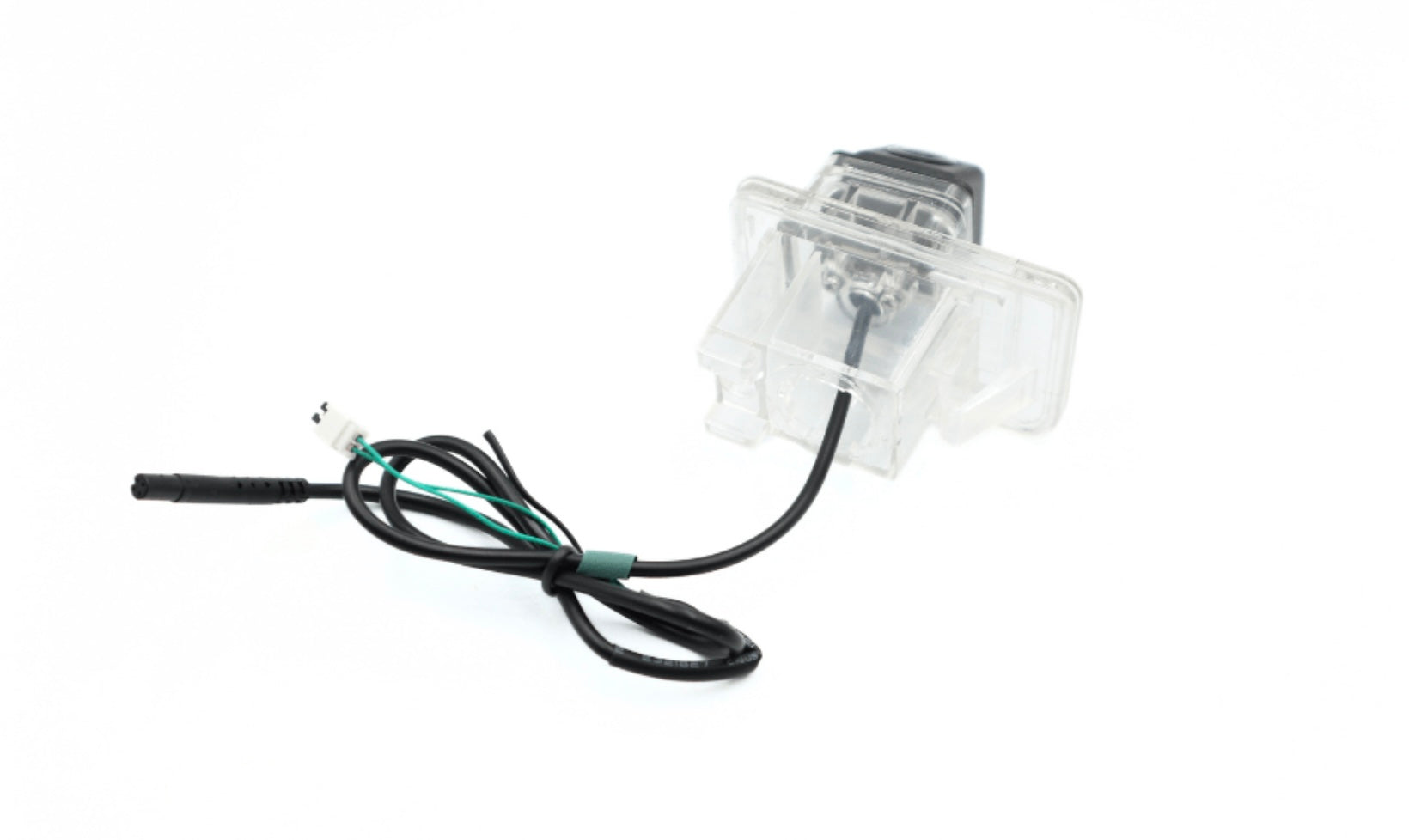

• To disable parking guidelines, join the 2 Green Wires on the camera lead
• Additional adapters/ interfaces will be required to connect to an original factory fitted system/ screen.
• Do not power the camera from the reversing lights

PLEASE NOTE: To disable parking guidelines, cut the blue wire on the camera lead

Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes, such as saloon, estate, coupe, may require different number plate cameras. Please check that the image of the camera matches the existing number plate light on the vehicle.

Additional adapters/ interfaces may be required to connect to an original factory fitted system/ screen.
