Car Technology and Performance

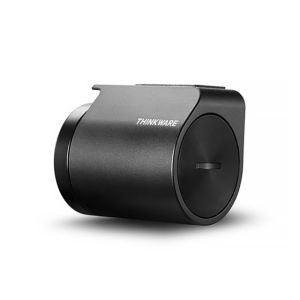

Thinkware TWA-RAD - Radar Module For U1000

Thinkware TWA-RAD - Radar Module For U1000

Regular price £74.99 GBP
Regular price Sale price £74.99 GBP
Sale Sold out
Shipping calculated at checkout.

TWA-RAD

can be used on Energy Saving Parking Mode 2.0 (ESP 2.0) which is supported on the U1000 and X1000 Dash Cams. ESP 1.0 allows Thinkware Dash Cams to record more time, but 1.0 only records after an impact is detected, so there is no footage before the incident. When RADAR detects motion, it will wake the Dash Cam for a short time. If there is an impact during this time, RADAR allows the Dash Cam to record 20 seconds of footage, including before an impact is detected.

 Pair the Radar Module with the U1000 to extend its parking surveillance duration while reducing power consumption when set to Energy Saving Mode 2.0.

The radar will detect motion and allow the dash cam to prepare to save an event clip. If an impact is detected, a 20 second video (10 seconds before and 10 seconds after the impact) is saved in a dedicated folder on the SD card.

When no impacts are detected, the U1000 does not save the footage and resumes Energy Saving Mode 2.0.

**Parking Surveillance Mode requires hardwiring cable installation.

What’s In The Box
  • · Radar Module
  • · Installation Guide
Specifications
  • · Detection Distance Range : approx. 7m
  • · Detection Horizontal Angle Range : approx. 80°
  • · Detection Vertical Angle Range : approx. 35°
  • · Dimensions (WxDxH) : 48 x 36 x 42mm (1.89 x 1.42 x 1.65 in)
  • · Weight : 57.4g (0.126 lb)
  • · Operating Temperature : -30℃~75℃
  • **Sedan or greater sized vehicle can be detected.
    People passing by will not be detected.
  • **Not every object is guaranteed to be detected.
  • **Due to the nature of Ultra-high Frequency radiation, the distance and degree of detection can be different.
  • **Metal objects may cause the radar to not detect motion properly.
  • **Install Radar Module as far away as possible from metal parts of the rearview mirror/ADAS sensors.
