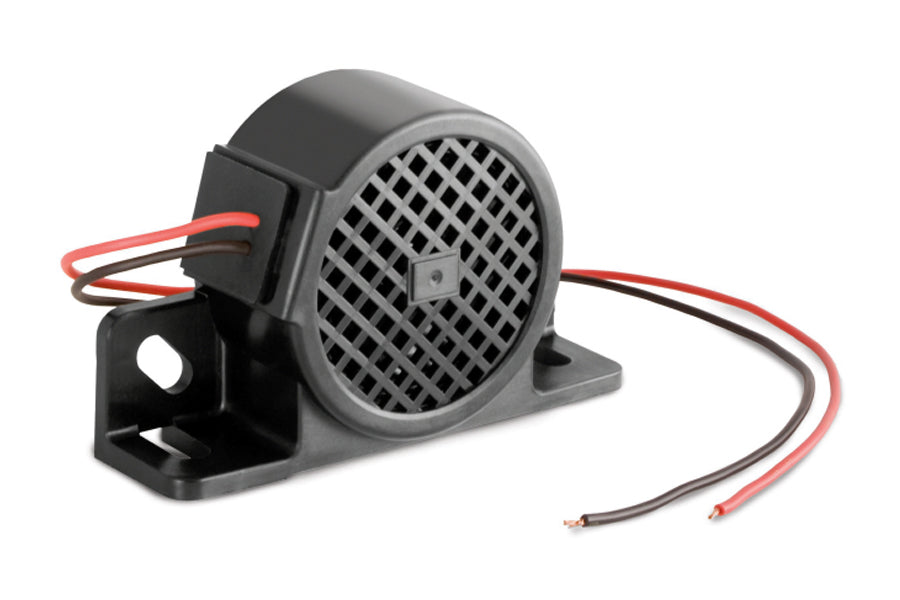

Tonal Backup Reversing Alarm (12V-24V) Commercial Vehicle/Truck/Van

Introducing our cutting-edge Reverse Backup Alarm, expertly designed for commercial vehicles, vans, and trucks.
This essential safety device operates seamlessly between 10 and 35 volts, making it compatible with both 12V and 24V systems.

With a powerful tone sounding at 80 beeps per minute, reaching an impressive volume of 87-97 decibels, it ensures pedestrians are alerted of a reversing vehicle while providing vital feedback to the driver.

Safety is paramount, and our Reverse Backup Alarm enhances awareness in busy environments, helping to prevent accidents and promote a safer working environment. Equip your fleet with this reliable safety feature today!

Reverse backup alarm, designed for commercial vehicles, vans and trucks.

Operate between 10 and 35 volts to work with both 12v and 24v vehicles.

Tone sounds at 80 beeps per minute at 87-97 decibels to warn pedestrians of a reversing vehicle or to alert the driver that they are in reverse.

Connects to vehicle chassis ground and a switched reverse feed (between 10v and 35v) to activate the alarm when the vehicle is in reverse and backing up.

PLEASE NOTE: This is not a retention interface or a substitute for parking sensors. The volume and frequency of the beeps are set and cannot be changed.

Specifications:

• Voltage: 10v minimum , 35v maximum
• Operating Temperature: -20 to 80 degrees Celsius
• Operating Frequency: 39.3 to 40.7 KHz
• Sound Volume: 87 - 97 dB (+/- 4dB)
• Sound Frequency: 1.6 KHz
• Tone Repetition: 80 per minute (+/- 5)
• Size: 105x62x32mm - Mounting hole centre spacing 75-85mm
• Water Resistance: IP69K

Kit Includes:

1x Tonal backup alarm

Connect red wire to reverse output, black to chassis ground.
