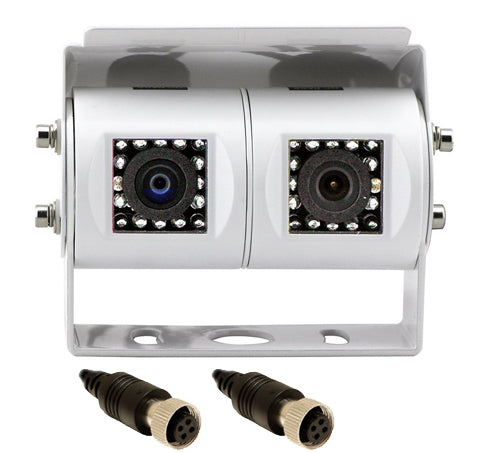

White Dual Lens Rear View Heavy Duty Camera with Adjustable Bracket For Vans / Motorhomes (NTSC)

Universal DUAL LENS heavy duty White rear camera suitable for small trucks and Motorhomes with adjustable bracket and sunshade.

• Waterproof to IP69 standard
• LED night vision  12volt
• SONY CCD 420TVL  mirrored lens
• NTSC standard
•  2 x 4 PIN connector

These cameras do not come with cable to extend to an aftermarket screen/ monitor. You will need to purchase a 5m, 10m or 15m cable set separately

Make sure you choose the correct cable to suit the Monitor you are connecting the camera to:

This camera will Plug and Play with any 4PIN series Monitor such as our part number CVC-M-500 or CVC-M-709.

If you are using an aftermarket Monitor with RCA Phono video connections then you will need to use the adapter CVC-CB-09 which will convert the 4PIN female connector to phono.

Specifications

• Sensor: Sharp CCD
• Resolution:
  • N: 510(H)x429(V) Pixels
  • P: 582(H)x510(V)Pixels
• TV Line: 420TV Line
• Min Illumination: 0.1 Lux (LED On)
• IR led: 15pcs/15pcs
• Night Vision Distance: 45FT
• Waterproof: IP69
• View Angle 170 Degree / 120 Degree
• Power Voltage: 12V
• Microphone: Optional
• Mirror/Normal: Optional
• Color: Black
• Operation Temp: -20 degreeC + 75 degree C
